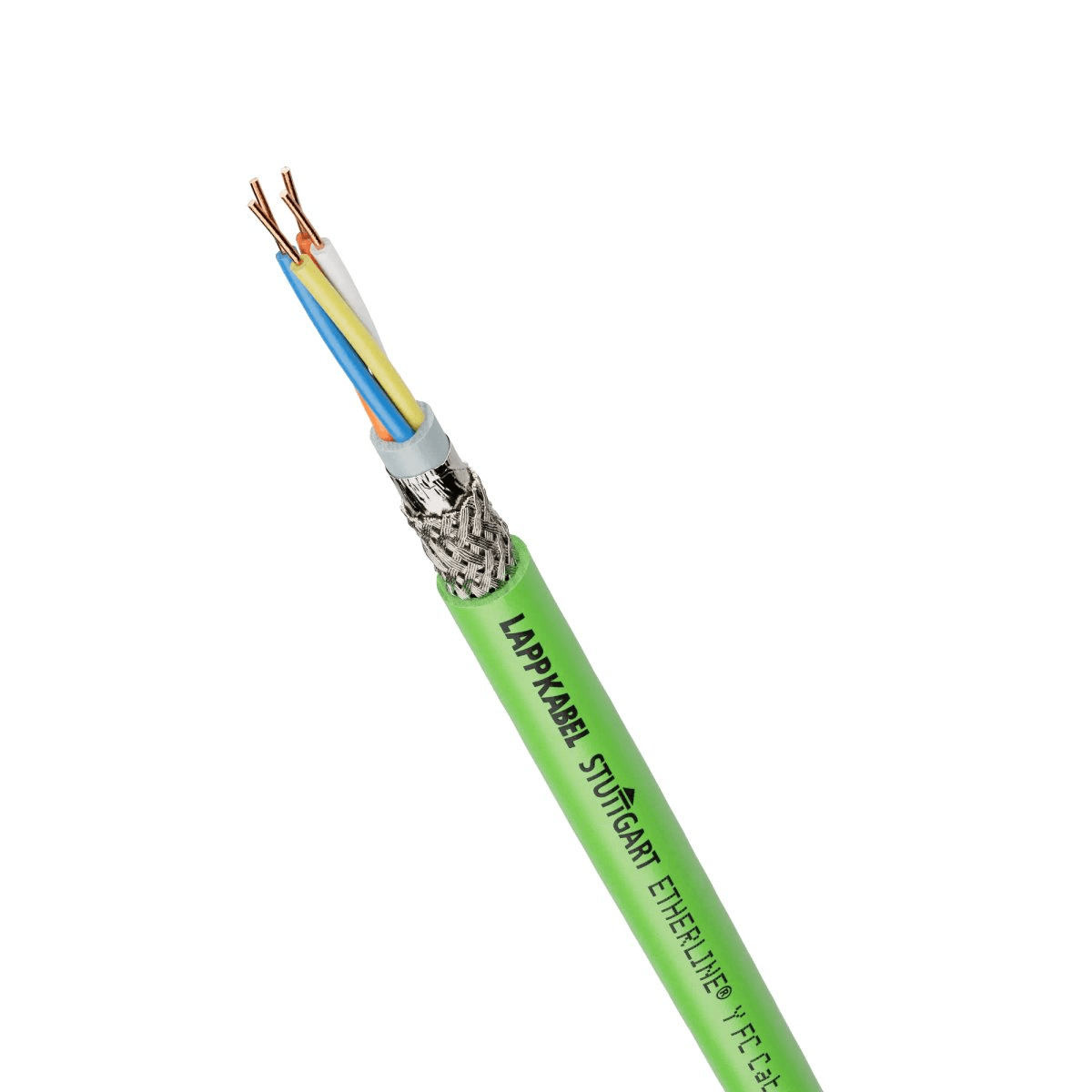

LAPP Group 2170893, ETHERLINE Flexible Robotic Cable 22AWG 600V PVC

Part Number: 2170893

LAPP Group 2170893 ETHERLINE® flexible robotic Cable is built for reliable industrial networking in stationary applications and field/cell level installations. It supports EtherCAT, EtherNet/IP, PoE, and PROFINET, with transmission rates up to 10/100 Mbit/sec for PLCs, sensors, and other network devices. This 22 AWG, 2 pair, Shielded design features Stranded Conductors and a green Jacket for durable performance in dry and damp rooms. Engineered for demanding environments, it is flame retardant, highly oil-resistant, and abrasion-resistant, with a Temperature Range of -40°F to +176°F -40°C to +80°C.

Manufacturer & Series:

• Manufacturer: LAPP
• Manufacturer Part Number: 2170893
• Series: ETHERLINE®

Protocols & Performance:

• Protocols: EtherCAT, EtherNet/IP, PoE, PROFINET
• PoE (Power Over Ethernet): Yes
• Application: Stationary applications; industrial field and cell level networking; PLCs sensors and other network devices; dry and damp rooms; transmission rates up to 10/100 Mbit/sec

Conductors:

• AWG/Gauge: 22
• Number of Pairs: 2 pair
• Conductor Type: Stranded
• Conductor Material: Bare Copper
• Conductor Size: 0.25MM SQUARED
• Conductor Color: white yellow blue orange
• Earth/Ground Wires: No

Shielding:

• Shielding: Foil Braid
• Shield: Shielded
• Shield Type: Copper Wire, Unishield

Jacket, Dimensions & Handling:

• Jacket Material: PU-POLYURETHANE
• Jacket Color: Green
• Nominal OD (MM): 6.5
• Min Bend Radius: 10x Cable Diameter
• Weight LBS/MFT: 47

Insulation & Environmental:

• Insulation Material: Polyethylene
• Temperature: -40°F to +176°F -40°C to +80°C
• Environmental: Flame retardant Highly oil-resistant Abrasion-resistant

Voltage:

• Voltage Range: 250V
