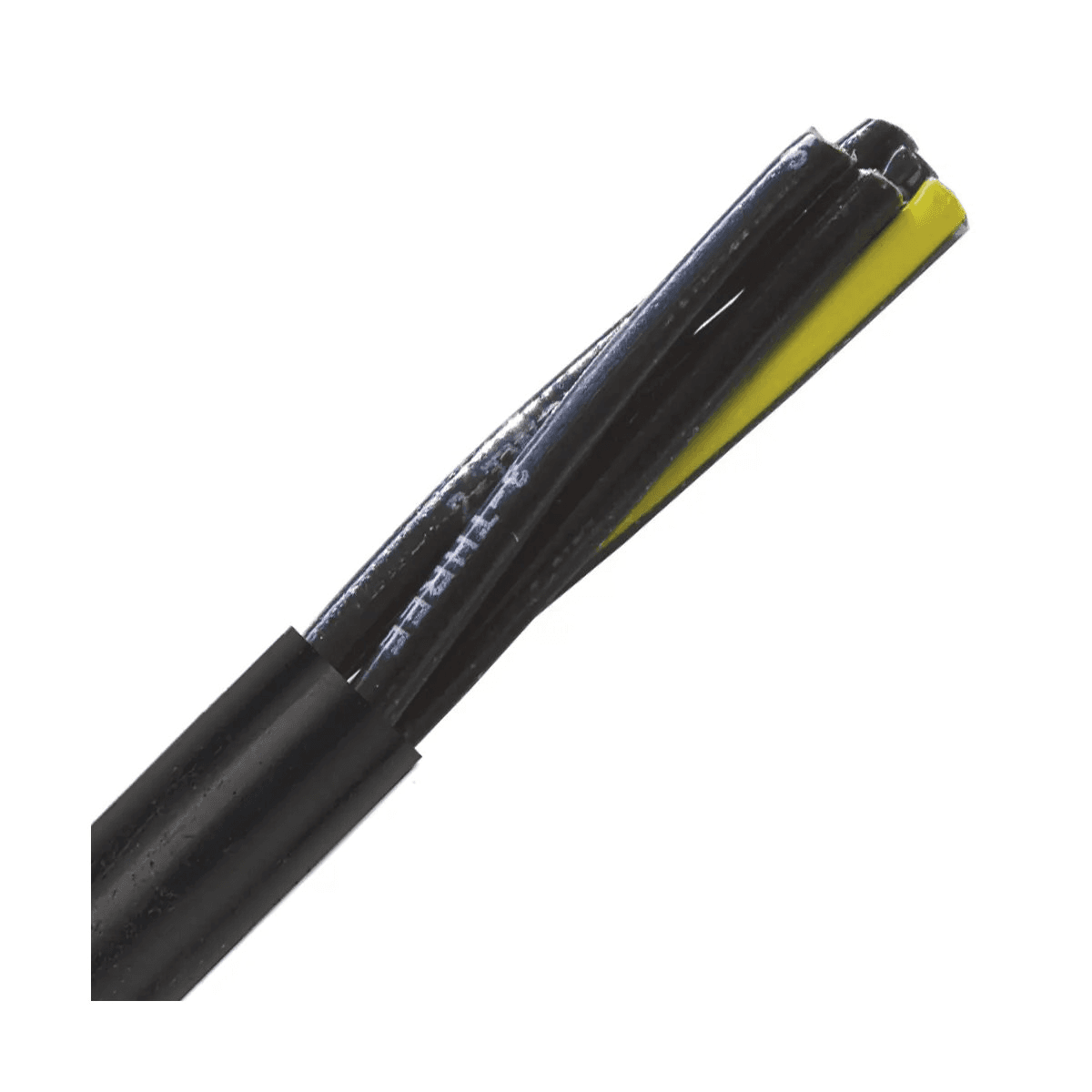

LAPP Group 221403, Flexible Tray Cable 3C 14 AWG Unshielded PVC Jacket

Part Number: 221403

LAPP Group 221403 is a flexible, Unshielded tray Cable built for demanding industrial environments, including industrial plant expansions, automotive plants, and tray wiring. It features 3 Conductors of 14 AWG Stranded Bare Copper with PVC/Nylon Insulation and a black thermoplastic polymer Jacket designed for flexibility and easier pulling than standard tray cables. The Cable is rated 600V and carries tray approvals including UL ITC-ER, UL PLTC-ER, and UL TC-ER, helping reduce installation materials since No conduit is needed. It also supports UV resistant and direct burial applications, with a Temperature Range of -13°F to +194°F (-25°C to +90°C) and a dynamic Temperature Rating of -13°F to +221°F (-25°C to +105°C).

Conductor & Electrical:

• Number Of Conductors: 3
• Wire size: 14 AWG
• Conductor Material: Bare Copper
• Conductor Stranding: Stranded
• Voltage range: 600V
• Shield: Unshielded
• Attributes: Multi-Conductor

Materials & Construction:

• Insulation: PVC/Nylon
• Jacket Material: Thermoplastic Polymer
• Jacket Color: Black
• Conductor color: Black with white printing plus green/yellow ground
• Nominal OD (MM): 9.2

Temperature Ratings:

• Temperature Range: -13°F to +194°F -25°C to +90°C
• Dynamic Temperature Rating: -13°F to +221°F -25°C to +105°C

Approvals & Standards:

• Tray ratings: UL ITC-ER UL PLTC-ER UL TC-ER
• UL style / standard: UL 13 UL 1063 UL 1277 UL 1690 UL 2250

Installation & Use:

• Oil Resistant pressure extruded PVC Jacket for improved flexibility
• Easier to pull than standard tray cables to help reduce labor time
• UL TC-ER approval to help reduce material costs
• No conduit is needed
• Black numbered Conductors for easy Identification
• UV resistant and direct burial
• Application: Industrial plant expansions; automotive plants; tray wiring; anywhere VNTC® cables are used

Manufacturer Information:

• Manufacturer: LAPP
• Manufacturer part number: 221403
