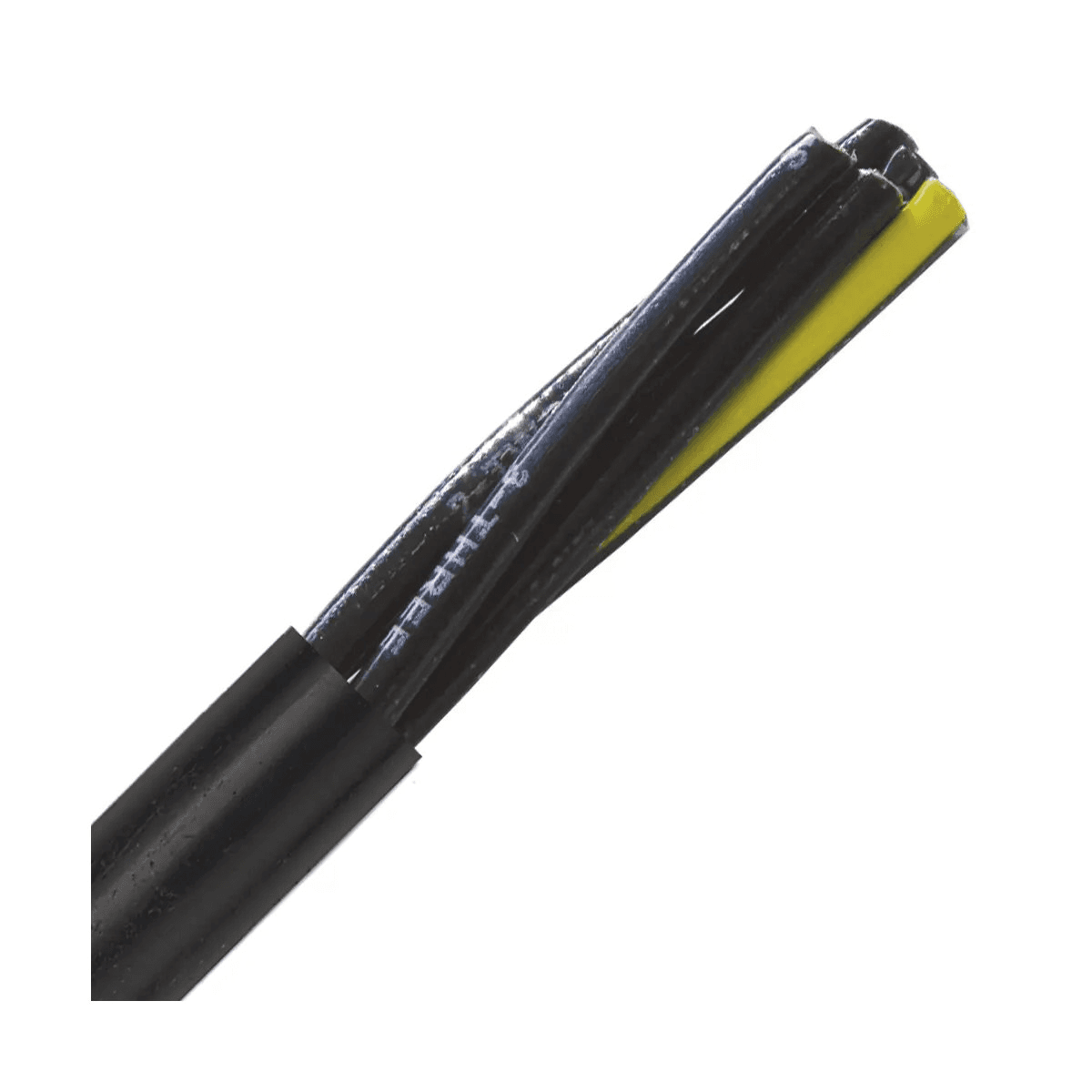

LAPP Group 221412, OLFLEX TRAY II Tray Cable 14 AWG 12C 600V

Part Number: 221412

LAPP Group 221412 OLFLEX TRAY II is a flexible, industrial-grade tray Cable designed for demanding plant environments where oil resistance and long service life matter. Built with 14 AWG Stranded Conductors and a pressure-extruded thermoplastic polymer Jacket, it pulls more easily than standard tray cables while maintaining durability. This 12-Conductor, Unshielded 600V Cable features black Conductors with white printing plus a green/yellow ground for fast, accurate Identification. It is suited for industrial plant expansions, automotive plants, tray wiring, and anywhere VNTC® cables are used, with UL ITC-ER, UL PLTC-ER, and UL TC-ER tray ratings.

Key Features:

• Oil-resistant, pressure-extruded Jacket supports flexibility and long Cable life
• Easier to pull than standard tray cables
• UL TC-ER rating supports exposed run installations (No conduit needed)
• Black Conductors with white printing plus green/yellow ground for easy Identification

Electrical & Construction:

• Manufacturer: LAPP
• Manufacturer Part Number: 221412
• Attributes: Multi-Conductor
• Conductor Size: 14 AWG
• Number Of Conductors: 12
• Conductor Stranding: Stranded
• Conductor Material: Bare Copper
• Insulation: PVC/Nylon
• Jacket Material: Thermoplastic Polymer
• Jacket Color: Black
• Conductor Color: Black with white printing plus green/yellow ground
• Shield: Unshielded
• Nominal OD (MM): 16.2
• Voltage Range: 600V

Temperature Ratings:

• Temperature Range: -13°F to +194°F -25°C to +90°C
• Dynamic Temperature Rating: -13°F to +221°F -25°C to +105°C

Approvals, Ratings & Standards:

• Tray Ratings: UL ITC-ER UL PLTC-ER UL TC-ER
• UL Style / Standard: UL 13 UL 1063 UL 1277 UL 1690 UL 2250
• Standards: UL/CSA

Typical Applications:

• Application: Industrial plant expansions; automotive plants; tray wiring; anywhere VNTC® cables are used

LAPP Group™ and all associated trademarks are the property of their respective owners.
