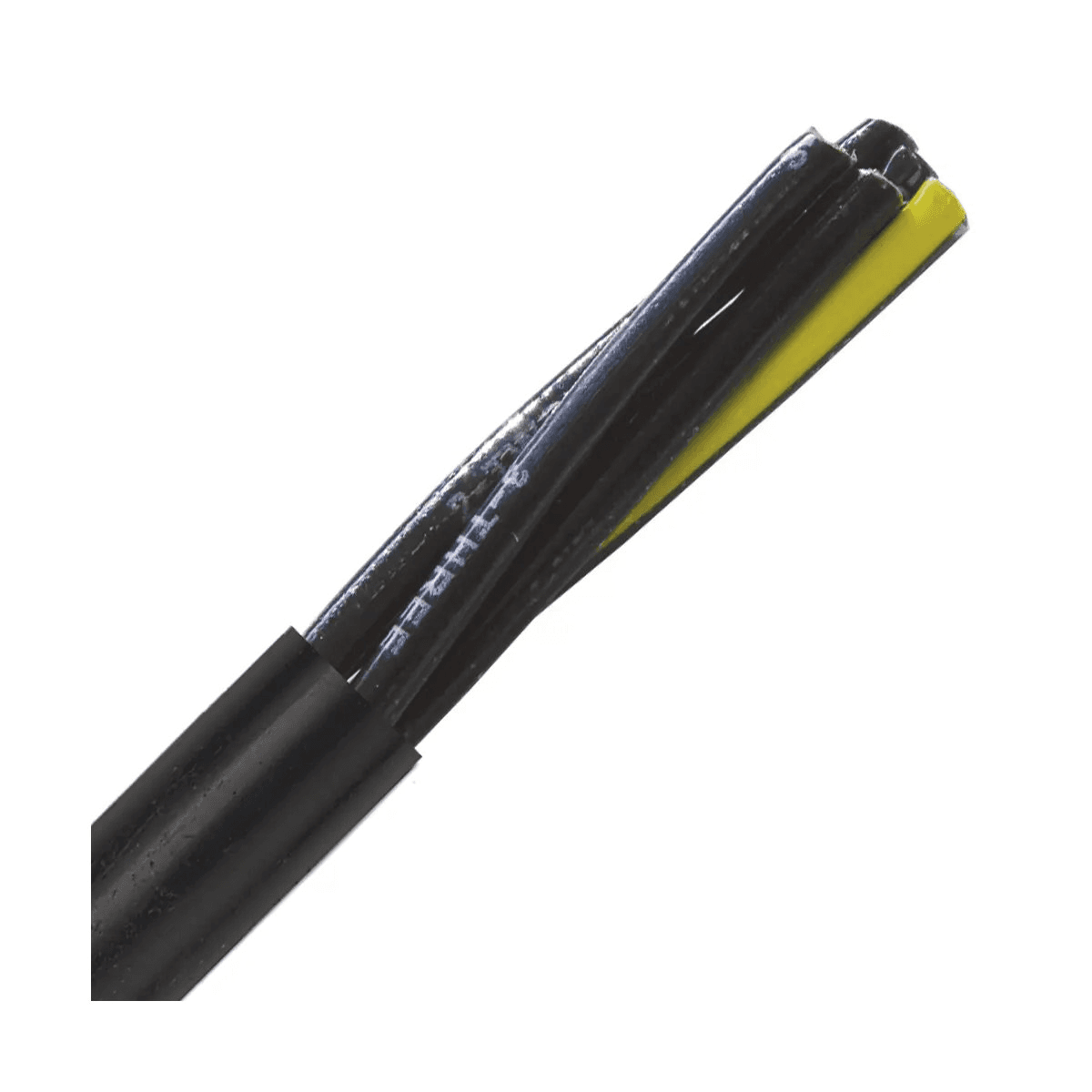

LAPP Group 221607, Flexible Tray Cable 7C 16 AWG Unshielded PVC Jacket

Part Number: 221607

LAPP 221607 is a flexible, Unshielded 7-Conductor tray Cable built with 16 AWG Stranded Conductors and a black thermoplastic polymer Jacket for durable industrial routing. It features PVC/Nylon Insulation and black Conductors with white printing plus a green/yellow ground for fast, accurate Identification during installation. Designed to be easier to pull than standard tray cables, it helps reduce labor time while supporting demanding tray wiring environments. Common applications include industrial plant expansions, automotive plants, tray wiring, and anywhere VNTC® cables are used.

Conductor & Construction:

• Manufacturer: LAPP
• Manufacturer Part Number: 221607
• Attributes: Multi-Conductor
• Number Of Conductors: 7
• Wire Size: 16 AWG
• Conductor Stranding: Stranded
• Conductor Color: Black with white printing plus green/yellow ground
• Shielding: Unshielded
• Nominal OD (MM): 10.5

Materials:

• Insulation: PVC/Nylon
• Jacket Material: Thermoplastic Polymer
• Jacket Color: Black

Temperature Ratings:

• Temperature Range: -13°F to +194°F -25°C to +90°C
• Dynamic Temperature Rating: -13°F to +221°F -25°C to +105°C

Approvals & Tray Ratings:

• Tray Ratings: UL ITC-ER UL PLTC-ER UL TC-ER
• UL Style / Standard: UL 13 UL 1063 UL 1277 UL 1690 UL 2250

Installation & Performance Features:

• Oil Resistant, pressure extruded PVC Jacket designed to improve flexibility
• Easier pulling compared to standard tray cables to help minimize labor time
• UL TC-ER approval can help reduce material costs
• No conduit is needed
• Black numbered Conductors support quick Identification
• UV resistant and direct burial

Applications:

• Industrial plant expansions; automotive plants; tray wiring; anywhere VNTC® cables are used
