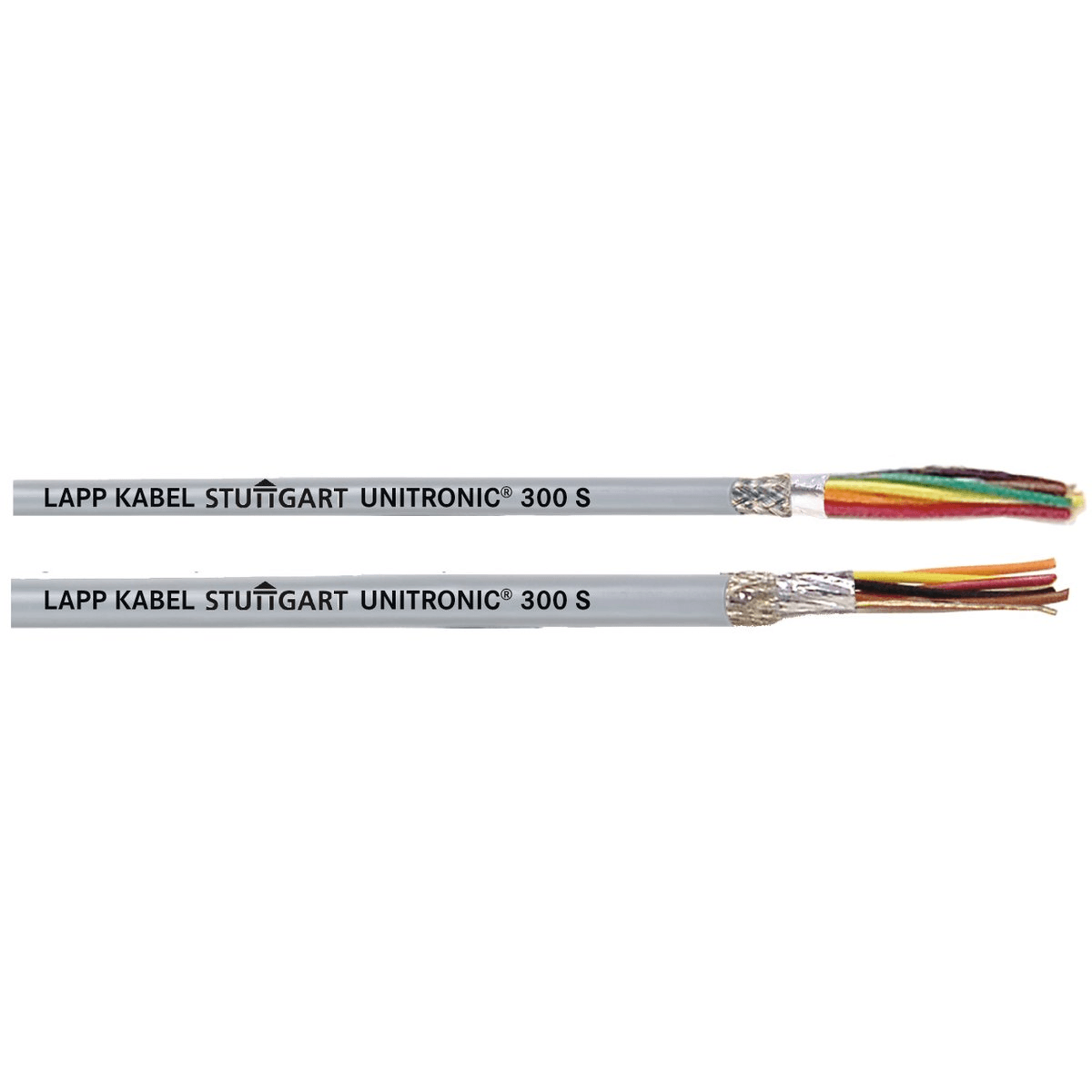

LAPP Group 301802S, Flexible Data Cable 18 AWG 2C Shielded 300V PVC

Part Number: 301802S

LAPP 301802S from the UNITRONIC® 300 / 300S series is a flexible, Shielded multi-Conductor data Cable designed for reliable signal transmission in electrically noisy environments. It features 18 AWG Tinned Copper Stranded Conductors in a 2 Conductor Construction, paired with a durable PVC Jacket in gray. With a 300V rating and a nominal OD (MM) of 6.8, it supports compact routing while maintaining dependable performance. This Cable is RoHS compliant and built to meet UL/CSA/CE requirements for broad application use.

Manufacturer & Series:

• Manufacturer: LAPP
• Manufacturer Part Number: 301802S
• Series: UNITRONIC® 300 / 300S
• Product Type: Unitronic
• Attributes: Multi-Conductor
• Flexibility: Flexible

Conductors:

• Number Of Conductors: 2 Conductor
• AWG/Gauge: 18
• Conductor Size: 18 AWG
• Conductor Material: Tinned Copper
• Conductor Stranding: Stranded
• Conductor Type: Finely Stranded
• Earth/Ground Wires: No

Shielding:

• Shield: Shielded
• Shield Type: Braid over Foil Shield

Jacket & Insulation:

• Jacket Material: PVC
• Jacket Color: Gray
• Insulation Material: PVC-Polyvinyl Chloride
• Nominal OD (MM): 6.8

Electrical & Compliance:

• Voltage: 300V
• Voltage Range: 300V OR 300/500V
• Standards: UL/CSA/CE
• RoHS Compliant: Yes
