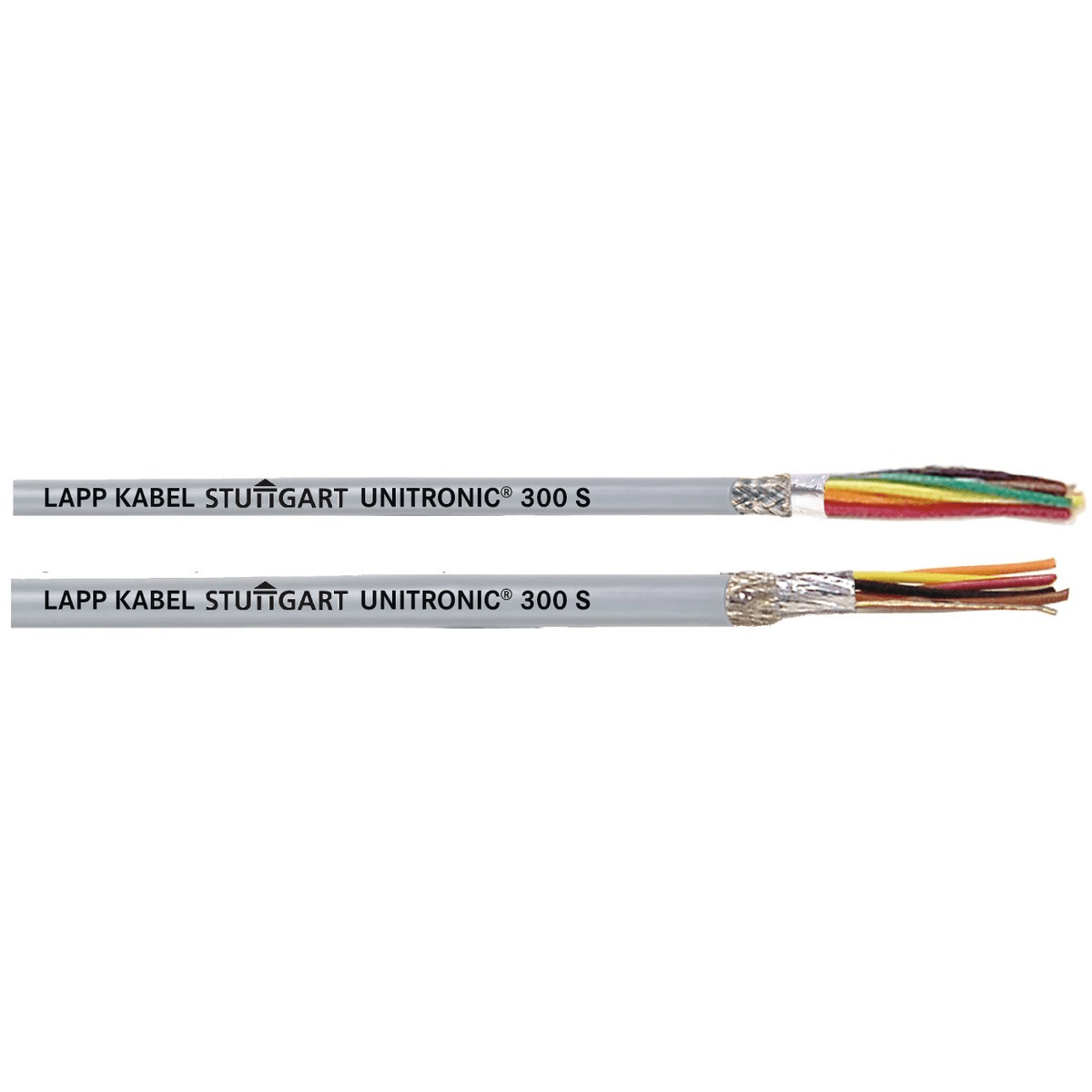

LAPP Group 301804S, Flexible Signal Control Cable 4C 18 AWG PVC Jacket

Part Number: 301804S

LAPP 301804S UNITRONIC® 300 / 300S is a flexible, Shielded signal and Control Cable designed for reliable performance in industrial control and instrumentation applications. It features 4 Conductor Construction with 18 AWG Tinned Copper Stranded Conductors and a durable gray PVC Jacket for easy routing and installation. With a 300V rating and an extended Temperature Range of -25oC to +105oC, it supports dependable low-voltage control interconnects in demanding environments. The BRAID OVER Foil Shield helps provide EMC protection, while sequential foot Marking simplifies measuring and pull planning during installs.

Cable Construction:

• Series: UNITRONIC® 300 / 300S
• Attributes: Multi-Conductor
• Number Of Conductors: 4 Conductor
• Conductor Size (AWG/Gauge): 18 AWG
• Conductor Material: Tinned Copper
• Conductor Stranding: Stranded
• Conductor Type: Finely Stranded
• Earth/Ground Wires: No

Materials & Jacket:

• Insulation Material: PVC Polyvinyl Chloride
• Jacket Material: PVC
• Jacket Color: Gray
• Nominal OD (MM): 7.9

Electrical & Shielding:

• Voltage: 300V
• Voltage Range: 300V OR 300/500V
• Shield: Shielded
• Shield Type: Braid over Foil Shield

Ratings, Compliance & Standards:

• Temperature Rating: -25oC to +105oC
• RoHS Compliant: Yes
• Standards: UL/CSA/CE

Installation & Application Notes:

• Flexibility: Flexible
• Suitable for use in Cable tray
• Oil and UV resistant (Oil Res I)
• Sequential foot Marking for ease of installation
• Applications: Process Instrumentation; Low Voltage control interc onnect
• Engineered for industrial signal and control applications with a focus on performance and easier installation
• Shielding options support EMC protection in harsh industrial environments

Identifiers:

• Manufacturer: LAPP
• Manufacturer Part Number: 301804S
• Product Type: UNITRONIC
