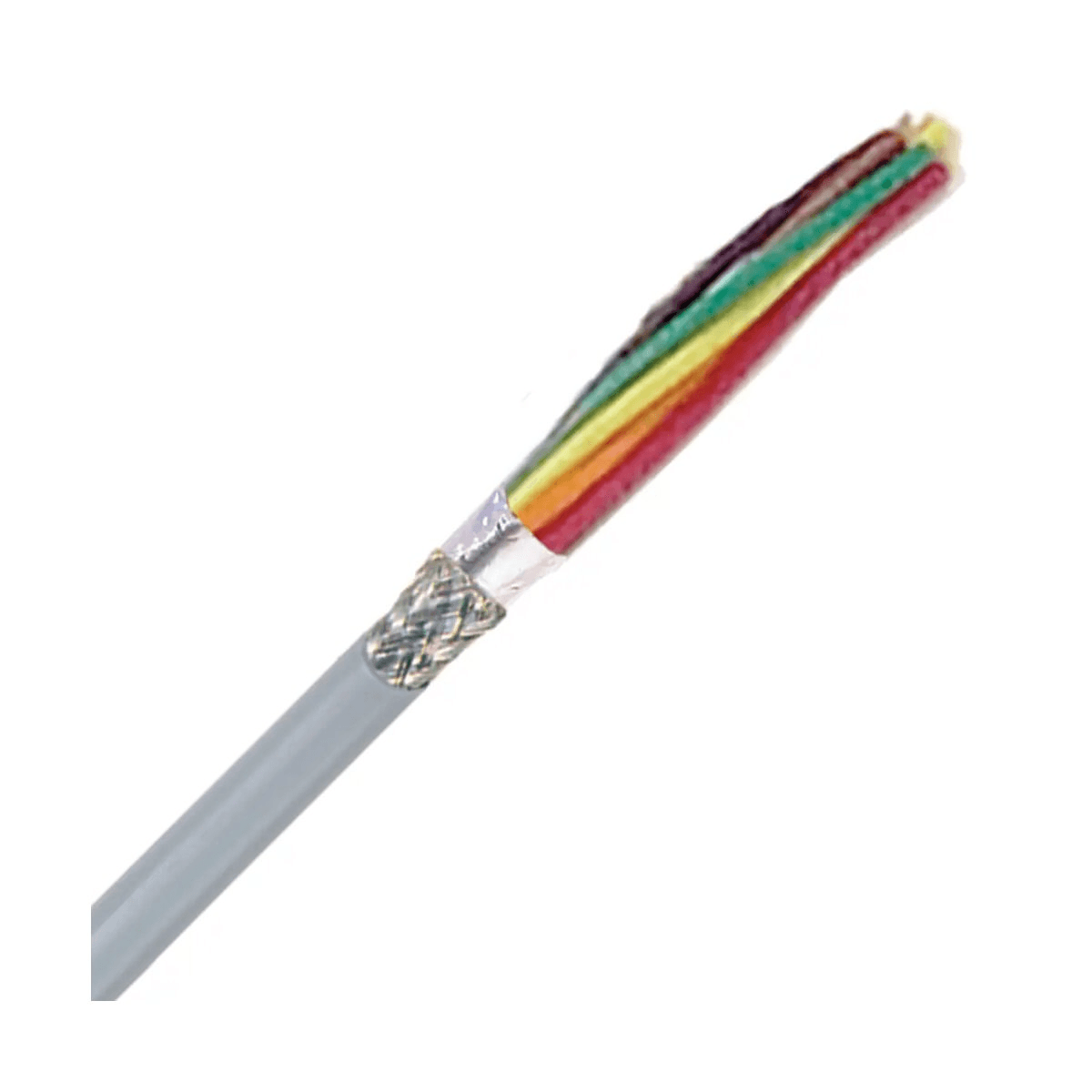

LAPP Group 302204S, Flexible Data Cable 22 AWG 4C Shielded 300V PVC
Description
Part Number: 302204S
LAPP Group 302204S is a UNITRONIC® 300 / 300S flexible multi-Conductor data Cable designed for reliable signal transmission in industrial and control applications. It features 22 AWG Tinned Copper Stranded Conductors and a durable PVC Jacket in gray for dependable performance in demanding environments. With a 300V rating and a nominal OD (MM) of 5.7, it supports compact routing while maintaining robust Insulation and Jacket protection. This Cable is built for flexibility where frequent movement and tight bends are required.
Manufacturer & Series:
- Manufacturer: LAPP
- Manufacturer part number: 302204S
- Series: UNITRONIC® 300 / 300S
- Product type: Unitronic
Construction:
- Attributes: Multi-Conductor
- Number Of Conductors: 4 Conductor
- AWG/gauge: 22
- Conductor Size: 22 AWG
- Conductor Material: Tinned Copper
- Conductor Stranding: Stranded
- Conductor Type: Finely Stranded
- Earth/ground wires: No
Jacket & Insulation:
- Insulation Material: PVC-Polyvinyl Chloride
- Jacket Material: PVC
- Jacket Color: Gray
- Nominal OD (MM): 5.7
Electrical & Compliance:
- Voltage: 300V
- Standards: UL/CSA/CE
Shielding:
- Shield: Unshielded
LAPP Group™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
