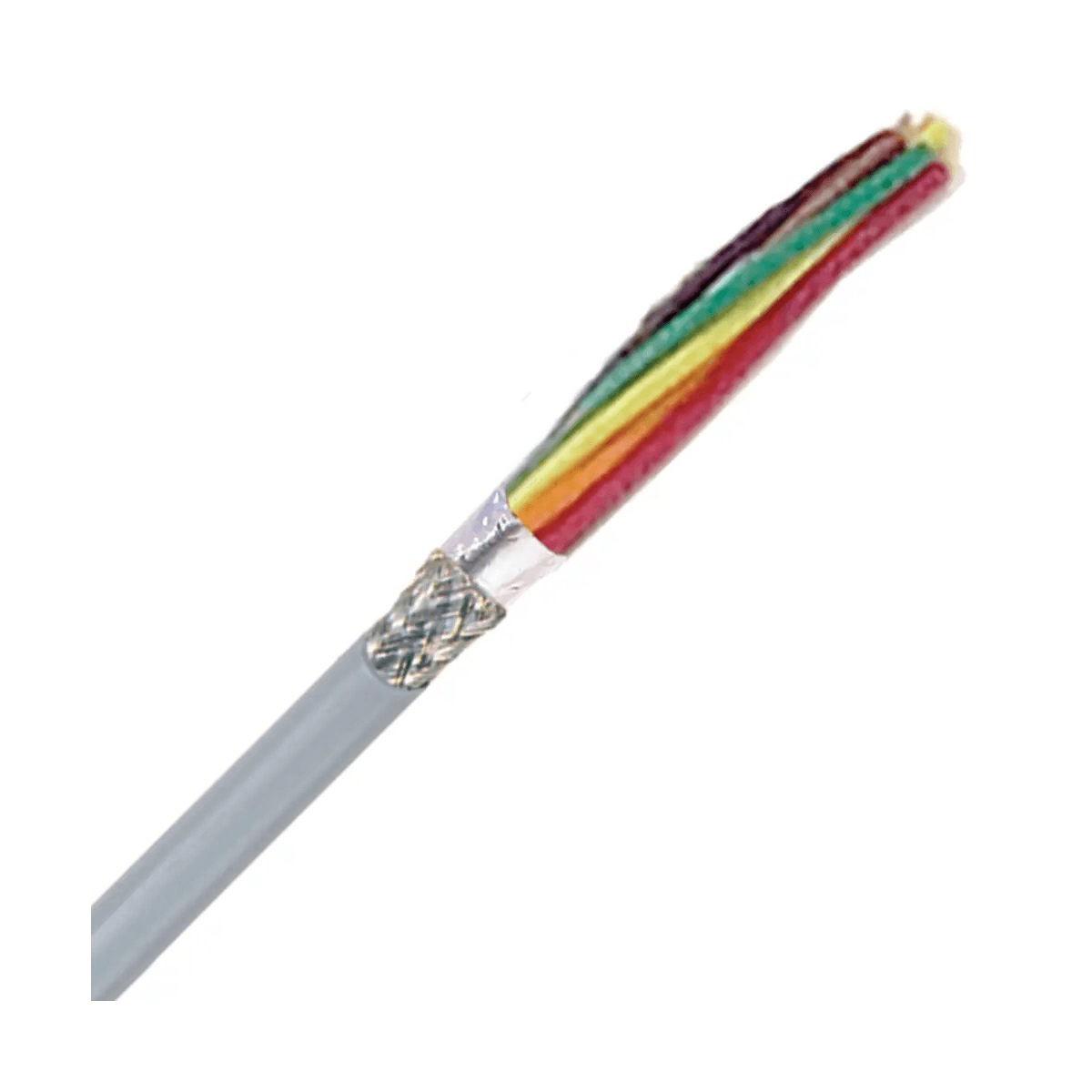

LAPP Group 302208S, Flexible Signal Control Cable 8C 22 AWG PVC Gray

Part Number: 302208S

LAPP 302208S UNITRONIC® 300 / 300S is a flexible, Shielded signal and Control Cable designed for reliable performance in industrial control and instrumentation applications. It features 8 Conductor Construction with 22 AWG Tinned Copper Stranded Conductors and a PVC Jacket in Gray for durable, easy routing. With a 300V rating and a nominal OD (MM) of 7.1, it supports clean installation in tight pathways and Cable tray environments. The braid over Foil Shield helps provide EMC protection in demanding industrial settings, while oil and UV resistance and sequential foot Marking simplify long-run installs.

Construction:

• Series: UNITRONIC® 300 / 300S
• Attributes: Multi-Conductor
• Number Of Conductors: 8 Conductor
• Conductor Size: 22 AWG
• Conductor Material: Tinned Copper
• Conductor Stranding: Stranded
• Conductor Type: Finely Stranded
• Ground wires: No

Jacket & Insulation:

• Insulation Material: PVC-Polyvinyl Chloride
• Jacket Material: PVC
• Jacket Color: Gray
• Nominal OD (MM): 7.1

Electrical & Shielding:

• Voltage: 300V
• Voltage range: 300V OR 300/500V
• Shielding: Shielded
• Shield Type: Braid over Foil Shield

Performance & Installation:

• Flexibility: Flexible
• Temperature Rating: -25oC to +105oC
• Suitable for use in Cable tray
• Oil and UV resistant (Oil Res I)
• Sequential foot Marking for ease of installation

Compliance & Standards:

• Standards: UL/CSA/CE
• RoHS compliant: Yes

Typical Applications:

• Industrial signal and control applications
• Process instrumentation
• Low voltage control interconnect
