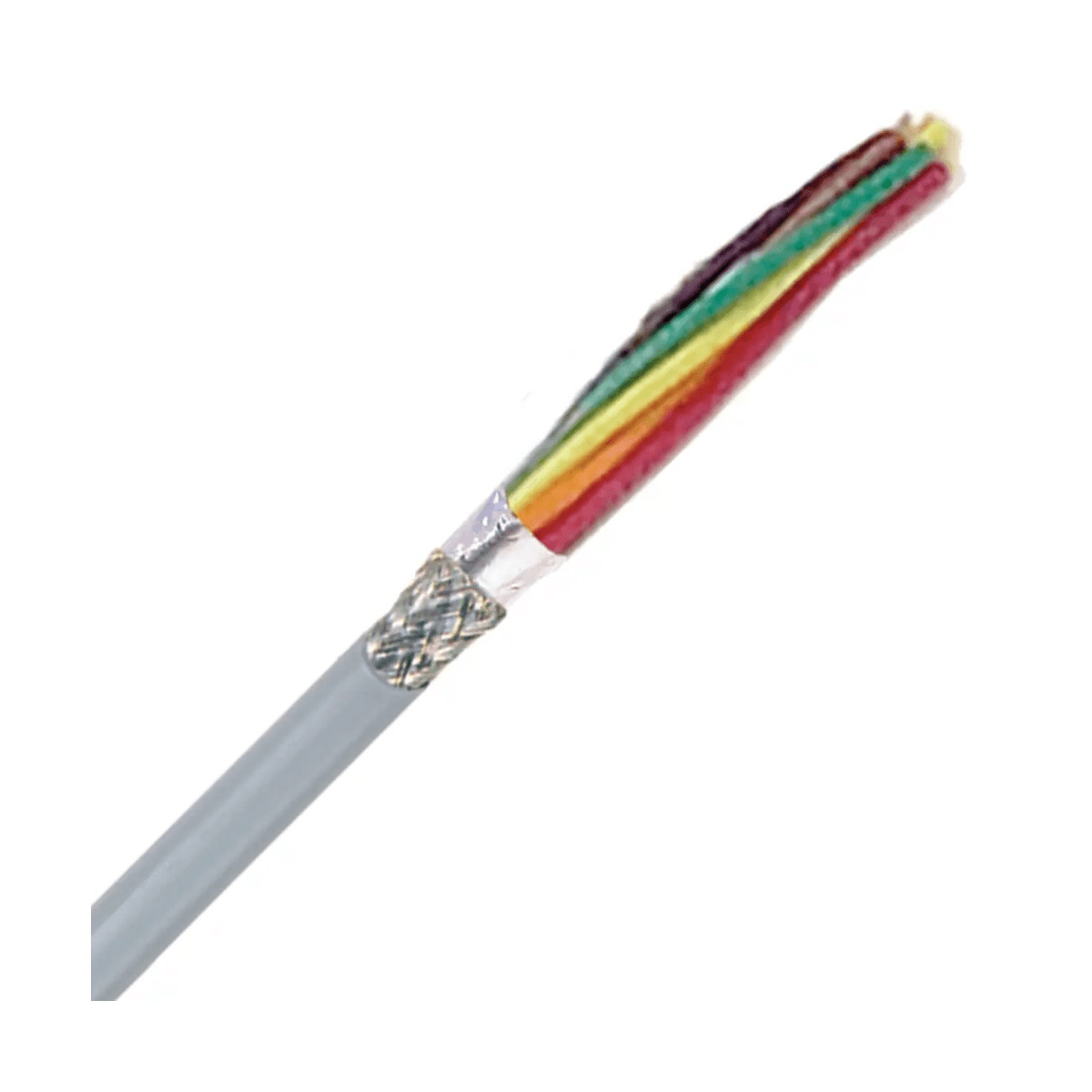

LAPP Group 302220S, UNITRONIC 300 S 22 AWG 20C Shielded 300V

Part Number: 302220S

LAPP Group 302220S from the UNITRONIC® 300 / 300S series is a flexible, Shielded multi-Conductor control and signal Cable designed for reliable performance in electrically noisy environments. It features 20 Conductor of 22 AWG Tinned Copper with Stranded construction, paired with a durable PVC Jacket in gray. With a 300V rating and a braid over Foil Shield, it’s well-suited for instrumentation, automation, and low-voltage control applications. The Cable has a nominal OD (MM) of 9.6 and meets UL/CSA/CE requirements while remaining RoHS compliant.

General:

• Manufacturer: LAPP
• Manufacturer Part Number: 302220S
• Series: UNITRONIC® 300 / 300S
• Attributes: Multi-Conductor
• Flexibility: Flexible
• Product Type: Unitronic

Conductors:

• Number Of Conductors: 20 Conductor
• Conductor Size: 22 AWG
• AWG/Gauge: 22
• Conductor Material: Tinned Copper
• Conductor Stranding: Stranded
• Conductor Type: Finely Stranded
• Earth/Ground Wires: No

Shielding:

• Shield: Shielded
• Shield Type: Braid over Foil Shield

Jacket & Insulation:

• Jacket Material: PVC
• Jacket Color: Gray
• Insulation Material: PVC-Polyvinyl Chloride

Electrical & Dimensions:

• Voltage: 300V
• Nominal OD (MM): 9.6

Compliance & Standards:

• Standards: UL/CSA/CE
• RoHS Compliant: Yes
