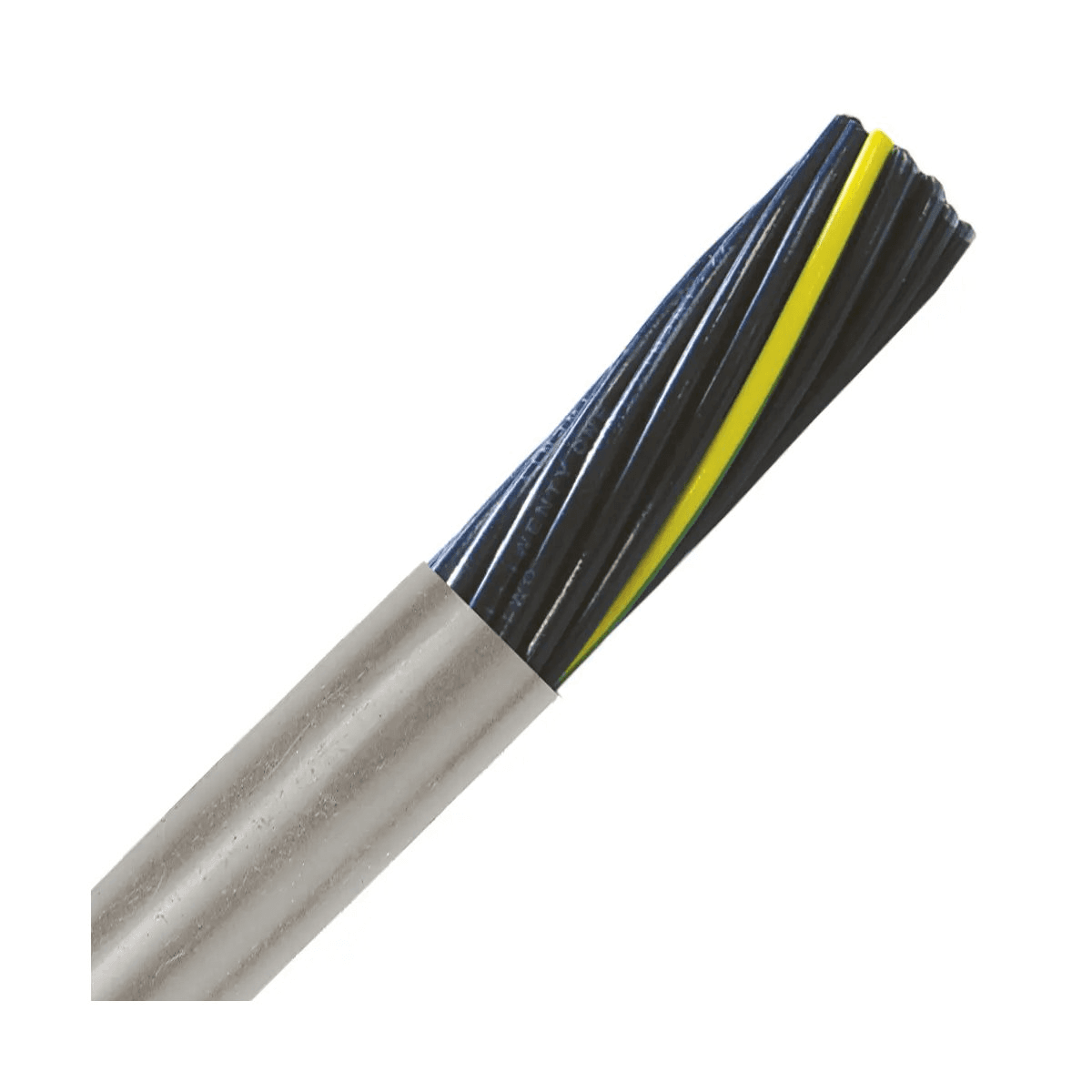

LAPP Group 600804, Flexible Control Power Cable 4C 8 AWG PVC Gray
SKU:600804
● In stock
ft
Minimum order: 100 ft · Increments of 100 ft
Description
Part Number: 600804
LAPP Group 600804 is a flexible multi-Conductor control and power Cable built for industrial environments where oil, coolant, and solvent resistance are critical. It features 4 Conductors of 8 AWG Stranded Copper with black Conductors with white printing plus green/yellow ground, all under a gray thermoplastic polymer Jacket. Designed for use in dry, damp, and wet conditions, it supports machinery and control applications such as CNC machining centers, conveyors, and assembly lines. It is UL TC-ER tray rated and meets NFPA79 2007 machinery wiring standard, with a Temperature Range of -13°F to +194°F -25°C to +90°C.
Key Features & Applications:
- Excellent industrial power and Control Cable for demanding environments
- Extremely Oil Resistant (Oil Res I & II)
- Meets NFPA79 2007 machinery wiring standard
- Very flexible and number coded for easier routing and terminating
- Round Jacket supports an optimal seal with a SKINTOP Strain Reli
- Common uses include CNC machining centers, grinding machines, bottling equipment, conveyors, processing equipment, assembly lines, and controlpanels
- Designed for electrical equipment in dry, damp and wet conditions
Electrical & Compliance:
- Voltage range: 600V
- Tray ratings: UL TC-ER
- UL style / standard: UL 13 UL 2277
- Standards: UL/CSA/CE
- RoHS compliant: Yes
Construction:
- Manufacturer: LAPP
- Manufacturer part number: 600804
- Attributes: Multi-Conductor
- Number Of Conductors: 4
- Wire size: 8 AWG
- Conductor Material: Bare Copper
- Conductor Stranding: Stranded
- Conductor Type: Finely Stranded
- Conductor color: Black with white printing plus green/yellow ground
- Insulation: PVC
- Jacket Material: Thermoplastic Polymer
- Jacket Color: Gray
- Shielding: Unshielded
Dimensions & Temperature:
- Nominal OD (mm): 16.9
- Temperature: -13°F to +194°F -25°C to +90°C
- Dynamic Temperature Rating: -13°F to +194°F -25°C to +90°C
- Weight lbs/mft: 436
LAPP Group™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
