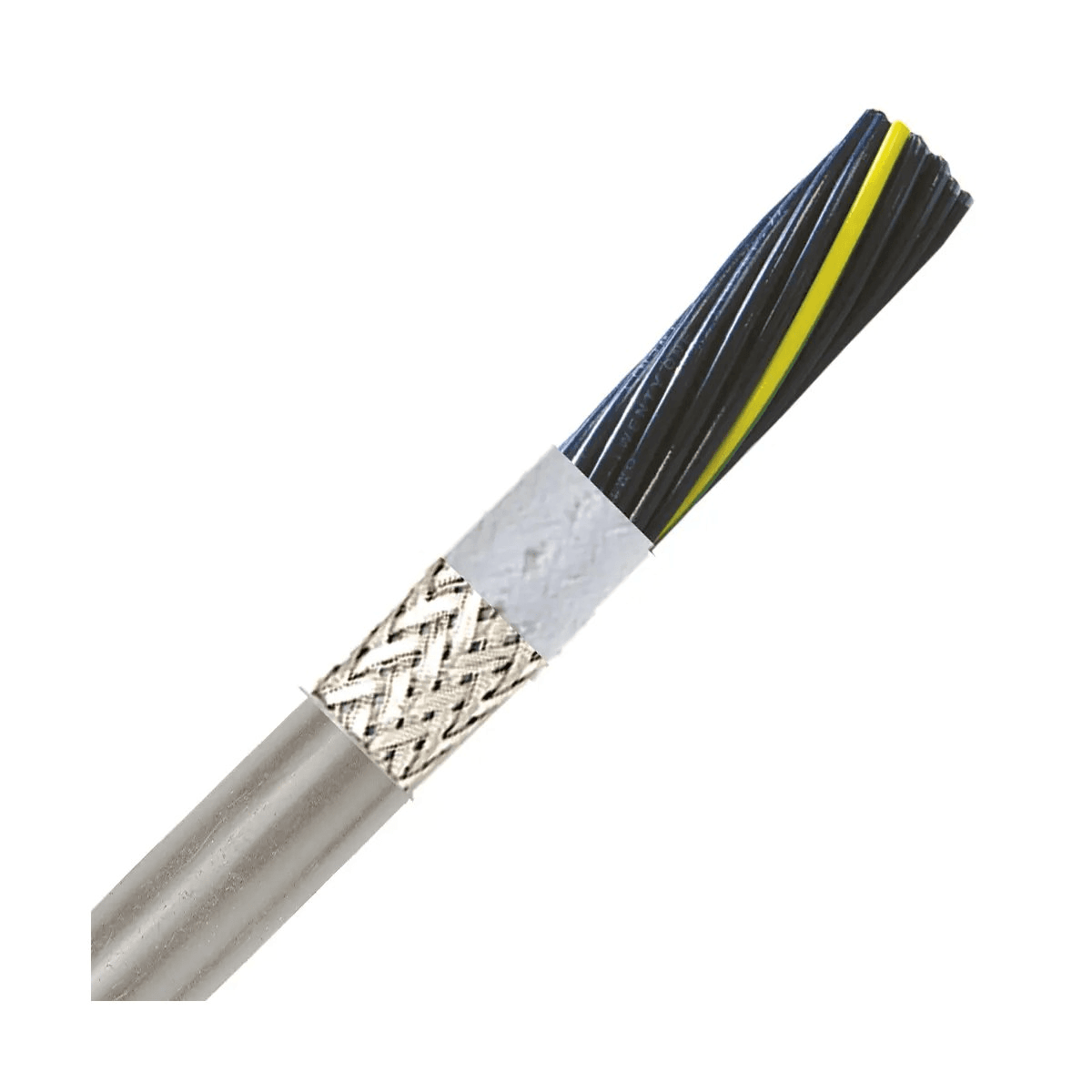

LAPP Group 601004CY, Oil Resistant 4C 10 AWG Shielded Gray PVC Cable

Part Number: 601004CY

LAPP 601004CY is a flexible, Shielded industrial power and Control Cable designed for demanding machinery environments. Built with 4 Conductor 10 AWG Stranded Bare Copper Conductors and a durable PVC Polyvinyl Chloride Insulation and Jacket, it supports reliable performance up to 600V. Its Braid Shield helps reduce electrical interference, while the round Jacket is designed to seal well with a SKINTOP Strain Reli. Extremely Oil Resistant (Oil Res I & II) and compliant with UL/CSA/CE and NFPA79 2007, it’s well-suited for CNC machining centers, conveyors, assembly lines, and control panels.

Key Features:

• Extremely Oil Resistant (Oil Res I & II)
• Meets NFPA79 2007 machinery wiring standard
• Excellent industrial power and Control Cable for machinery applications
• Very flexible and number coded for easier routing and terminating
• Round Jacket for optimal seal with a SKINTOP Strain Reli

Electrical & Compliance:

• Voltage range: 600V
• Standards: UL/CSA/CE
• RoHS compliant: Yes

Construction:

• Product type: Flex Cont
• Number Of Conductors: 4 Conductor
• Conductor Size: 10 AWG
• Conductor Material: Bare Copper
• Conductor Type: Stranded
• Earth/ground wires: No
• Insulation Material: PVC Polyvinyl Chloride
• Jacket Material: PVC Polyvinyl Chloride
• Shielding: Shielded
• Shield Type: Braid

Typical Applications:

• CNC machining centers
• Grinding machines
• Bottling equipment
• Conveyors
• Processing equipment
• Assembly lines
• Control panels
