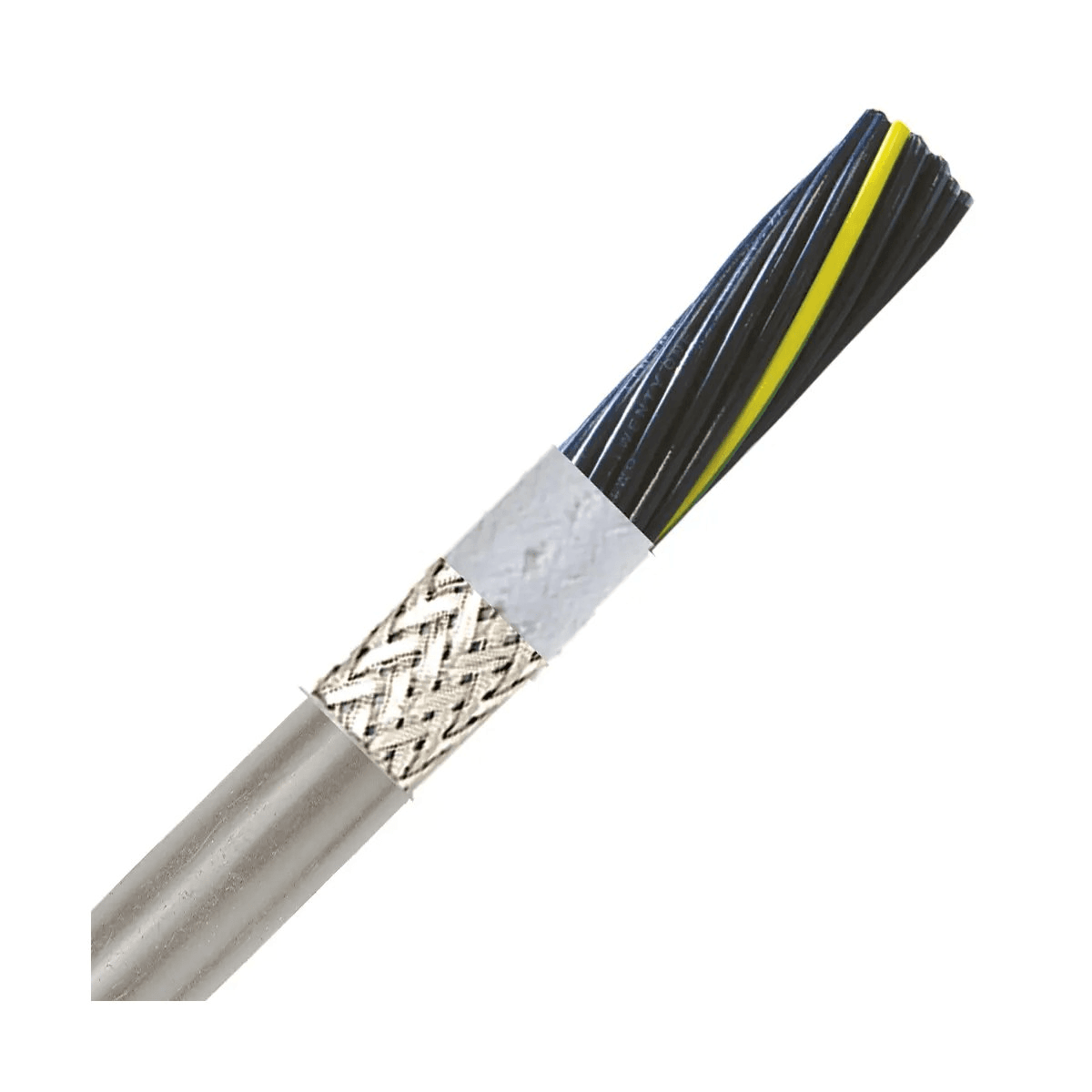

LAPP Group 601203CY, Control Power Cable 3C 12 AWG Shielded PVC

Part Number: 601203CY

LAPP Group 601203CY is a flexible, Shielded control power Cable built for industrial power and control applications where oil resistance and reliable signal integrity matter. It features 3 Conductors in 12 AWG with Stranded construction and a Braid Shield, making it well-suited for machinery wiring and control panel builds. The gray thermoplastic polymer Jacket and PVC Insulation support demanding environments, with a Temperature Range of -13°F to +194°F -25°C to +90°C. Designed to meet NFPA79 2007 machinery wiring standard, it’s a strong fit for equipment such as CNC machining centers, conveyors, and processing lines.

Conductor & Construction:

• Manufacturer: LAPP
• Manufacturer part number: 601203CY
• Attributes: Multi-Conductor
• Number Of Conductors: 3
• Wire size: 12 AWG
• Conductor Stranding: Stranded
• Conductor Type: Finely Stranded
• Conductor Material: Bare Copper
• Conductor color: Black with white printing plus green/yellow ground
• Shield: Shielded
• Shield Type: Braid
• Product type: Flex cont

Materials & Dimensions:

• Insulation: PVC
• Insulation Material: PVC-polyvinyl chloride
• Jacket Material: Thermoplastic polymer
• Jacket Color: Gray
• Nominal OD (mm): 12.7

Electrical & Temperature Ratings:

• Voltage range: 600V
• Temperature: -13°F to +194°F -25°C to +90°C
• Dynamic Temperature Rating: -13°F to +194°F -25°C to +90°C

Approvals, Standards & Compliance:

• Tray ratings: UL TC-ER
• UL style / standard: UL 13 UL 2277
• Standards: UL/CSA/CE
• RoHS compliant: Yes

Performance Features:

• Extremely Oil Resistant (Oil Res I & II)
• Meets NFPA79 2007 machinery wiring standard
• Very flexible and number coded for easier routing and termination
• Round Jacket design supports an optimal seal with a SKINTOP Strain Reli

Typical Applications:

• Machinery wiring for CNC machining centers, grinding machines, and bottling equipment
• Industrial equipment including conveyors, processing equipment, assembly lines, and control panels

Packaging & Weight:

• Weight lbs/mft: 227

LAPP Group™ and all associated trademarks are the property of their respective owners.
