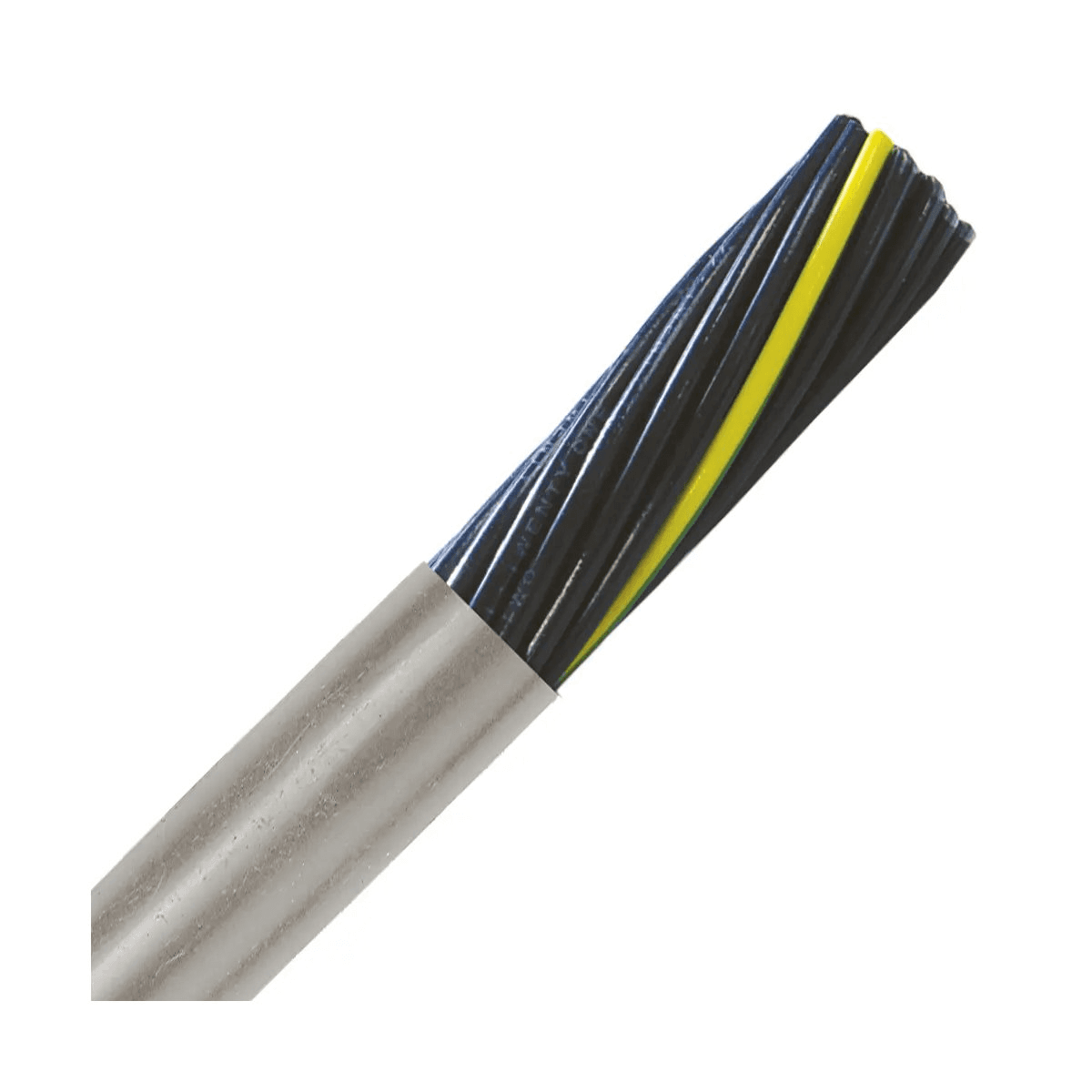

LAPP Group 601207, Flexible Control 7C 56 Stranded BC PVC 600V 90C

Part Number: 601207

LAPP Group 601207 is a flexible multi-Conductor Control Cable designed for reliable power and control wiring in demanding industrial environments. It features 7 Stranded 12 AWG Bare Copper Conductors with PVC Insulation and a gray thermoplastic polymer Jacket for durable performance. Rated 600V and -13°F to +194°F -25°C to +90°C, it supports both static and dynamic applications within the same Temperature Range. This Unshielded Cable is UL TC-ER rated and built to UL 13 and UL 2277 standards for broad installation compatibility.

Manufacturer Information:

• Manufacturer: LAPP
• Manufacturer Part Number: 601207
• Attributes: Multi-Conductor
• Product Type: Flex Cont

Conductors:

• Number Of Conductors: 7
• Conductor Size: 12 AWG
• Conductor Material: Bare Copper
• Conductor Stranding: Stranded
• Conductor Color: Black with white printing plus green/yellow ground

Insulation & Jacket:

• Insulation Material: PVC
• Jacket Material: Thermoplastic Polymer
• Jacket Color: Gray
• Nominal OD (MM): 14.6

Electrical & Temperature Ratings:

• Voltage Range: 600V
• Temperature: -13°F to +194°F -25°C to +90°C
• Dynamic Temperature Rating: -13°F to +194°F -25°C to +90°C

Compliance & Standards:

• Tray Ratings: UL TC-ER
• UL Style / Standard: UL 13 UL 2277
• Standards: UL/CSA/CE
• RoHS Compliant: Yes

Additional Details:

• Shield: Unshielded
• Weight LBS/MFT: 363
