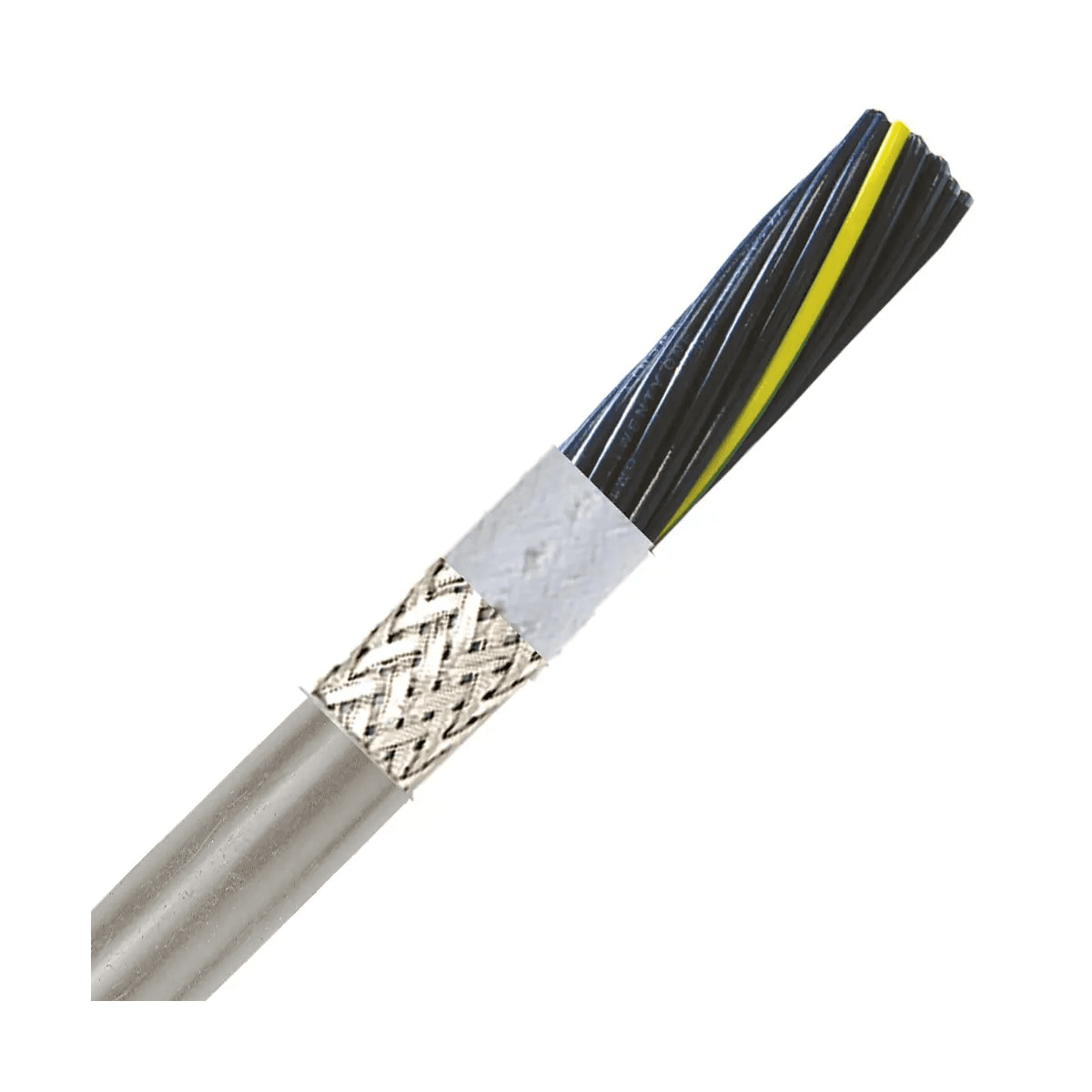

LAPP Group 601403CY, OLFLEX 190 CY 14 AWG 3C Shld 600V Flexible Cable

Part Number: 601403CY

LAPP Group 601403CY OLFLEX 190 CY is a flexible, Shielded multi-Conductor Cable designed for industrial power and control applications up to 600V. Built with 14 AWG Stranded Conductors and a gray thermoplastic polymer Jacket, it supports reliable routing and termination with number-coded cores. It is extremely Oil Resistant (Oil Res I & II) and meets NFPA79 2007 machinery wiring standard for demanding equipment environments. The round Jacket profile helps provide an optimal seal when used with a SKINTOP Strain Reli, making it well-suited for machinery such as CNC machining centers, conveyors, and control panels.

Electrical & Compliance:

• Voltage range: 600V
• Tray ratings: UL TC-ER
• UL style / standard: UL 13, UL 2277
• Standards: UL/CSA/CE
• RoHS compliant: Yes

Construction:

• Attributes: Multi-Conductor
• Number Of Conductors: 3
• AWG/gauge: 14
• Conductor Stranding: Stranded
• Conductor Type: Finely Stranded
• Conductor Material: Bare Copper
• Conductor color: Black with white printing plus green/yellow ground
• Insulation: PVC
• Jacket Material: Thermoplastic Polymer
• Jacket Color: Gray
• Nominal OD (mm): 11
• Shield: Shielded
• Shield Type: Braid
• Product type: Flex cont

Temperature Ratings:

• Temperature: -13°F to +194°F -25°C to +90°C
• Dynamic Temperature Rating: -13°F to +194°F -25°C to +90°C

Performance Features:

• Extremely Oil Resistant (Oil Res I & II)
• Meets NFPA79 2007 machinery wiring standard
• Very flexible and number coded for easier routing and terminating
• Round Jacket supports an optimal seal with a SKINTOP Strain Reli

Typical Applications:

• Machinery wiring for CNC machining centers, grinding machines, bottling equipment, conveyors, processing equipment, assembly lines, and control panels

Additional Details:

• Manufacturer: LAPP
• Manufacturer part number: 601403CY
• Weight lbs/mft: 148
