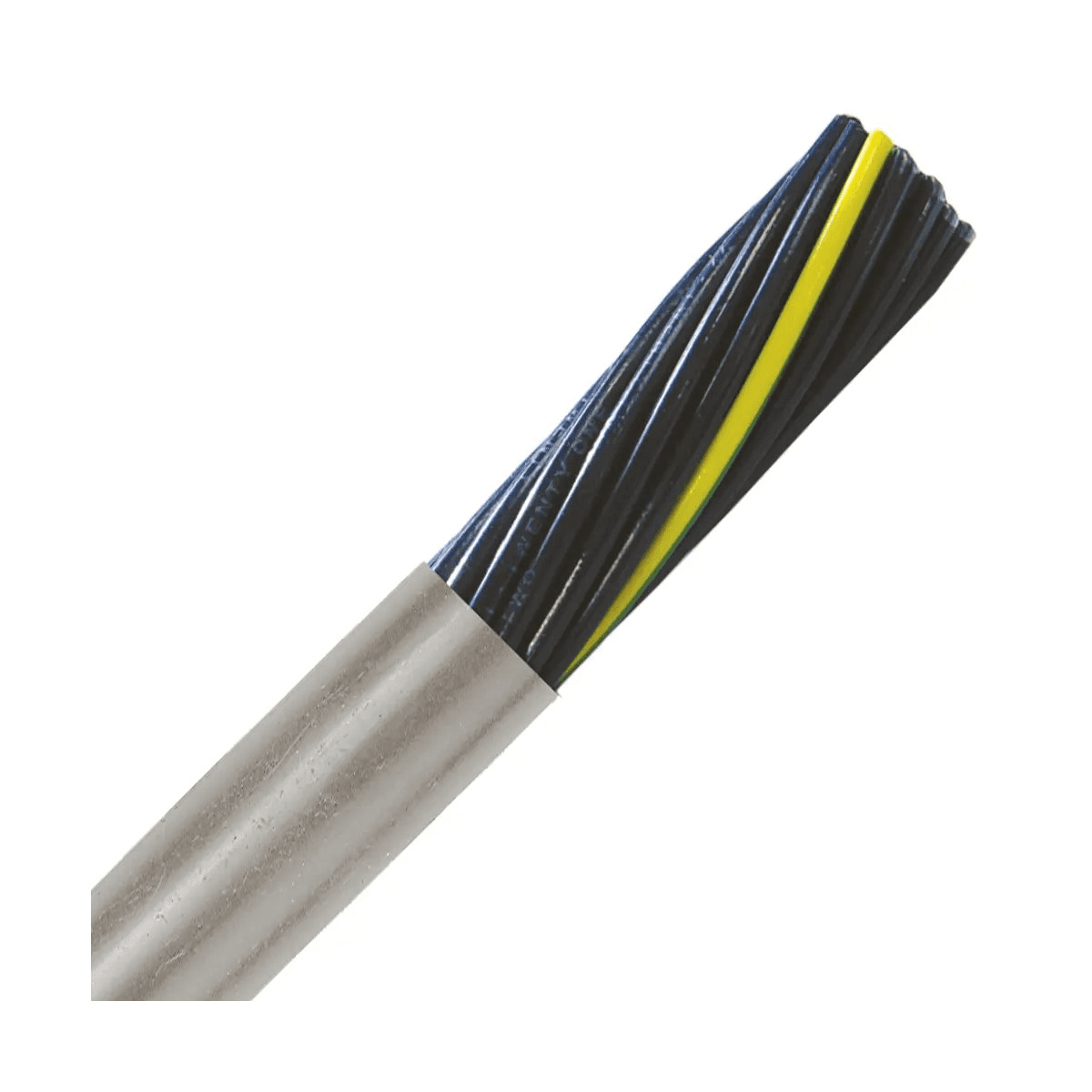

LAPP Group 601404, Oil Resistant Control Power Cable 4C 14 AWG PVC

Part Number: 601404

LAPP Group 601404 is a flexible multi-Conductor control and power Cable built for industrial environments where oil, coolant, and solvent resistance are critical. It features 4 Conductors of 14 AWG Stranded Bare Copper with PVC Insulation and a gray thermoplastic polymer Jacket. Designed for dry, damp, and wet conditions, it supports machinery wiring applications and is number coded for easier routing and termination. It carries UL TC-ER tray ratings and meets UL 13 and UL 2277, with a Temperature Range of -13°F to +194°F -25°C to +90°C.

Conductor & Construction:

• Manufacturer: LAPP
• Manufacturer part number: 601404
• Attributes: Multi-Conductor
• Number Of Conductors: 4
• Wire size: 14 AWG
• Conductor Material: Bare Copper
• Conductor Stranding: Stranded
• Conductor Type: Finely Stranded
• Conductor color: Black with white printing plus green/yellow ground
• Nominal OD (mm): 9.8
• Weight lbs/mft: 121

Materials:

• Insulation: PVC
• Insulation Material: PVC-Polyvinyl Chloride
• Jacket Material: Thermoplastic Polymer
• Jacket Color: Gray

Electrical & Temperature Ratings:

• Voltage range: 600V
• Temperature: -13°F to +194°F -25°C to +90°C
• Dynamic Temperature Rating: -13°F to +194°F -25°C to +90°C

Compliance & Listings:

• Tray ratings: UL TC-ER
• UL style / standard: UL 13 UL 2277
• Standards: UL/CSA/CE
• RoHS compliant: Yes

Performance Features:

• Extremely Oil Resistant (Oil Res I & II)
• Meets NFPA79 2007 machinery wiring standard
• Very flexible and number coded for simplified routing and termination
• Round Jacket design helps provide an optimal seal with a SKINTOP Strain Reli
• Shield: Unshielded
• Product type: Flex Cont

Typical Applications:

• Industrial control and power applications in dry, damp and wet conditions
• Machinery: CNC machining centers, grinding machines, bottling equipment, conveyors, processing equipment, assembly lines and controlpanels
