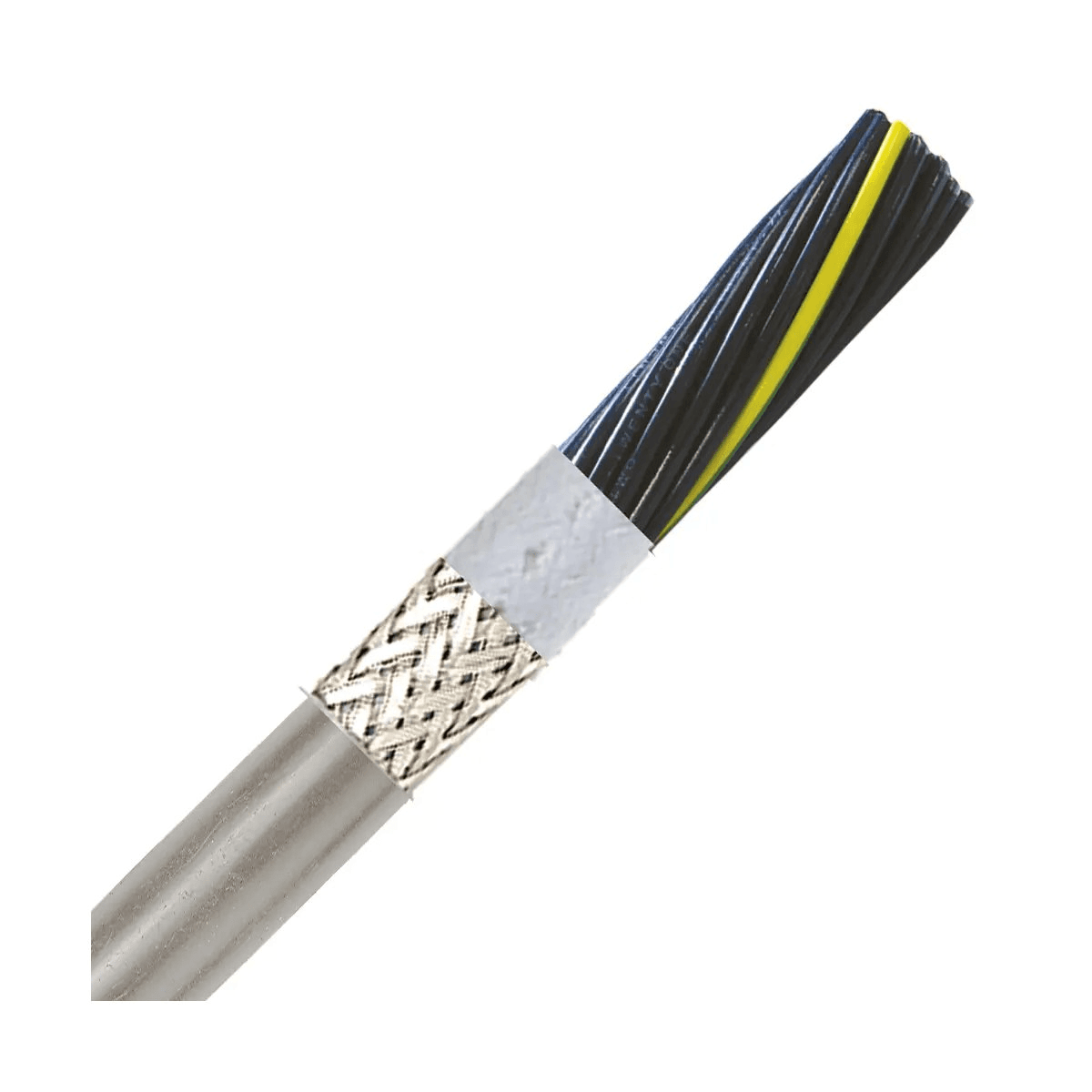

LAPP Group 601404CY, Oil Resistant Control Power Cable 4C 14 AWG Shielded PVC

Part Number: 601404CY

LAPP Group 601404CY is a flexible, Shielded control power Cable built for demanding industrial machinery and oil-exposed environments. It features 4 Conductors of 14 AWG Stranded Copper with PVC Insulation and a gray thermoplastic polymer Jacket for durable routing in control panels and equipment. Designed for industrial power and control applications, it meets UL TC-ER tray ratings and supports 600V service. The round Jacket helps provide an optimal seal with a SKINTOP Strain Reli, and the Conductors are number coded for easier routing and termination.

Key Features & Applications:

• Extremely Oil Resistant (Oil Res I & II)
• Meets NFPA79 2007 machinery wiring standard
• Excellent industrial power and Control Cable
• Very flexible and number coded for easier routing and terminating
• Round Jacket for optimal seal with a SKINTOP Strain Reli
• For machinery such as CNC machining centers, grinding machines, bottling equipment, conveyors, processing equipment, assembly lines, and control panels

Conductors:

• AWG/Gauge: 14
• Number Of Conductors: 4
• Conductor Stranding: Stranded
• Conductor Type: Finely Stranded
• Conductor Material: Bare Copper
• Conductor Color: Black with white printing plus green/yellow ground

Insulation, Jacket & Construction:

• Insulation: PVC
• Insulation Material: PVC-Polyvinyl Chloride
• Jacket Material: Thermoplastic Polymer
• Jacket Color: Gray
• Nominal OD (mm): 11.7
• Attributes: Multi-Conductor

Shielding:

• Shield: Shielded
• Shield Type: Braid

Electrical & Temperature Ratings:

• Voltage Range: 600V
• Temperature: -13°F to +194°F -25°C to +90°C
• Dynamic Temperature Rating: -13°F to +194°F -25°C to +90°C

Approvals & Compliance:

• Tray Ratings: UL TC-ER
• UL Style / Standard: UL 13 UL 2277
• Standards: UL/CSA/CE
• RoHS Compliant: Yes

Additional Information:

• Manufacturer: LAPP
• Manufacturer Part Number: 601404CY
• Weight lbs/mft: 181
