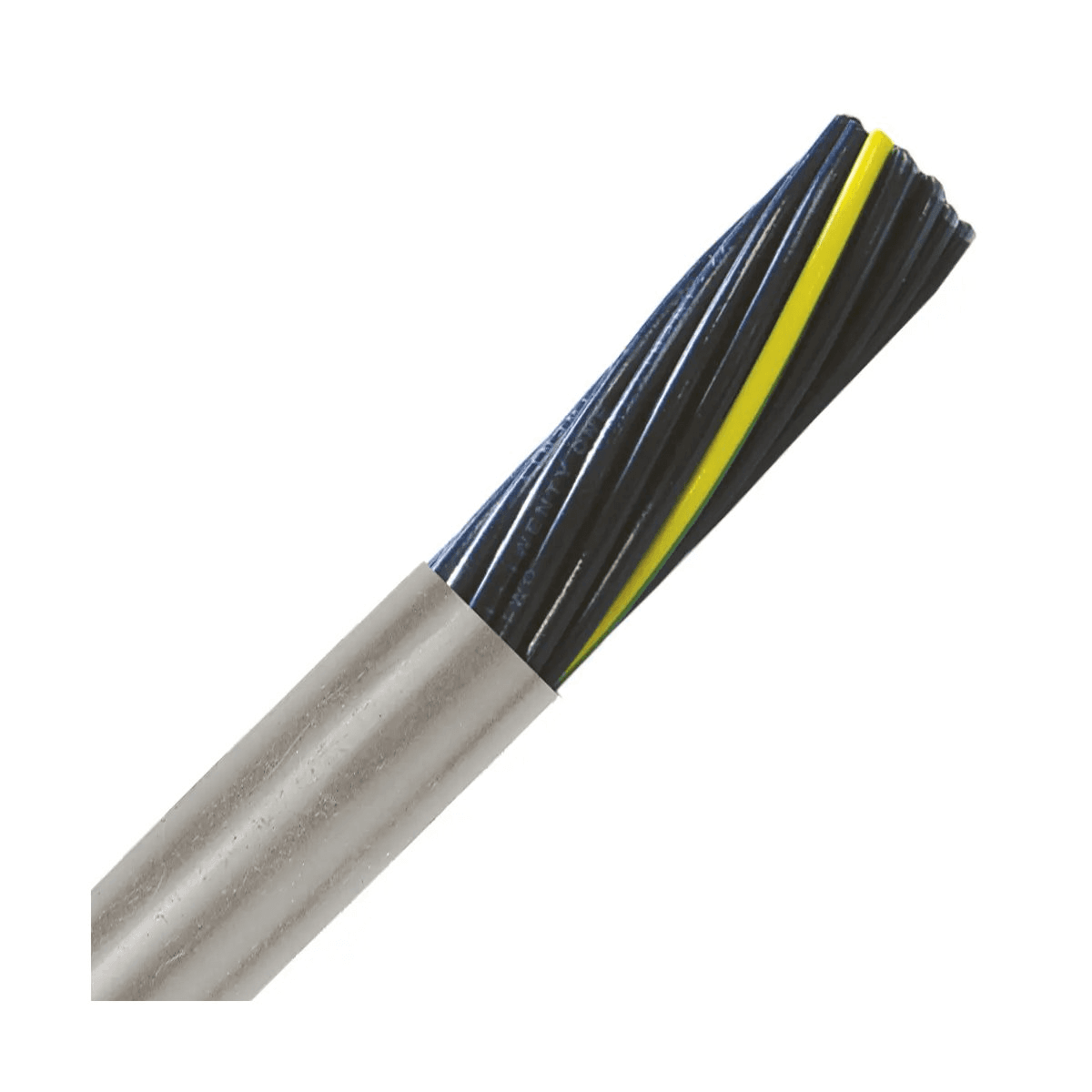

LAPP Group 601407, OLFLEX 190 7C 14 AWG 600V Flexible Cable

Part Number: 601407

LAPP Group 601407 OLFLEX 190 is a flexible 600V multi-Conductor Cable built for industrial power and control wiring in dry, damp, and wet environments. It features a highly oil-, coolant-, and solvent-resistant Jacket and is designed to meet NFPA79 2007 machinery wiring requirements. The 7-Conductor 14 AWG Stranded construction is number coded for faster routing and termination, with black Conductors and white printing plus a green/yellow ground. A round gray Jacket helps provide an optimal seal when used with a SKINTOP Strain Reli.

Manufacturer Information:

• Manufacturer: LAPP
• Manufacturer Part Number: 601407

Electrical & Standards:

• Voltage Range: 600V
• Tray Ratings: UL TC-ER
• UL Style / Standard: UL 13 UL 2277
• Standards: UL/CSA/CE
• RoHS Compliant: Yes

Construction:

• Attributes: Multi-Conductor
• Number Of Conductors: 7
• AWG/Gauge: 14
• Conductor Stranding: Stranded
• Conductor Type: Finely Stranded
• Conductor Material: Bare Copper
• Shield: Unshielded
• Product Type: Flex cont

Materials:

• Insulation: PVC
• Insulation Material: PVC-Polyvinyl Chloride
• Jacket Material: Thermoplastic Polymer

Colors & Identification:

• Conductor Color: Black with white printing plus green/yellow ground
• Jacket Color: Gray

Temperature Ratings:

• Temperature: -13°F to +194°F -25°C to +90°C
• Dynamic Temperature Rating: -13°F to +194°F -25°C to +90°C

Dimensions & Weight:

• Nominal OD (MM): 11.6
• Weight LBS/MFT: 192

Key Features:

• Extremely Oil Resistant (Oil Res I & II)
• Excellent industrial power and Control Cable performance
• Very flexible and number coded for easier routing and terminating
• Round Jacket supports an optimal seal with a SKINTOP Strain Reli
• Meets NFPA79 2007 machinery wiring standard

Typical Applications:

• Machinery: CNC machining centers, grinding machines, bottling equipment, conveyors, processing equipment, assembly lines, and controlpanels
• Electrical equipment in dry, damp, and wet conditions
