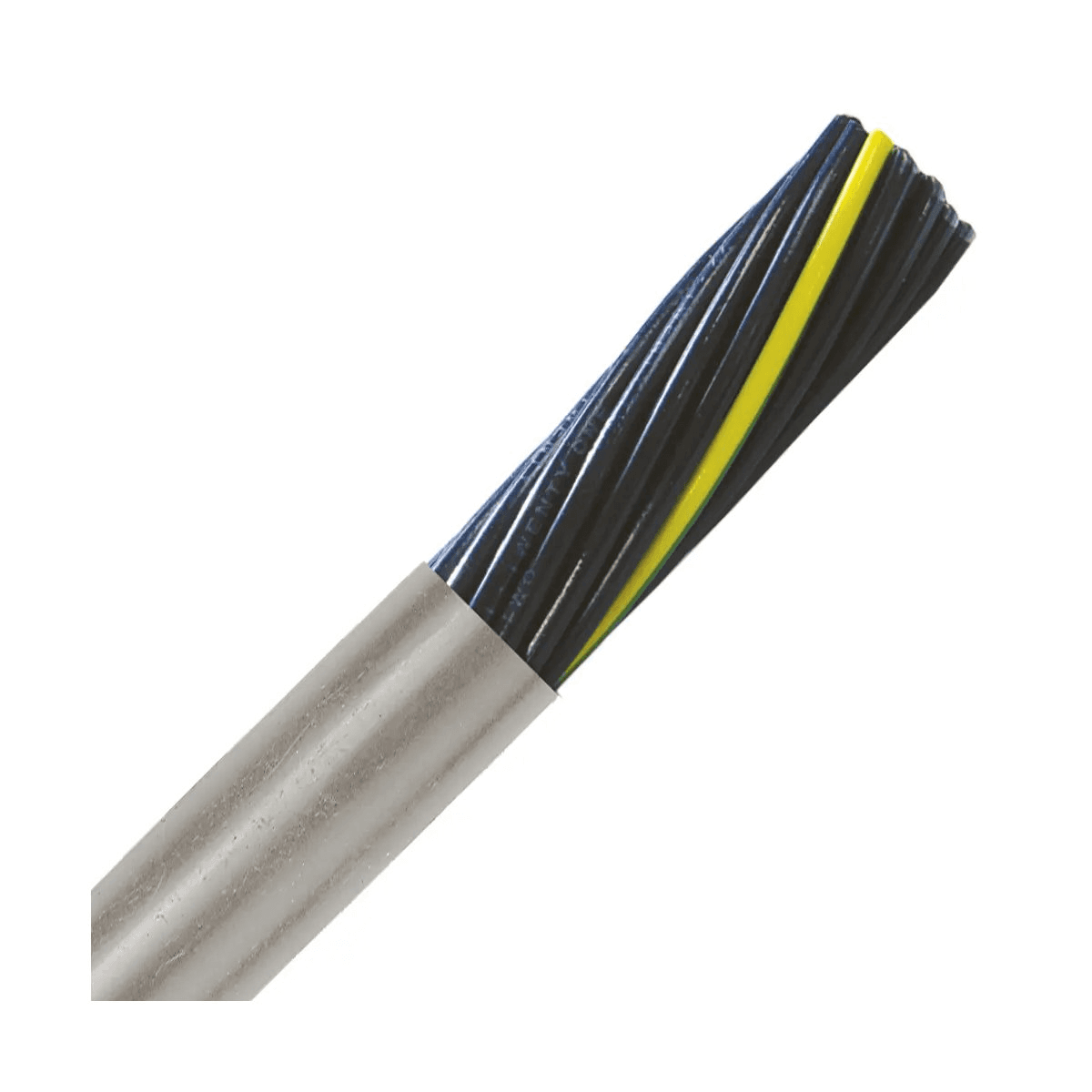

LAPP Group 601409, OLFLEX 190 9C 14 AWG 600V Flexible Cable

Part Number: 601409

LAPP OLFLEX 190 601409 is a flexible, multi-Conductor control and power Cable built for industrial environments where oil, coolant, and solvent resistance are critical. It features 9 Conductors of 14 AWG Stranded Copper with PVC Insulation and a gray thermoplastic polymer Jacket, rated 600V. Designed for use in dry, damp, and wet conditions, it supports easy routing and termination with number-coded Conductors and a round Jacket profile. It meets NFPA79 2007 machinery wiring requirements and carries UL TC-ER tray ratings for demanding machine and control applications.

Key Features & Benefits:

• Extremely Oil Resistant (Oil Res I & II)
• Meets NFPA79 2007 machinery wiring standard
• Excellent industrial power and Control Cable
• Very flexible and number coded for easier routing and terminating
• Round Jacket for optimal seal with a SKINTOP Strain Reli

Applications:

• Machinery and industrial equipment in dry, damp, and wet conditions
• CNC machining centers, grinding machines, bottling equipment, conveyors, processing equipment, assembly lines, and controlpanels

Electrical:

• Voltage Rating: 600V

Construction:

• Manufacturer: LAPP
• Manufacturer part number: 601409
• Attributes: Multi-Conductor
• Number Of Conductors: 9
• Wire size: 14 AWG
• Conductor Stranding: Stranded
• Conductor Material: Bare Copper
• Conductor color: Black with white printing plus green/yellow ground
• Insulation: PVC
• Jacket Color: Gray
• Jacket Material: Thermoplastic Polymer
• Nominal OD (mm): 15.5
• Shielding: Unshielded
• Weight lbs/mft: 317

Temperature Ratings:

• Temperature: -13°F to +194°F -25°C to +90°C
• Dynamic Temperature Rating: -13°F to +194°F -25°C to +90°C

Approvals & Compliance:

• Tray ratings: UL TC-ER
• UL style / standard: UL 13 UL 2277
• Standards: UL/CSA/CE
• RoHS compliant: Yes
