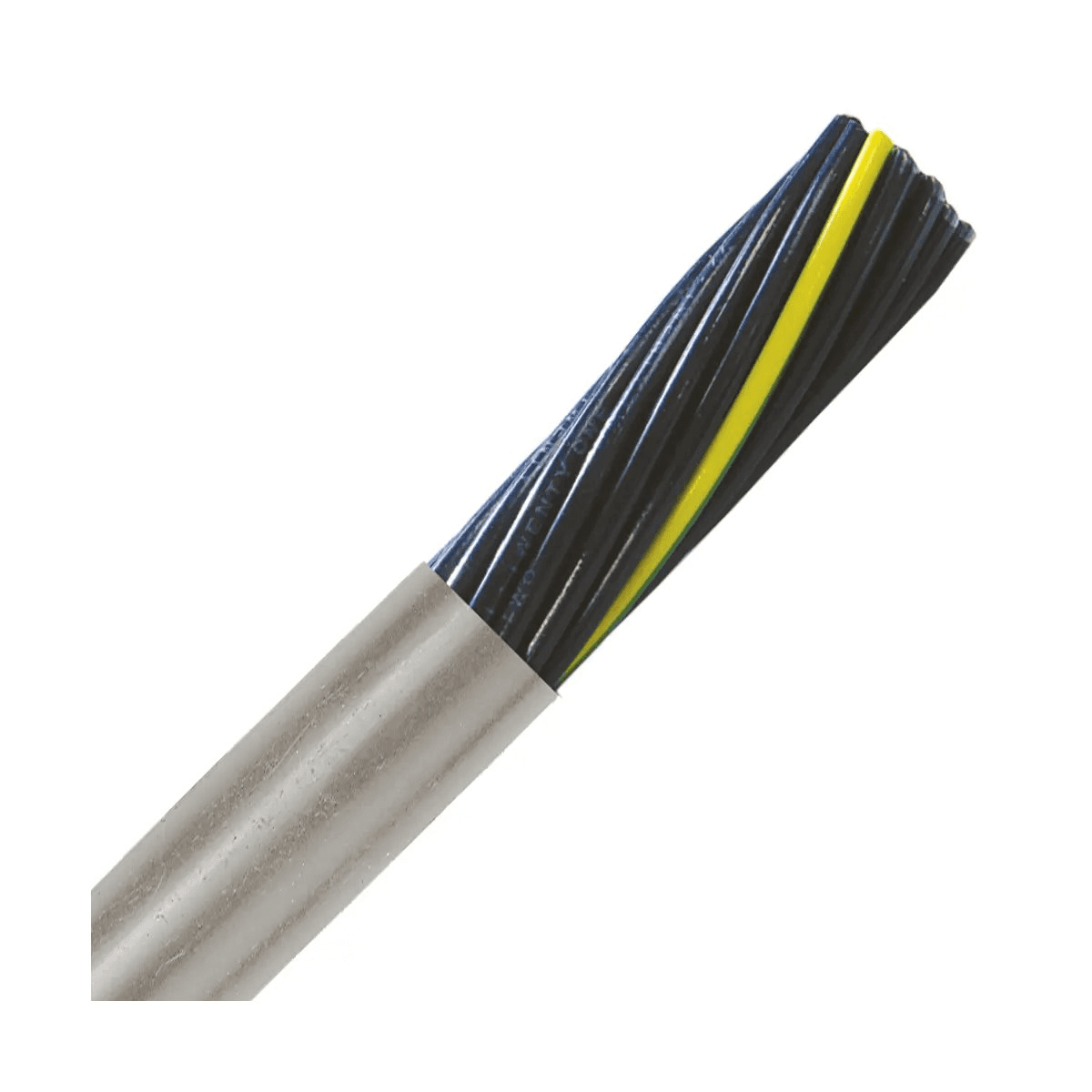

LAPP Group 601425, OLFLEX 190 Flexible Cable 25C 14 AWG 600V

Part Number: 601425

LAPP OLFLEX 190 601425 is a flexible multi-Conductor control and power Cable built for industrial environments where oil, coolant, and solvent resistance are critical. It features 25 Conductors of 14 AWG Stranded Copper with PVC Insulation and a gray thermoplastic polymer Jacket for dependable performance in dry, damp, and wet conditions. Rated 600V and -13°F to +194°F -25°C to +90°C, it’s well-suited for machinery wiring such as CNC machining centers, conveyors, and assembly lines. The black Conductors with white printing plus green/yellow ground support fast Identification during routing and termination.

Manufacturer Information:

• Manufacturer: LAPP
• Manufacturer Part Number: 601425
• Series: OLFLEX 190

Electrical & Ratings:

• Voltage Range: 600V
• Temperature: -13°F to +194°F -25°C to +90°C
• Dynamic Temperature Rating: -13°F to +194°F -25°C to +90°C
• Tray Ratings: UL TC-ER
• UL Style / Standard: UL 13 UL 2277
• Standards: UL/CSA/CE

Construction:

• Attributes: Multi-Conductor
• Number Of Conductors: 25
• Wire Size: 14 AWG
• Conductor Material: Bare Copper
• Conductor Stranding: Stranded
• Insulation: PVC
• Jacket Material: Thermoplastic Polymer
• Jacket Color: Gray
• Nominal OD (MM): 22.1
• Shielding: Unshielded

Identification:

• Conductor Color: Black with white printing plus green/yellow ground
• Number coded Conductors for easier routing and terminating

Performance Features:

• Extremely Oil Resistant (Oil Res I & II)
• Designed for control and power applications in industrial environments
• Meets NFPA79 2007 machinery wiring standard
• Round Jacket supports an optimal seal with a SKINTOP Strain Reli

Typical Applications:

• Machinery: CNC machining centers, grinding machines, bottling equipment, conveyors, processing equipment, assembly lines, and controlpanels
• Use in electrical equipment in dry, damp, and wet conditions

Compliance & Additional Details:

• RoHS Compliant: Yes
• Weight LBS/MFT: 860
