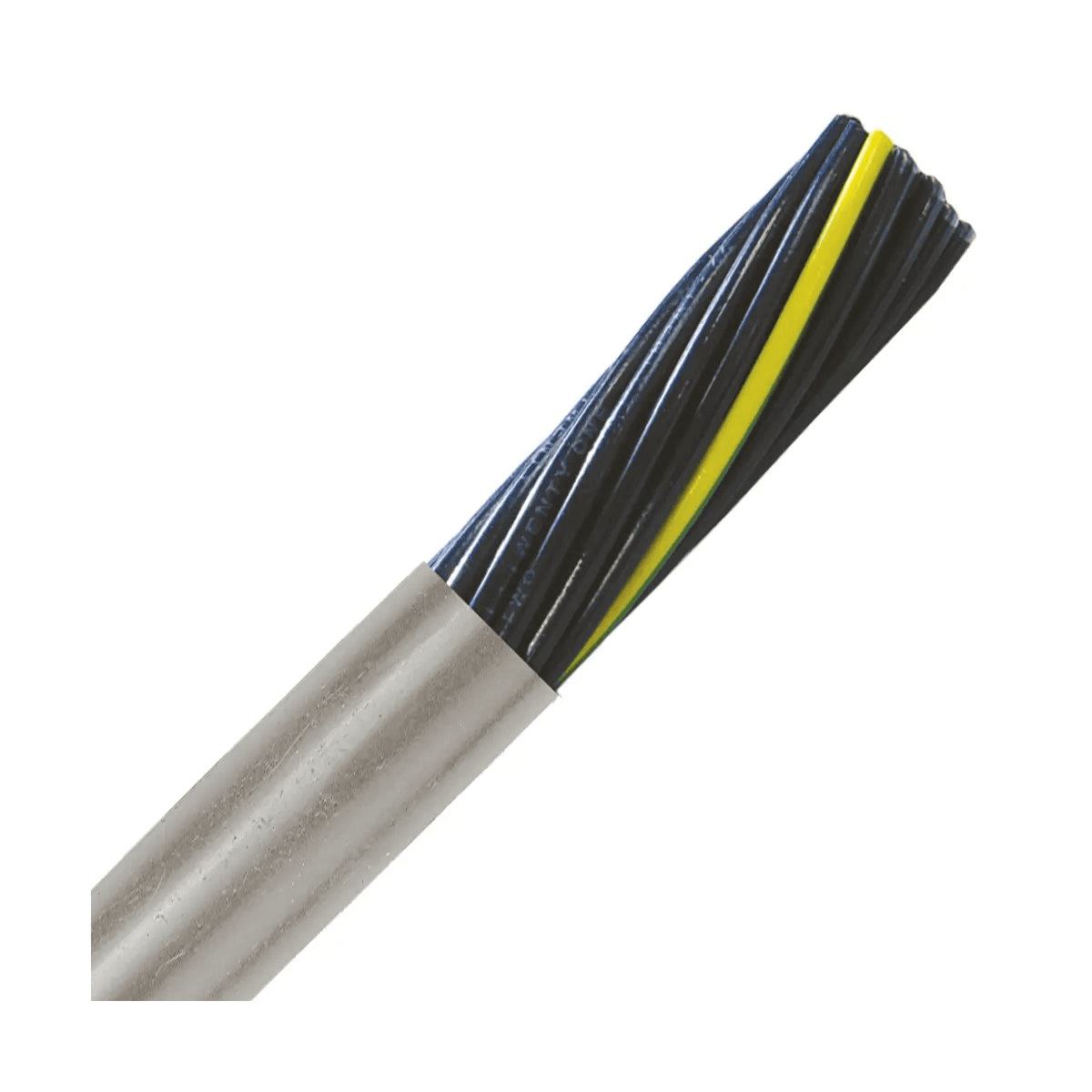

LAPP Group 601602, OLFLEX 190 16 AWG 2C 600V Flexible Cable

Part Number: 601602

LAPP Group 601602 OLFLEX 190 is a flexible 16 AWG 2-Conductor control and power Cable rated 600V for demanding industrial environments. It features a highly oil-, coolant-, and solvent-resistant Jacket and is designed for use in electrical equipment in dry, damp, and wet conditions. The round gray Jacket supports reliable sealing with a SKINTOP Strain Reli, while the black Conductors with white printing aid Identification during routing and termination. It meets NFPA79 2007 machinery wiring requirements and carries UL TC-ER tray ratings for industrial installations.

Manufacturer & Series:

• Manufacturer: LAPP
• Manufacturer Part Number: 601602
• Series: OLFLEX 190
• Attributes: Multi-Conductor
• Product Type: Flex Cont

Electrical Ratings & Compliance:

• Voltage Range: 600V
• Tray Ratings: UL TC-ER
• UL Style / Standard: UL 13 UL 2277
• Standards: UL/CSA/CE
• RoHS Compliant: Yes
• Meets NFPA79 2007 machinery wiring standard

Conductors:

• AWG/Gauge: 16
• Number Of Conductors: 2
• Conductor Material: Bare Copper
• Conductor Stranding: Stranded
• Conductor Type: Finely Stranded
• Conductor Color: Black with white printing plus green/yellow ground

Insulation & Jacket:

• Insulation: PVC
• Insulation Material: PVC-Polyvinyl Chloride
• Jacket Material: Thermoplastic Polymer
• Jacket Color: Gray
• Nominal OD (MM): 7.7
• Round Jacket for optimal seal with a SKINTOP Strain Reli

Temperature Ratings:

• Temperature: -13°F to +194°F -25°C to +90°C
• Dynamic Temperature Rating: -13°F to +194°F -25°C to +90°C

Shielding:

• Shield: Unshielded

Performance Highlights:

• Extremely Oil Resistant (Oil Res I & II)
• Excellent industrial power and Control Cable
• Very flexible and number coded for easier routing and terminating
• Designed for control and power applications in an industrial environment
• Designed for use in electrical equipment in dry, damp and wet conditions

Typical Applications:

• Machinery: CNC machining centers, Grinding machines, Bottling equipment, Conveyors, Processing equipment, Assembly lines and Controlpanels

Additional:

• Weight LBS/MFT: 57
