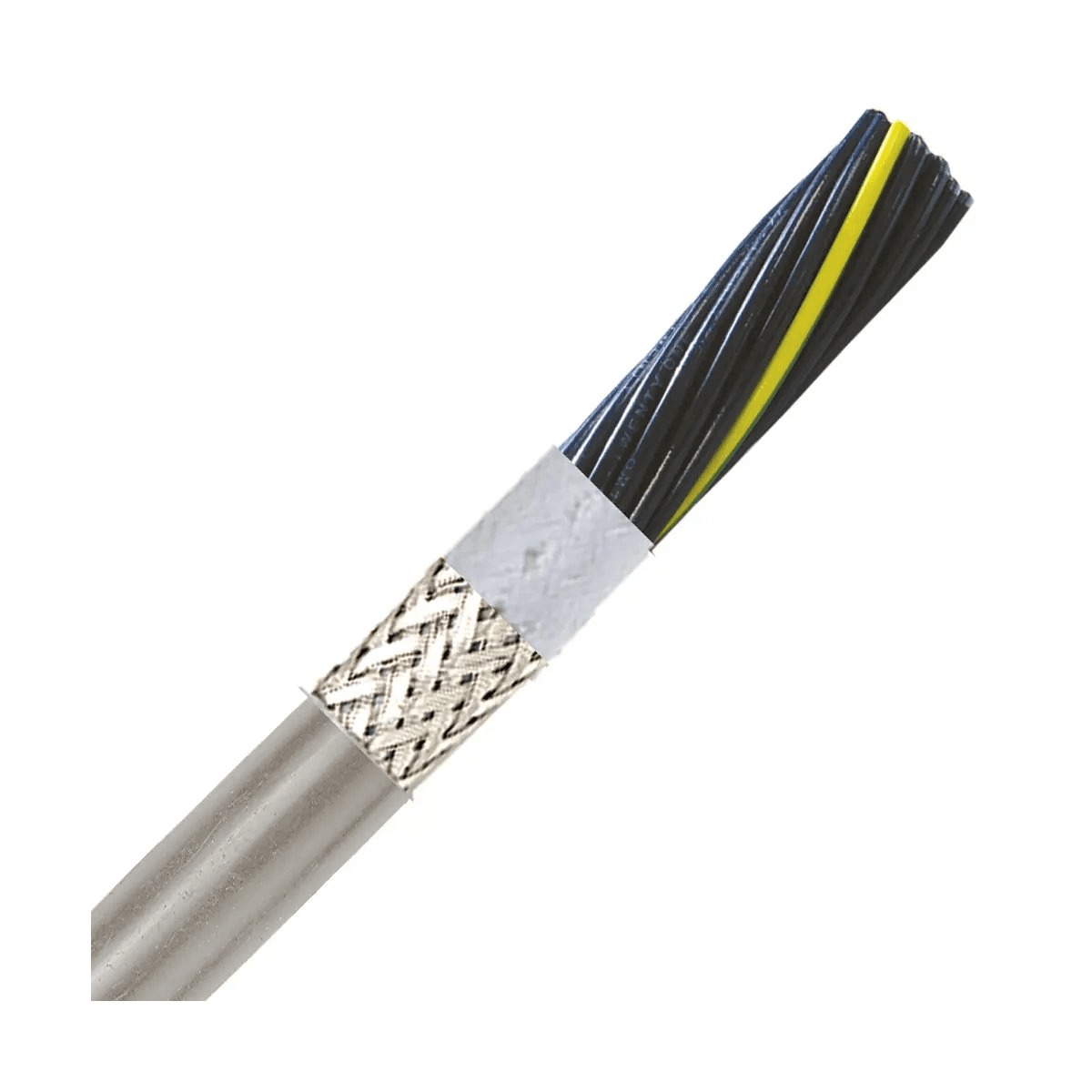

LAPP Group 601603CY, OLFLEX 190 CY 16 AWG 3C Shld 600V UL TC ER

Part Number: 601603CY

LAPP Group 601603CY OLFLEX 190 CY is a flexible, Shielded multi-Conductor Control Cable built for demanding industrial machinery and control applications. It features 16 AWG 3-Conductor Construction with a gray thermoplastic polymer Jacket and PVC Insulation, supporting 600V service. Designed for harsh environments, it offers extremely high oil resistance (Oil Res I & II) and meets NFPA79 2007 machinery wiring requirements. The round Jacket helps provide an optimal seal when used with a SKINTOP Strain Reli, and the Conductors are black with white printing plus green/yellow ground for straightforward Identification.

Key Features & Benefits:

• Extremely Oil Resistant (Oil Res I & II)
• Meets NFPA79 2007 machinery wiring standard
• Excellent industrial power and Control Cable performance
• Very flexible and number coded for easier routing and terminating
• Round Jacket for optimal seal with a SKINTOP Strain Reli

Typical Applications:

• Machinery wiring for CNC machining centers
• Grinding machines
• Bottling equipment
• Conveyors
• Processing equipment
• Assembly lines
• Control panels

Electrical:

• Voltage range: 600V
• Tray ratings: UL TC-ER
• UL style / standard: UL 13 UL 2277
• Standards: UL/CSA/CE

Construction:

• Attributes: Multi-Conductor
• AWG/gauge: 16
• Number Of Conductors: 3
• Conductor Stranding: Stranded
• Conductor Type: Finely Stranded
• Conductor Material: Bare Copper
• Conductor color: Black with white printing plus green/yellow ground
• Insulation: PVC
• Insulation Material: PVC-Polyvinyl Chloride
• Jacket Color: Gray
• Jacket Material: Thermoplastic Polymer
• Shield: Shielded
• Shield Type: Braid

Environmental & Mechanical:

• Temperature: -13°F to +194°F -25°C to +90°C
• Dynamic Temperature Rating: -13°F to +194°F -25°C to +90°C
• Nominal OD (mm): 10
• Weight lbs/mft: 115
• RoHS compliant: Yes

Manufacturer Information:

• Manufacturer: LAPP
• Manufacturer part number: 601603CY
