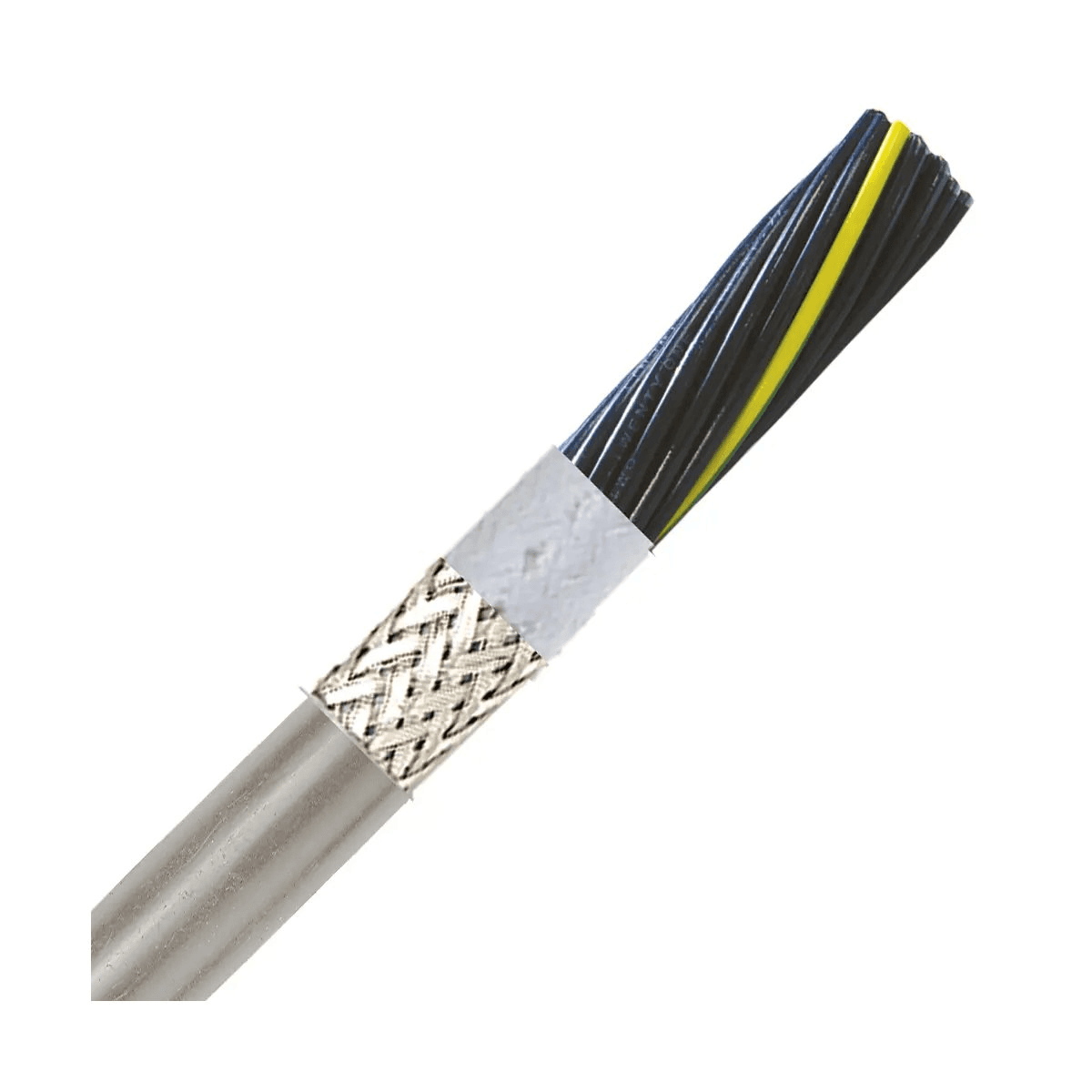

LAPP Group 601604CY, Flexible Control Power Cable 4C 16 AWG PVC Gray

Part Number: 601604CY

LAPP Group 601604CY is a flexible control power Cable designed for demanding industrial machinery and control applications. It features 4 Conductors of 16 AWG Stranded Bare Copper with black Conductors and white printing plus green/yellow ground for clear Identification during routing and termination. Built with PVC Insulation and a gray thermoplastic polymer Jacket, it delivers strong oil resistance (Oil Res I & II) and supports UL TC-ER tray ratings. This Cable is well-suited for CNC machining centers, conveyors, processing equipment, assembly lines, and control panels, with a round Jacket profile that helps provide an optimal seal with a SKINTOP Strain Reli.

Electrical & Compliance:

• Voltage range: 600V
• Tray ratings: UL TC-ER
• UL style / standard: UL 13 UL 2277
• Standards: UL/CSA/CE
• RoHS compliant: Yes
• Meets NFPA79 2007 machinery wiring standard

Construction:

• Attributes: Multi-Conductor
• Number Of Conductors: 4
• AWG/gauge: 16
• Conductor Material: Bare Copper
• Conductor Stranding: Stranded
• Conductor Type: Finely Stranded
• Conductor color: Black with white printing plus green/yellow ground
• Insulation: PVC
• Jacket Material: Thermoplastic Polymer
• Jacket Color: Gray
• Shield: Shielded
• Shield Type: Braid

Dimensions & Temperature:

• Nominal OD (mm): 10.7
• Temperature: -13°F to +194°F -25°C to +90°C
• Dynamic Temperature Rating: -13°F to +194°F -25°C to +90°C
• Weight lbs/mft: 128

Performance & Application:

• Extremely Oil Resistant (Oil Res I & II)
• Excellent industrial power and Control Cable
• Very flexible and number coded for easier routing and terminating
• Round Jacket for optimal seal with a SKINTOP Strain Reli
• For machinery: CNC machining centers, Grinding machines, Bottling equipment, Conveyors, Processing equipment, Assembly lines and Controlpanels
