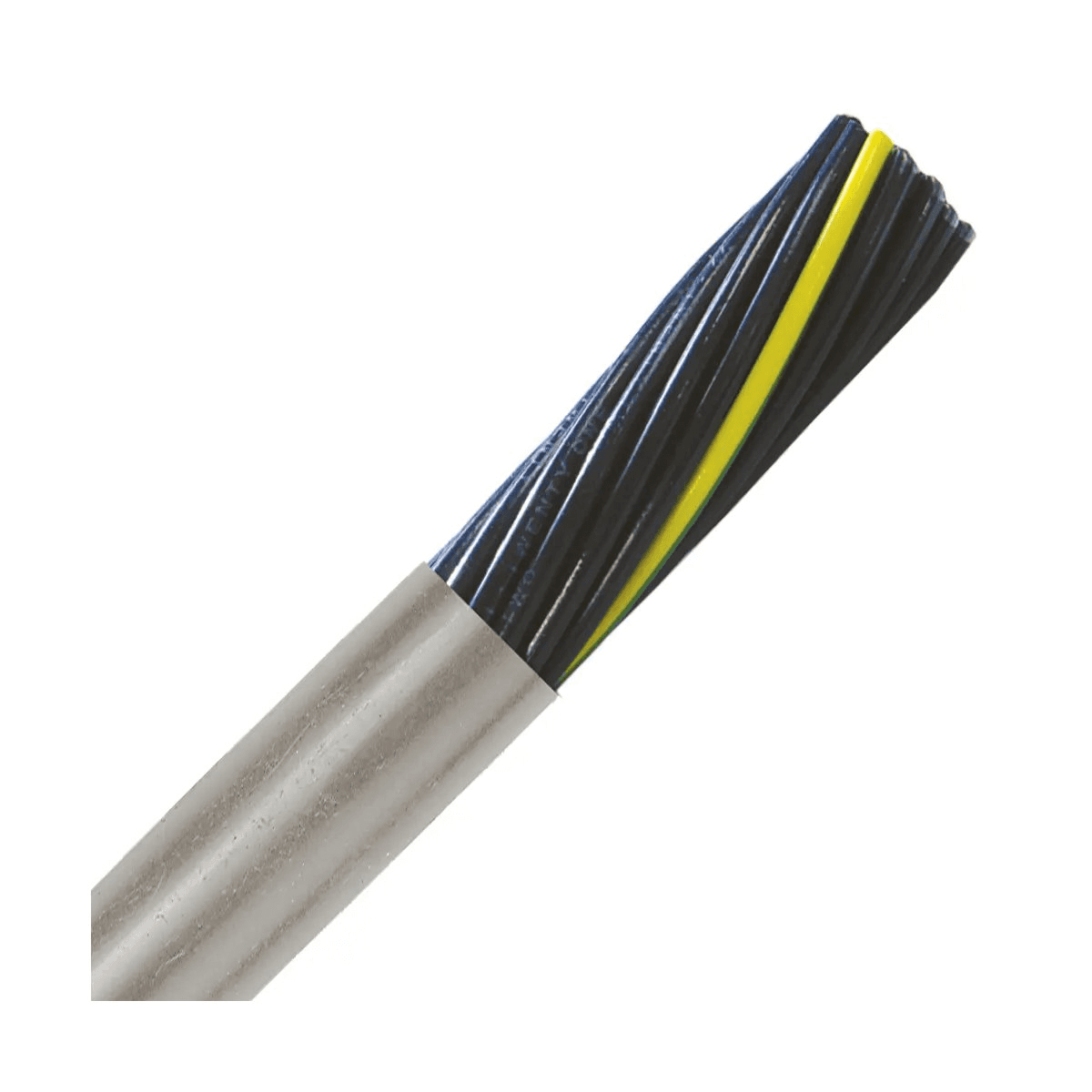

LAPP Group 601612, OLFLEX 190 Flexible Cable 12C 16 AWG 600V

Part Number: 601612

LAPP OLFLEX 190 601612 is a flexible multi-Conductor control and power Cable built for industrial environments where oil, coolant, and solvent resistance are critical. It features 12 Conductors of 16 AWG Stranded Copper with black Insulation and white printing plus a green/yellow ground, all protected by a gray thermoplastic polymer Jacket. Rated 600V and UL TC-ER, it supports machinery wiring applications in dry, damp, and wet conditions. The round Jacket design helps provide an optimal seal when used with a SKINTOP Strain Reli, and the Cable is number coded for easier routing and termination.

Key Features & Benefits:

• Extremely Oil Resistant (Oil Res I & II)
• Meets NFPA79 2007 machinery wiring standard
• Very flexible and number coded for easier routing and terminating
• Round Jacket for optimal seal with a SKINTOP Strain Reli
• Designed for control and power applications in industrial environments

Applications:

• Machinery: CNC machining centers, grinding machines, bottling equipment, conveyors, processing equipment, assembly lines and controlpanels
• Electrical equipment in dry, damp and wet conditions

Electrical Ratings & Standards:

• Voltage Rating: 600V
• Tray ratings: UL TC-ER
• UL style / standard: UL 13, UL 2277
• Standards: UL/CSA/CE
• RoHS compliant: Yes

Construction:

• Manufacturer: LAPP
• Manufacturer part number: 601612
• Attributes: Multi-Conductor
• Number Of Conductors: 12
• Wire size: 16 AWG
• Conductor Stranding: Stranded
• Conductor color: Black with white printing plus green/yellow ground
• Insulation: PVC
• Jacket Material: Thermoplastic Polymer
• Jacket Color: Gray
• Shielding: Unshielded

Dimensions & Weight:

• Nominal OD (MM): 14.1
• Weight LBS/MFT: 209

Temperature Ratings:

• Temperature: -13°F to +194°F -25°C to +90°C
• Dynamic Temperature Rating: -13°F to +194°F -25°C to +90°C
