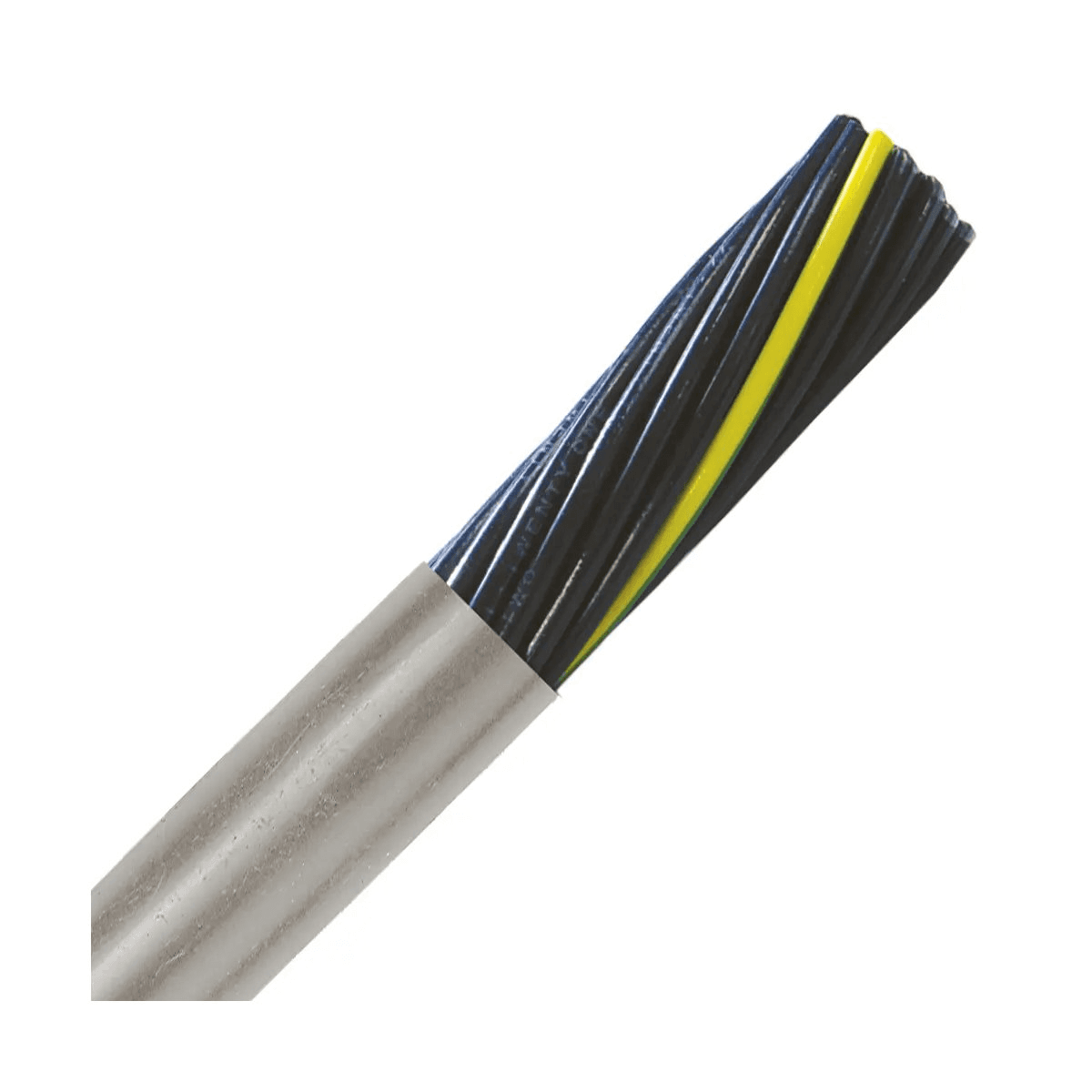

LAPP Group 601834, OLFLEX 190 Flexible Cable 34C 18 AWG 600V
SKU:601834
● In stock
ft
Minimum order: 100 ft · Increments of 100 ft
Description
Part Number: 601834
LAPP OLFLEX 190 601834 is a flexible 34-Conductor 18 AWG multi-Conductor Cable rated 600V for industrial power and control applications. It features a thermoplastic polymer gray Jacket with PVC Insulation and is designed for use in dry, damp, and wet conditions. The Cable is extremely Oil Resistant (Oil Res I & II) and meets the NFPA79 2007 machinery wiring standard for dependable machine wiring. Its Stranded construction and number-coded Conductors support easier routing and termination in equipment such as CNC machining centers, conveyors, and control panels.
Electrical & Ratings:
- Voltage range: 600V
- Tray ratings: UL TC-ER
- UL style / standard: UL 13, UL 2277
- Standards: UL/CSA/CE
- Temperature: -13°F to +194°F -25°C to +90°C
- Dynamic Temperature Rating: -13°F to +194°F -25°C to +90°C
Construction:
- Manufacturer: LAPP
- Manufacturer part number: 601834
- Attributes: Multi-Conductor
- Number Of Conductors: 34
- Wire size: 18 AWG
- Conductor Stranding: Stranded
- Conductor Material: Bare Copper
- Conductor color: Black with white printing plus green/yellow ground
- Insulation: PVC
- Jacket Material: Thermoplastic Polymer
- Jacket Color: Gray
- Nominal OD (mm): 19.3
- Shield: Unshielded
Compliance:
- RoHS compliant: Yes
Performance Features:
- Extremely Oil Resistant (Oil Res I & II) for demanding industrial environments
- Highest oil, coolant and solventresistant PVC Jacket for control and power applications
- Very flexible and number coded for easier routing and terminating
- Round Jacket supports an optimal seal with a SKINTOP Strain Reli
- Meets NFPA79 2007 machinery wiring standard
Typical Applications:
- Machinery wiring in dry, damp and wet conditions
- CNC machining centers
- Grinding machines
- Bottling equipment
- Conveyors
- Processing equipment
- Assembly lines and Controlpanels
Additional Details:
- Weight lbs/mft: 575
LAPP Group™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
