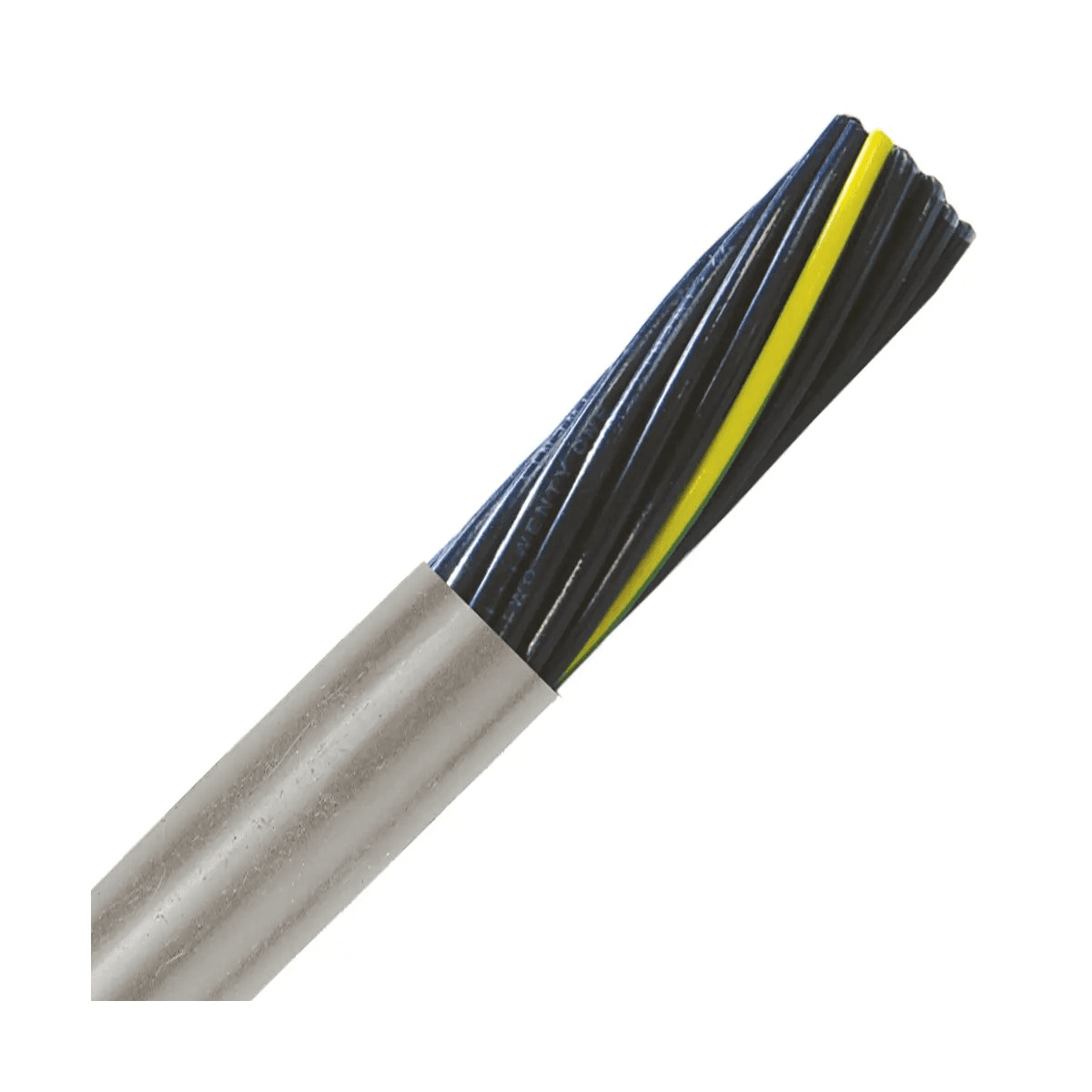

LAPP Group 601850, Control Power Cable 50C 18 AWG Unshielded PVC

Part Number: 601850

LAPP Group 601850 is a flexible, multi-Conductor control and power Cable built for industrial environments where oil, coolant, and solvent resistance are critical. It features 50 Stranded 18 AWG Conductors with black Insulation and white printing, plus a green/yellow ground, all under a gray thermoplastic polymer Jacket. Designed for use in dry, damp, and wet conditions, it supports demanding machinery wiring applications and meets UL TC-ER tray requirements. With a Temperature Range of -13°F to +194°F (-25°C to +90°C) and a nominal OD (MM) of 23.5, it’s well-suited for routing and termination in control panels and automated equipment.

Key Features & Benefits:

• Extremely Oil Resistant (Oil Res I & II)
• Meets NFPA79 2007 machinery wiring standard
• Flexible, number-coded Conductors for easier routing and terminating
• Round Jacket design helps provide an optimal seal with a SKINTOP Strain Reli
• Excellent industrial control and power Cable for equipment wiring

Typical Applications:

• Machinery wiring for CNC machining centers, grinding machines, bottling equipment, conveyors, processing equipment, assembly lines, and controlpanels
• Electrical equipment in dry, damp, and wet conditions
• Control and power applications in industrial environments

Electrical & Standards:

• Voltage range: 600V
• Tray ratings: UL TC-ER
• UL style / standard: UL 13 UL 2277
• Standards: UL/CSA/CE
• RoHS compliant: Yes

Construction Details:

• Manufacturer: LAPP
• Manufacturer part number: 601850
• Attributes: Multi-Conductor
• Number Of Conductors: 50
• AWG/gauge: 18
• Conductor Stranding: Stranded
• Conductor Material: Bare Copper
• Conductor color: Black with white printing plus green/yellow ground
• Insulation: PVC
• Jacket Material: Thermoplastic Polymer
• Jacket Color: Gray
• Shield: Unshielded
• Nominal OD (MM): 23.5
• Weight lbs/mft: 825

Temperature Ratings:

• Temperature: -13°F to +194°F -25°C to +90°C
• Dynamic Temperature Rating: -13°F to +194°F -25°C to +90°C
