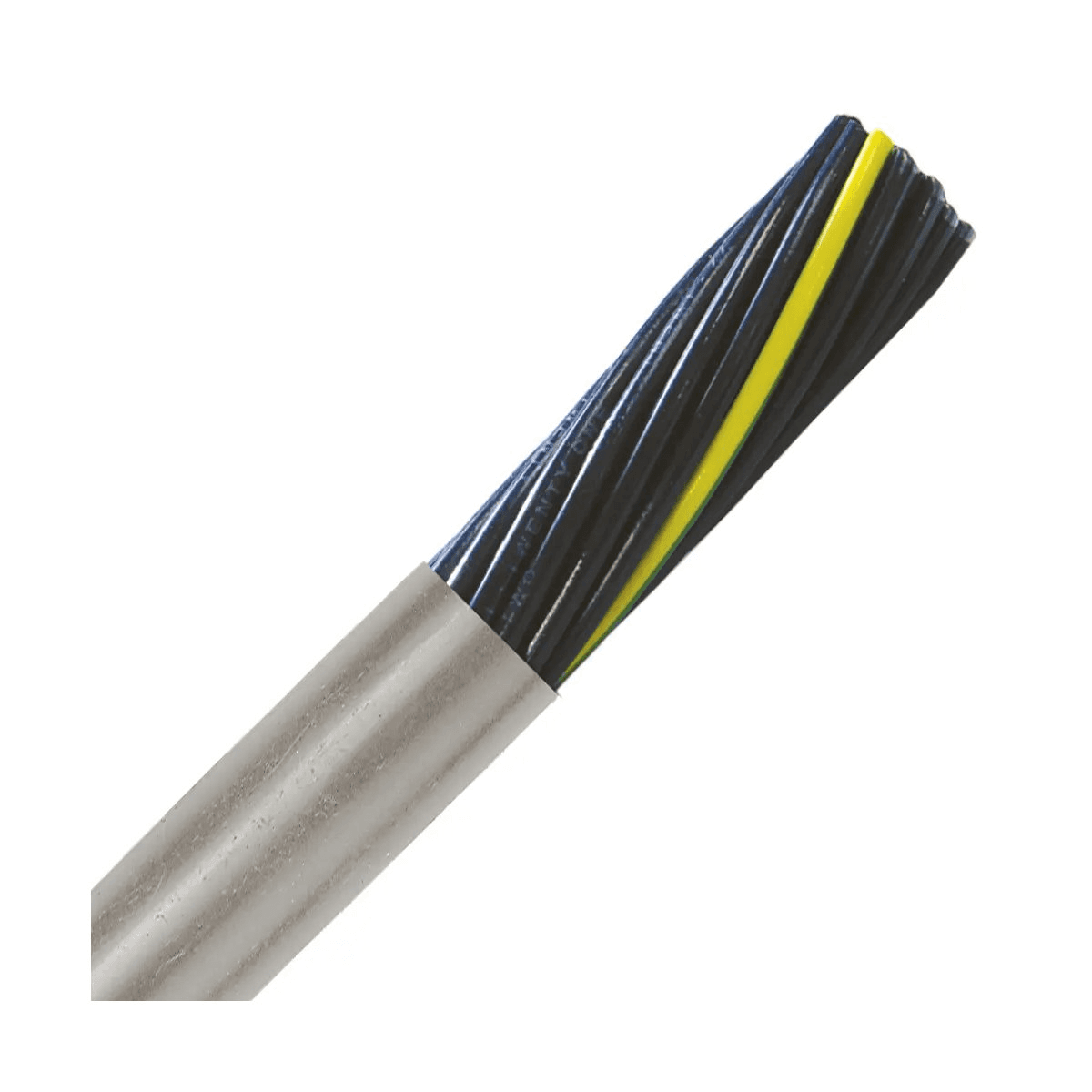

LAPP Group 602003, OLFLEX 190 3C 20 AWG 600V Flexible Cable
SKU:602003
● In stock
ft
Minimum order: 100 ft · Increments of 100 ft
Description
Part Number: 602003
LAPP OLFLEX 190 602003 is a flexible, multi-Conductor control and power Cable built for industrial environments where oil, coolant, and solvent resistance is critical. It features 3 Stranded 20 AWG Conductors with black Insulation and white printing plus a green/yellow ground, all protected by a gray thermoplastic polymer Jacket. Rated 600V and designed for dry, damp, and wet conditions, it supports reliable routing and termination in machinery and control applications. This Cable meets NFPA79 2007 machinery wiring requirements and carries UL PLTC-ER and UL TC-ER tray ratings for demanding installations.
Key Features & Benefits:
- Extremely Oil Resistant (Oil Res I & II)
- Very flexible and number coded for easier routing and terminating
- Round Jacket design supports an optimal seal with a SKINTOP Strain Reli
- Meets NFPA79 2007 machinery wiring standard
- Excellent industrial power and Control Cable for harsh environments
Electrical & Ratings:
- Voltage Rating: 600V
- Tray ratings: UL PLTC-ER, UL TC-ER
- UL style / standard: UL 13, UL 2277
- Standards: UL/CSA
Construction:
- Wire type: Multi-Conductor
- Number Of Conductors: 3
- Conductor Size: 20 AWG
- Conductor Stranding: Stranded
- Conductor color: Black with white printing plus green/yellow ground
- Insulation: PVC
- Jacket Color: Gray
- Jacket Material: Thermoplastic Polymer
- Nominal OD (mm): 6.7
- Shielding: Unshielded
Temperature & Environmental:
- Temperature: -13°F to +194°F -25°C to +90°C
- Dynamic Temperature Rating: -13°F to +194°F -25°C to +90°C
- Designed for use in dry, damp and wet conditions
Compliance & Identification:
- RoHS compliant: Yes
- Manufacturer: LAPP
- Manufacturer part number: 602003
- Weight lbs/mft: 42
Typical Applications:
- Machinery: CNC machining centers, Grinding machines, Bottling equipment, Conveyors, Processing equipment, Assembly lines and Controlpanels
- Control and power applications in industrial environments
LAPP Group™ and all associated trademarks are the property of their respective owners.
