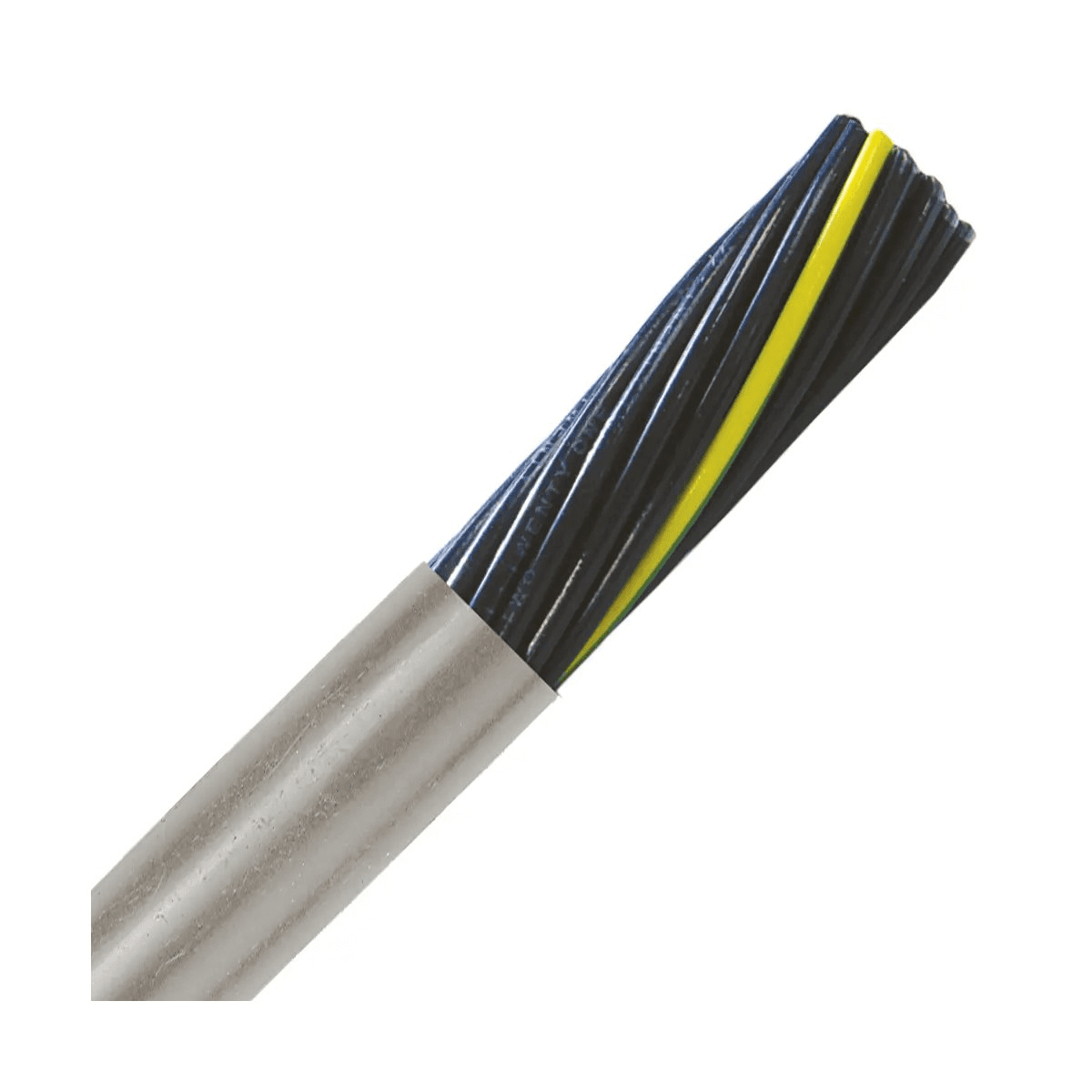

LAPP Group 602007, OLFLEX 190 7C 20 AWG 600V Flexible Cable

Part Number: 602007

LAPP OLFLEX 190 602007 is a flexible, multi-Conductor control and power Cable built for industrial environments where oil, coolant, and solvent resistance are critical. It features 7 Stranded 20 AWG Conductors with black Insulation and white printing plus a green/yellow ground, all protected by a gray thermoplastic polymer Jacket. Rated 600V and designed for dry, damp, and wet conditions, it supports reliable routing and termination with number-coded Conductors. This Cable is well-suited for machinery and automation applications such as CNC machining centers, conveyors, assembly lines, and control panels.

Manufacturer Information:

• Manufacturer: LAPP
• Manufacturer Part Number: 602007

Electrical & Compliance:

• Voltage range: 600V
• Tray ratings: UL PLTC-ER, UL TC-ER
• UL style / standard: UL 13, UL 2277
• Standards: UL/CSA
• RoHS compliant: Yes

Construction:

• Attributes: Multi-Conductor
• Product type: Flex Cont
• Number Of Conductors: 7
• Conductor Size: 20 AWG
• Conductor Stranding: Stranded
• Conductor Material: Bare Copper
• Conductor color: Black with white printing plus green/yellow ground
• Insulation: PVC
• Jacket Material: Thermoplastic Polymer
• Jacket Color: Gray
• Shielding: Unshielded

Dimensions & Weight:

• Nominal OD (mm): 8.4
• Weight lbs/mft: 82

Temperature Ratings:

• Temperature: -13°F to +194°F -25°C to +90°C
• Dynamic Temperature Rating: -13°F to +194°F -25°C to +90°C

Performance Features:

• Extremely Oil Resistant (Oil Res I & II)
• Meets NFPA79 2007 machinery wiring standard
• Very flexible and number coded for easier routing and terminating
• Round Jacket supports an optimal seal with a SKINTOP Strain Reli
• Designed for control and power applications in industrial environments, including dry, damp, and wet conditions

Typical Applications:

• Machinery: CNC machining centers, grinding machines, bottling equipment, conveyors, processing equipment, assembly lines, and controlpanels
