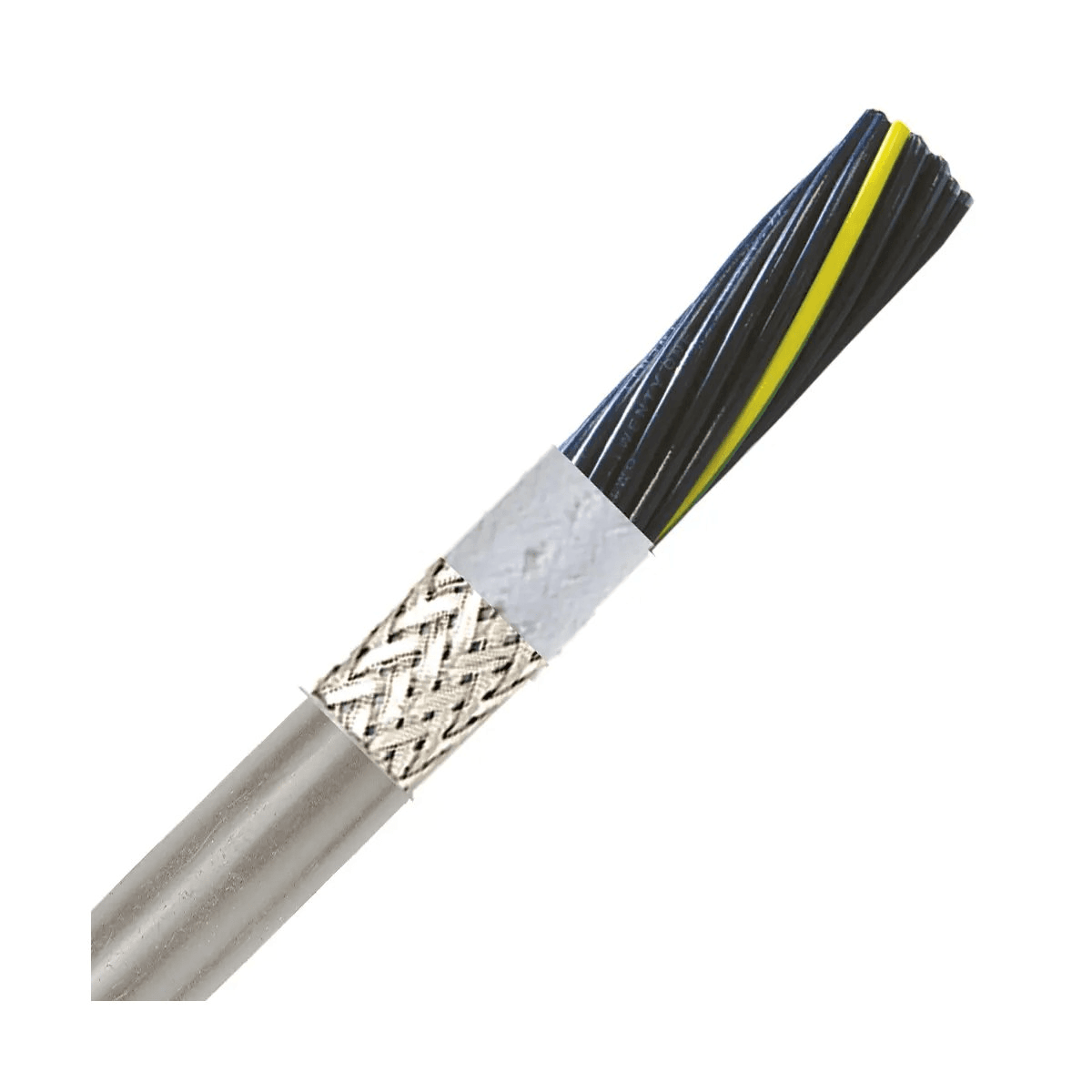

LAPP Group 602007CY, OLFLEX 190 CY 20 AWG 7C Shielded 600V

Part Number: 602007CY

LAPP Group 602007CY OLFLEX 190 CY is a flexible, Shielded multi-Conductor Control Cable built for demanding industrial machinery and control applications. It features 20 AWG Stranded Conductors in a 7-Conductor Construction with a Braid Shield to help reduce electrical interference. Designed for harsh environments, it is extremely Oil Resistant (Oil Res I & II) and meets the NFPA79 2007 machinery wiring standard. With a 600V rating and UL PLTC-ER and UL TC-ER tray ratings, it’s well-suited for CNC machining centers, conveyors, processing equipment, and control panels.

Electrical & Compliance:

• Voltage range: 600V
• Tray ratings: UL PLTC-ER, UL TC-ER
• UL style / standard: UL 13, UL 2277
• Standards: UL/CSA
• RoHS compliant: Yes

Construction:

• Attributes: Multi-Conductor
• Number Of Conductors: 7
• Conductor Size: 20 AWG
• Conductor Stranding: Stranded
• Conductor Material: Bare Copper
• Insulation: PVC
• Jacket Material: Thermoplastic Polymer
• Product type: Flex Cont

Shielding:

• Shield: Shielded
• Shield Type: Braid

Colors & Identification:

• Conductor color: Black with white printing plus green/yellow ground
• Jacket Color: Gray
• Number coded Conductors for easier routing and termination

Temperature & Physical:

• Temperature: -13°F to +194°F -25°C to +90°C
• Dynamic Temperature Rating: -13°F to +194°F -25°C to +90°C
• Nominal OD (mm): 10.3
• Weight lbs/mft: 112

Performance Features:

• Extremely Oil Resistant (Oil Res I & II)
• Meets NFPA79 2007 machinery wiring standard
• Excellent industrial power and Control Cable performance
• Round Jacket supports an optimal seal with a SKINTOP Strain Reli

Typical Applications:

• Machinery wiring for CNC machining centers, grinding machines, bottling equipment, conveyors, processing equipment, assembly lines, and control panels

Manufacturer Information:

• Manufacturer: LAPP
• Manufacturer part number: 602007CY

LAPP Group™ and all associated trademarks are the property of their respective owners.
