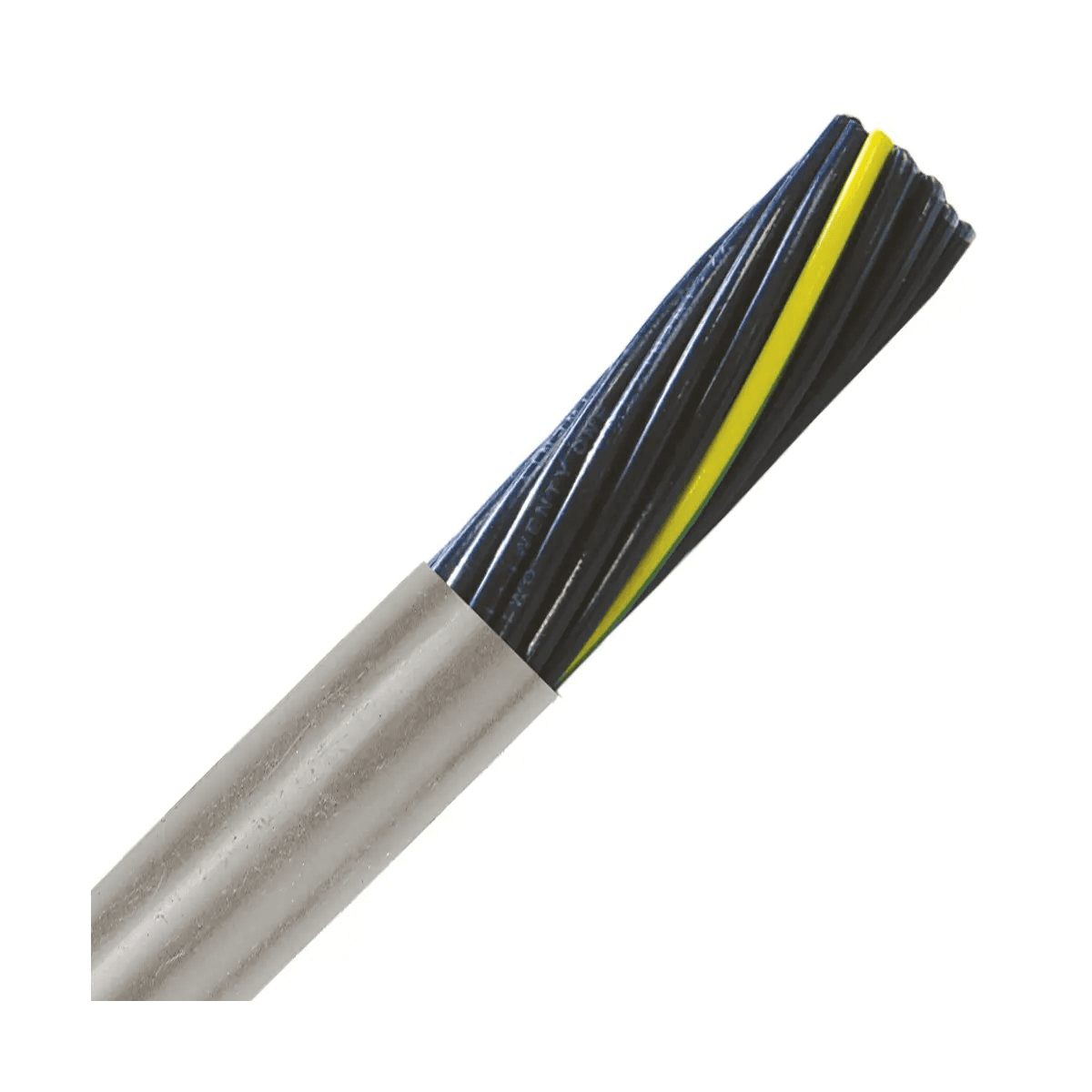

LAPP Group 602009, OLFLEX 190 9C 20 AWG 600V Flexible Cable

Part Number: 602009

LAPP 602009 OLFLEX 190 is a flexible 600V multi-Conductor control and power Cable built for industrial environments where oil, coolant, and solvent resistance are critical. It features 9 Stranded 20 AWG Conductors with black Insulation and white printing, plus a green/yellow ground, all under a gray thermoplastic polymer Jacket. Designed for use in dry, damp, and wet conditions, it supports easy routing and termination with number-coded Conductors and a round Jacket profile. Common applications include machinery and automation equipment such as CNC machining centers, conveyors, assembly lines, and control panels.

Key Features & Benefits:

• Extremely Oil Resistant (Oil Res I & II)
• Very flexible design with number-coded Conductors for easier routing and terminating
• Round Jacket for an optimal seal with a SKINTOP Strain Reli
• Meets NFPA79 2007 machinery wiring standard
• Excellent industrial power and Control Cable for demanding environments

Electrical & Ratings:

• Voltage range: 600V
• Tray ratings: UL PLTC-ER, UL TC-ER
• UL style / standard: UL 13, UL 2277
• Standards: UL/CSA

Construction:

• Attributes: Multi-Conductor
• Number Of Conductors: 9
• Conductor Size: 20 AWG
• Conductor Stranding: Stranded
• Conductor Material: Bare Copper
• Conductor color: Black with white printing plus green/yellow ground
• Insulation: PVC
• Jacket Color: Gray
• Jacket Material: Thermoplastic Polymer
• Shield: Unshielded

Environmental & Compliance:

• Temperature: -13°F to +194°F -25°C to +90°C
• Dynamic Temperature Rating: -13°F to +194°F -25°C to +90°C
• RoHS compliant: Yes

Dimensions & Weight:

• Nominal OD (mm): 10.4
• Weight lbs/mft: 100

Typical Applications:

• Machinery wiring and industrial control/power in dry, damp, and wet conditions
• CNC machining centers, grinding machines, bottling equipment, conveyors, processing equipment, assembly lines, and controlpanels
