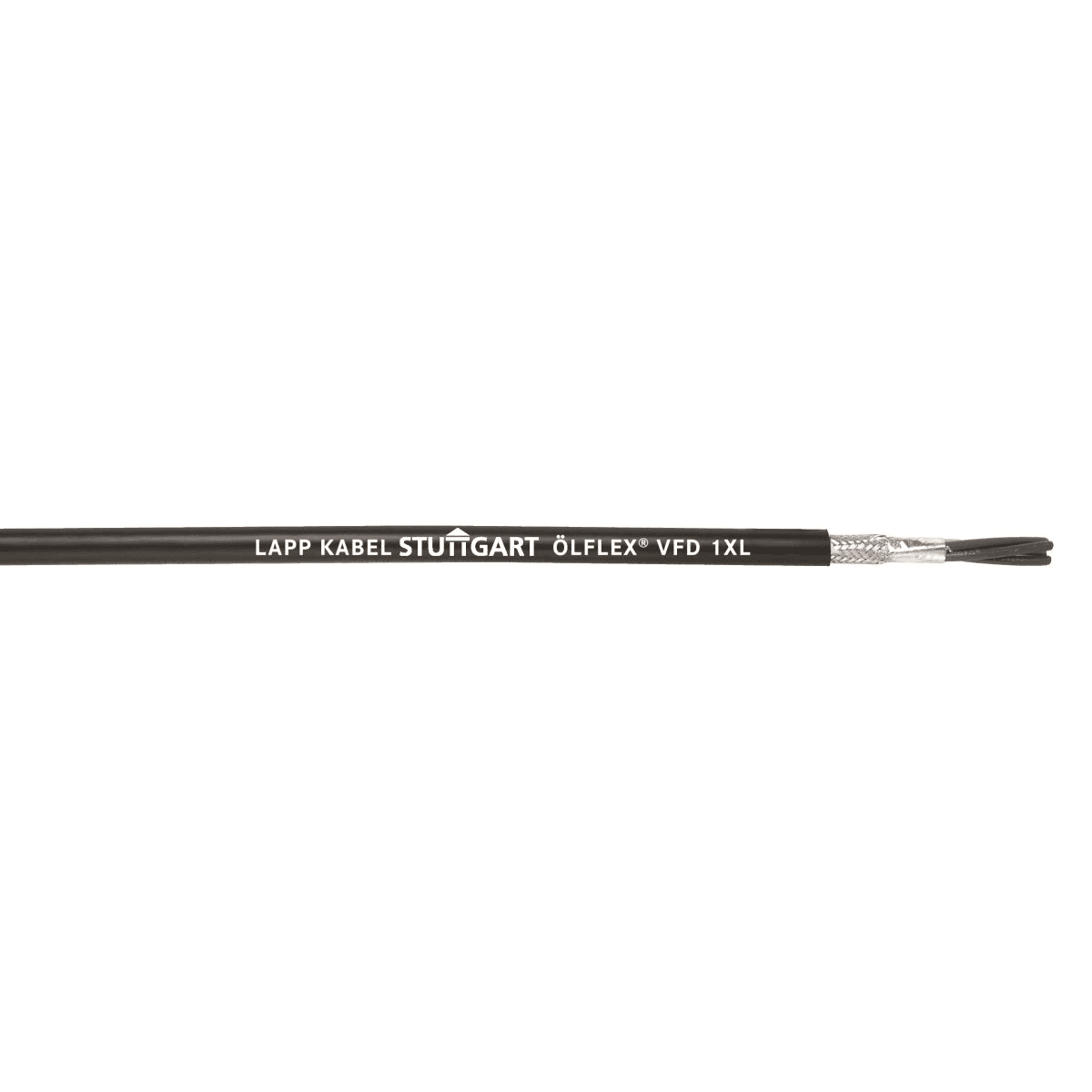

LAPP Group 701703, Power Cable

Part Number: 701703

LAPP Group 701703 is a Shielded, multi-Conductor power Cable built for demanding VFD applications. It features 4 Conductors in 10 AWG Stranded construction with a Braid Shield to help reduce electrical noise in drive systems. The Cable uses XLPE (plus) Insulation and a black Thermoplastic Elastomer (TPE) Jacket for durable performance. It is rated for 1KV and operates from -13°F to +194°F (-25°C to +90°C), with a dynamic Temperature Rating of -13°F to +194°F (-40°C to +90°C).

General:

• Manufacturer: LAPP
• Manufacturer Part Number: 701703
• Product Type: VFD
• Attributes: Multi-Conductor

Conductors:

• AWG/Gauge: 10
• Number Of Conductors: 4
• Conductor Stranding: Stranded
• Conductor Material: Tinned Or Coated Copper
• Earth/Ground Wires: Yes
• Number of Ground Wires: 1 Wire

Shielding:

• Shielding: Shielded
• Shield Type: Braid

Materials & Construction:

• Insulation: XLPE (plus)
• Insulation Material: XLPE-CROSS-LINKED POLYETHYLENE
• Jacket Color: Black
• Jacket Material: Thermoplastic Elastomer (TPE)
• Jacket Material: TPE Thermoplastic Elastomer
• Nominal OD (MM): 12.8
• Armor: No
• Composite: No

Electrical & Temperature Ratings:

• Voltage Range: 1KV
• Temperature: -13°F to +194°F -25°C to +90°C
• Dynamic Temperature Rating: -13°F to +194°F -40°C to +90°C

Standards & Approvals:

• Standards/Approvals: UL Approved
• Standards/Approvals: CE Approved
• Standards/Approvals: XHHW
