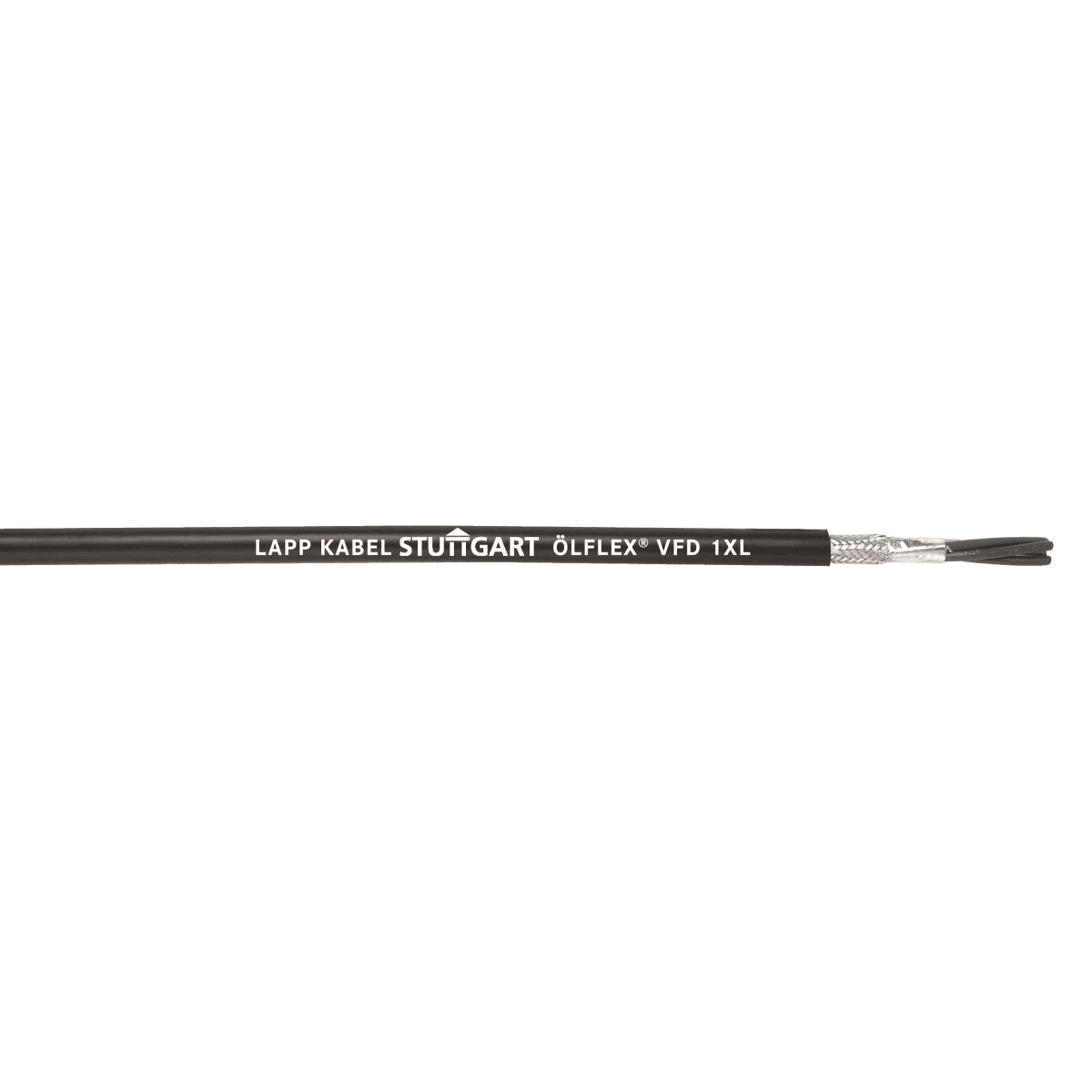

LAPP Group 701704, Power Cable

Part Number: 701704

LAPP Group 701704 is a Shielded, multi-Conductor power Cable designed for demanding power and drive applications. It features 4 Conductors in 8 AWG Stranded construction with a Braid Shield to help reduce electrical noise. Built with XLPE (plus) Insulation and a black Thermoplastic Elastomer (TPE) Jacket, it offers durable performance with a nominal OD (MM) of 17.9. This VFD Cable is rated for 1KV and supports operation from -13°F to +194°F (-25°C to +90°C), with a dynamic Temperature Rating of -13°F to +194°F (-40°C to +90°C).

Part Number & Type:

• Manufacturer: LAPP
• Manufacturer Part Number: 701704
• Product Type: VFD
• Attributes: Multi-Conductor

Conductors:

• AWG/Gauge: 8
• Number Of Conductors: 4
• Conductor Stranding: Stranded
• Conductor Material: Tinned Or Coated Copper
• Earth/Ground Wires: Yes
• Number of Ground Wires: 1 Wire

Shielding:

• Shielding: Shielded
• Shield Type: Braid

Materials & Construction:

• Insulation: XLPE (plus)
• Insulation Material: XLPE-cross-linked polyethylene
• Jacket Material: Thermoplastic Elastomer (TPE)
• Jacket Color: Black
• Armor: No
• Composite: No
• Nominal OD (MM): 17.9

Electrical & Temperature Ratings:

• Voltage Range: 1KV
• Temperature: -13°F to +194°F -25°C to +90°C
• Dynamic Temperature Rating: -13°F to +194°F -40°C to +90°C

Standards & Approvals:

• Standards/Approvals: UL Approved
• Standards/Approvals: CE Approved
• Standards/Approvals: XHHW
