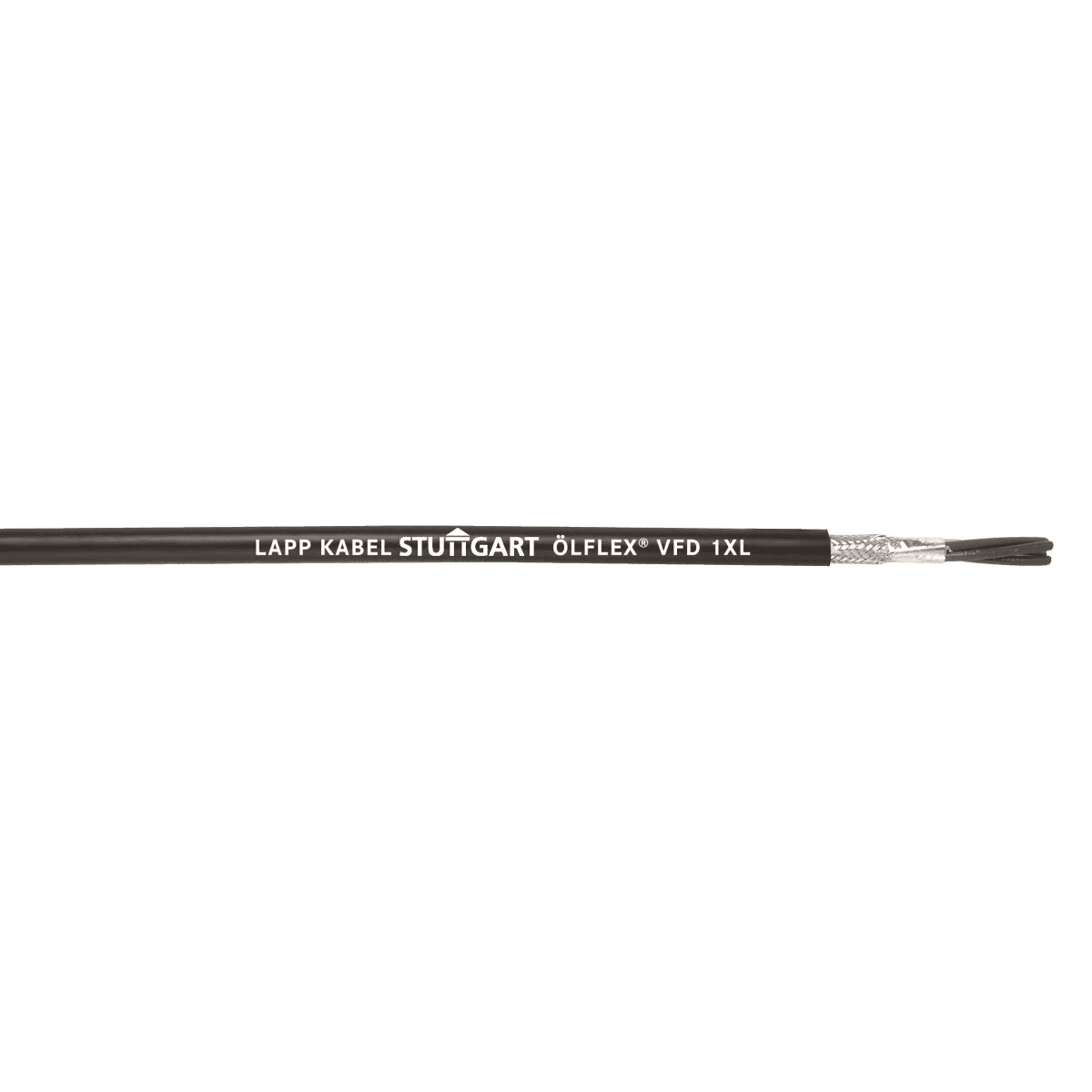

LAPP Group 701705, Power Cable

Part Number: 701705

LAPP Group 701705 is a 6 AWG, 4 Conductor VFD power Cable built for reliable performance in demanding installations. It features Stranded, Tinned Or Coated Copper Conductors with XLPE (plus) Insulation and a black Thermoplastic Elastomer (TPE) Jacket for flexibility and durability. A Braid Shield helps reduce electrical noise, and the design includes earth/ground wires for safer system grounding. Rated 1KV and approved to UL Approved, CE Approved, and XHHW, it supports operating temperatures from -13°F to +194°F (-25°C to +90°C) with a dynamic Temperature Rating up to -40°C to +90°C.

Part Number & Type:

• Manufacturer: LAPP
• Manufacturer Part Number: 701705
• Product Type: VFD
• Attributes: Multi-Conductor

Conductors:

• Conductor Size: 6 AWG
• Number Of Conductors: 4
• Conductor Type: Stranded
• Conductor Material: Tinned Or Coated Copper
• Earth/Ground Wires: Yes
• Number of Ground Wires: 1 Wire

Shielding:

• Shield: Shielded
• Shield Type: Braid

Insulation & Jacket:

• Insulation: XLPE (plus)
• Jacket Material: Thermoplastic Elastomer (TPE)
• Jacket Color: Black
• Nominal OD (MM): 23.2

Electrical & Temperature Ratings:

• Voltage Range: 1KV
• Temperature: -13°F to +194°F -25°C to +90°C
• Dynamic Temperature Rating: -13°F to +194°F -40°C to +90°C

Construction Notes:

• Armor: No
• Composite: No

Standards & Approvals:

• Standards/Approvals: UL Approved
• Standards/Approvals: CE Approved
• Standards/Approvals: XHHW
