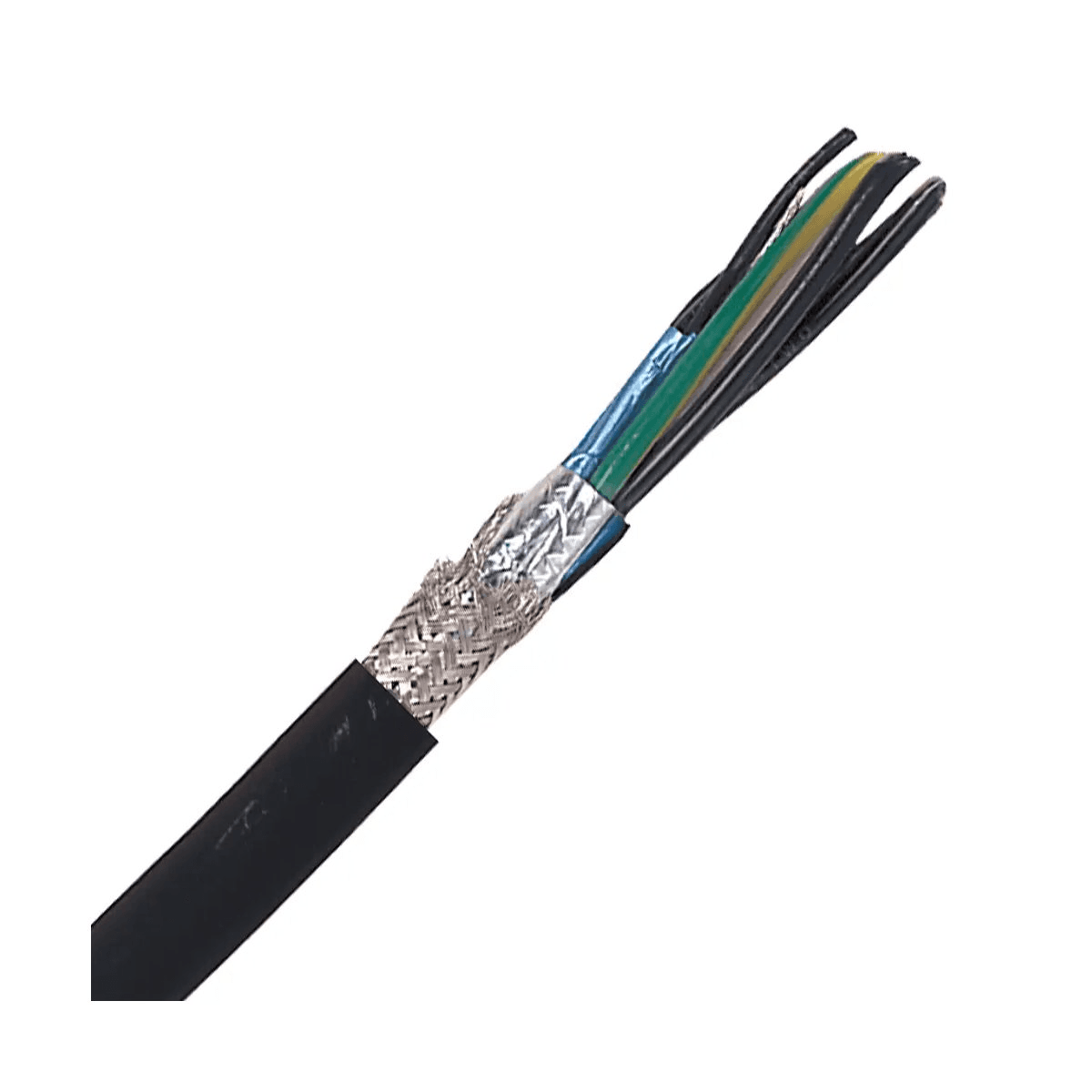

LAPP Group 701711, Power Cable

Part Number: 701711

LAPP 701711 is a Shielded VFD power Cable built for demanding motor drive applications where electrical noise control and reliable power delivery are critical. It features Stranded Conductors in a composite construction with 14 AWG 4 + (18 AWG) and XLPE (plus) Insulation rated for 3000V. A Thermoplastic Elastomer (TPE) Jacket and Braid Shield support robust performance, with a nominal OD (IN) of 0.486. It is UL Approved and CE Approved, with UL 1277 and XHHW listed in standards/approvals.

Construction:

• Product type: VFD
• Composite: Yes
• Armor: No
• Number Of Conductors: 14: 4 + (18 AWG)
• Conductor Stranding: Stranded
• Conductor Material: Tinned Or Coated Copper
• Earth/ground wires: Yes
• Number of ground wires: 1 Wire

Shielding:

• Shielding: Shielded
• Shield Type: Braid

Materials:

• Insulation: XLPE (plus)
• Jacket Material: Thermoplastic Elastomer (TPE)

Electrical:

• Voltage: 3000V

Dimensions:

• Nominal OD (IN): 0.486

Temperature Ratings:

• Dynamic Temperature Rating: -13°F to +194°F -40°C to +90°C
• Static Temperature Rating: -13°F to +194°F -25°C to +90°C

Standards & Approvals:

• Standards/approvals: UL Approved, CE Approved, XHHW
• UL style / standard: UL 1277
