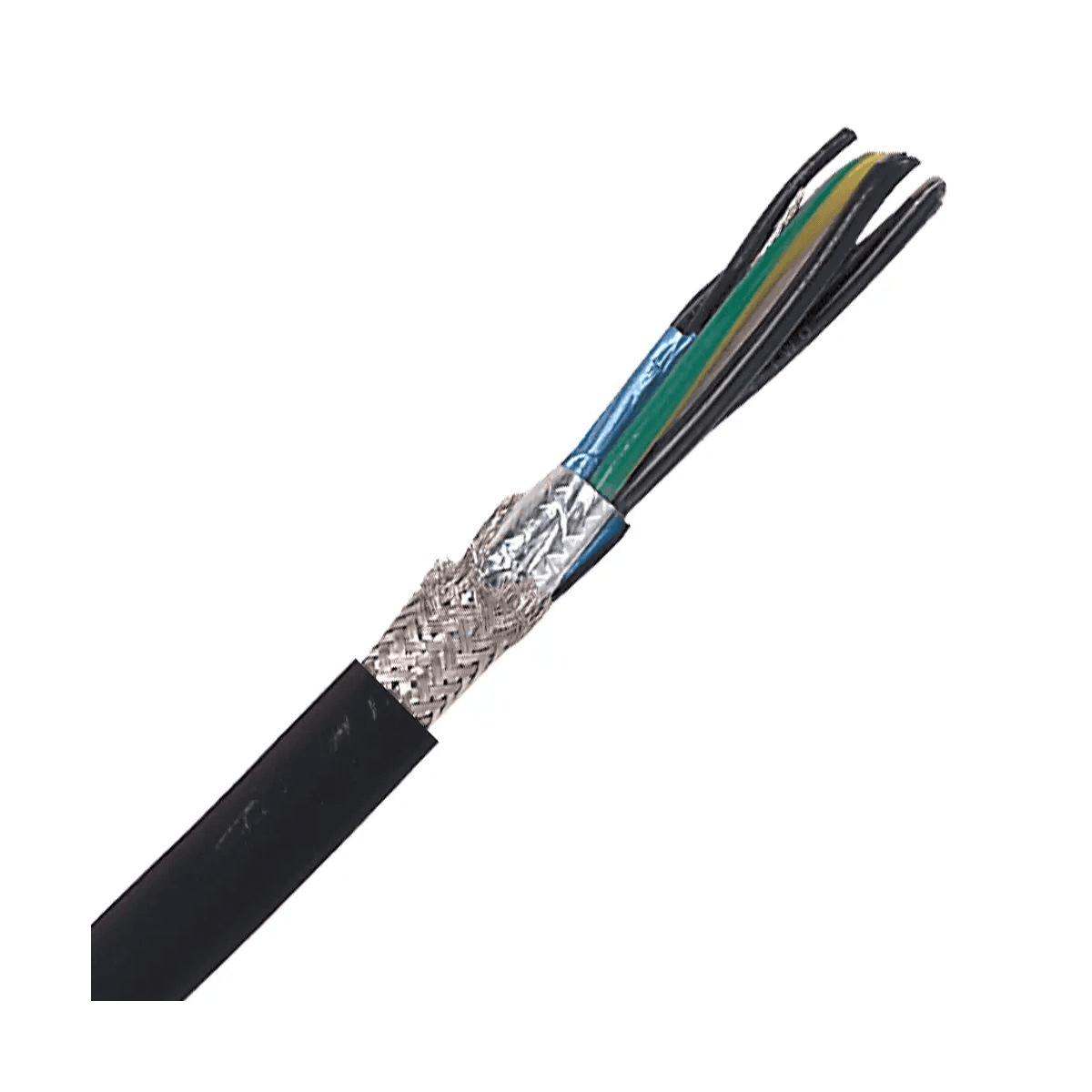

LAPP Group 701712, Power Cable

Part Number: 701712

LAPP 701712 is a Shielded, Stranded power Cable designed for demanding installations such as VFD applications. It features 12 AWG Conductors in a 4 + (18 AWG) composite construction with XLPE (plus) Insulation and a Thermoplastic Elastomer (TPE) Jacket. Rated for 3000V, it supports operation from -13°F to +194°F in both dynamic and static use. This Cable is UL Approved and CE Approved, and is built to UL 1277 and XHHW requirements.

Conductor Construction:

• Manufacturer part number: 701712
• AWG/gauge: 12
• Number Of Conductors: 4 + (18 AWG)
• Conductor Type: Stranded
• Conductor Stranding: Stranded
• Conductor Material: Tinned Or Coated Copper
• Composite: Yes

Shielding:

• Shielding: Shielded
• Shield: Shielded
• Shield Type: Braid

Insulation & Jacket:

• Insulation: XLPE (plus)
• Insulation Material: XLPE-cross-linked polyethylene
• Jacket Material: Thermoplastic Elastomer (TPE)
• Nominal OD (in): 0.533

Electrical Ratings:

• Voltage: 3000V

Temperature Ratings:

• Dynamic Temperature Rating: -13°F to +194°F -40°C to +90°C
• Static Temperature Rating: -13°F to +194°F -25°C to +90°C

Grounding & Armor:

• Earth/ground wires: Yes
• Number of ground wires: 1 Wire
• Armor: No

Standards & Approvals:

• Standards/approvals: UL Approved, CE Approved, XHHW
• UL style / standard: UL 1277

Product Type:

• Product type: VFD
