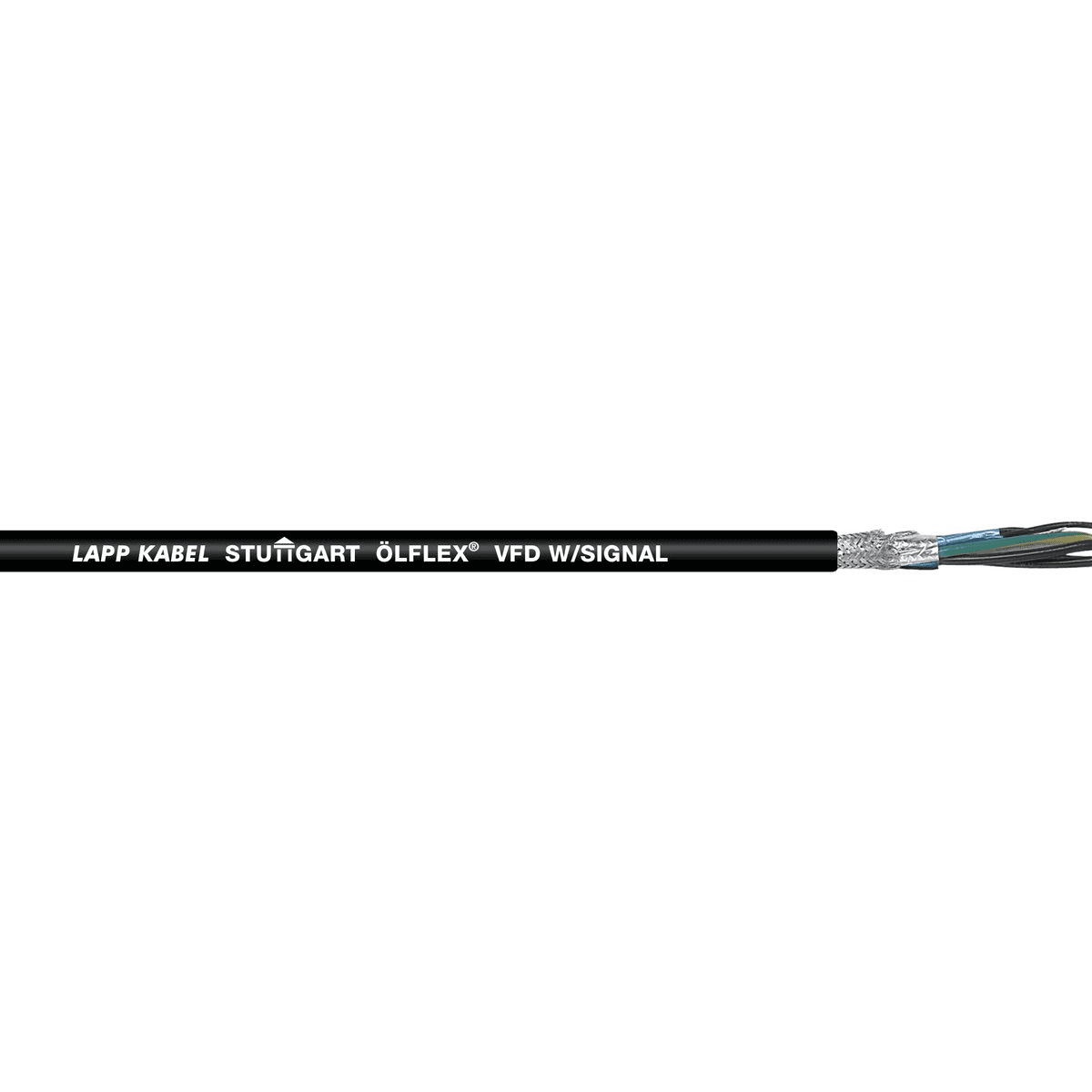

LAPP Group 7410044, Flexible VFD Cable 4C 10 AWG Black Polymer Jacket

Part Number: 7410044

LAPP Group 7410044 is a flexible VFD Cable built for reliable drive-to-motor connections in demanding industrial environments. It features the LAPP Surge Guard Insulation System to help reduce Cable failures caused by electrical disturbances, along with double shielding for added protection. This multi-Conductor design uses 10 AWG Stranded Conductors with a black thermoplastic polymer Jacket and a nominal OD (MM) of 18.9. It’s well-suited for applications such as web presses, HVAC, and other on/off systems using a VFD drive and motor, including setups with temperature sensors or brake mechanisms.

Manufacturer Information:

• Manufacturer: LAPP
• Manufacturer Part Number: 7410044

Conductor & Construction:

• AWG/Gauge: 10
• Number Of Conductors: 4
• Conductor Stranding: Stranded
• Attributes: Multi-Conductor
• Composite: Yes
• Armor: No

Colors & Identification:

• Conductor Color: Black with white printing plus green/yellow ground
• Jacket Color: Black

Insulation, Jacket & Diameter:

• Insulation: LAPP Surge Guard Insulation System
• Jacket Material: Thermoplastic Polymer
• Nominal OD (MM): 18.9

Shielding:

• Shield: Shielded
• Shield Type: Braid over Foil Shield
• Double-Shielded for extra protection

Electrical & Temperature Ratings:

• Voltage Range: 600V
• Temperature Range: -13°F to +194°F -25°C to +90°C
• Dynamic Temperature Rating: -13°F to +221°F -25°C to +105°C
• Corona Inception Voltage is 2900 volts

Approvals & Standards:

• Tray Ratings: UL TC-ER
• UL Style / Standard: UL 1063 UL 1277 UL 2277
• UL TC-ER & c(UL) CIC TC approved

Applications:

• VFD drive and motor connections with temperature sensors or brake mechanisms
• Contains pair for brake or temperature sensor
• Web presses
• HVAC
• Any on/off applications using a VFD drive and motor

Weight:

• Weight LBS/MFT: 406
