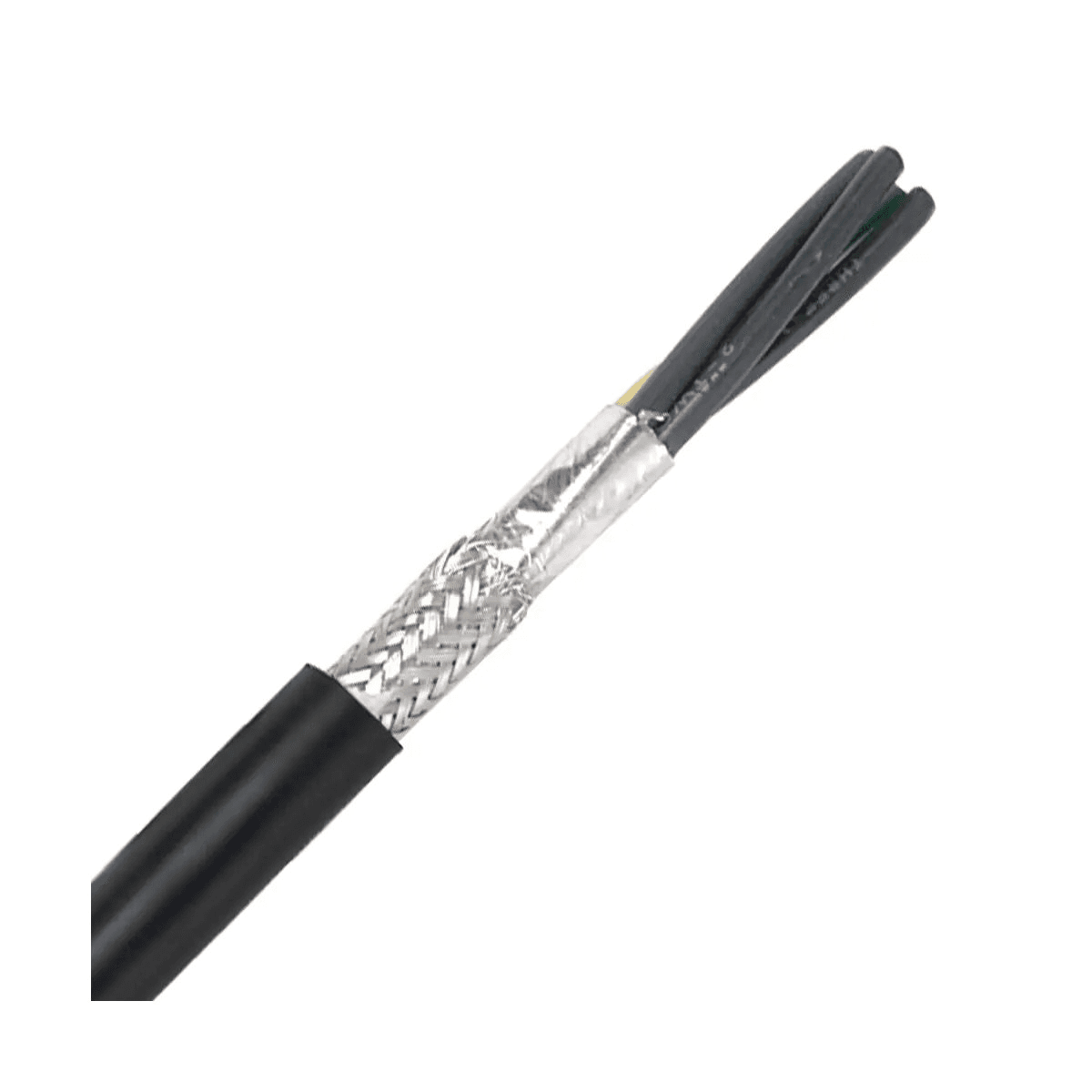

LAPP Group 771404, Continuous Flex VFD Cable 4C 14 AWG Shielded

Part Number: 771404

LAPP Group 771404 is a Continuous Flex VFD Cable designed for demanding Cable track applications where reliable motion performance is required. It features 4 Conductors of 14 AWG Stranded construction and is double-Shielded with Tape & Braid to help reduce electrical noise in drive systems. Built with a PVC Jacket and rated 1000V, it supports a wide operating range of -40°F to +221°F (-40°C to +105°C). It also carries UL TC-ER tray ratings and multiple approvals for industrial installations.

Key Features:

• Continuous Flex rated for Cable track applications
• Double-Shielded with Tape & Braid for added protection
• Tray rated UL TC-ER

Manufacturer Information:

• Manufacturer: LAPP
• Manufacturer Part Number: 771404

Electrical:

• Voltage: 1000V

Conductors:

• AWG/Gauge: 14
• Number Of Conductors: 4
• Conductor Stranding: Stranded
• Conductor Material: Tinned Or Coated Copper
• Earth/Ground Wires: No

Shielding:

• Shielding: Tape & Braid
• Shield: Shielded
• Shield Type: Foil Shield AL Mylar

Materials & Construction:

• Jacket Material: PVC
• Insulation Material: TPE-thermoplastic elastomer
• Nominal OD (in): 0.5
• Armor: No
• Composite: No

Temperature:

• Temperature Range: -40°F to +221°F -40°C to +105°C

Ratings & Approvals:

• Tray Ratings: UL TC-ER
• Standards/Approvals: UL Approved
• Standards/Approvals: CE Approved
• Standards/Approvals: UL WTTC

Type:

• Product Type: Control
