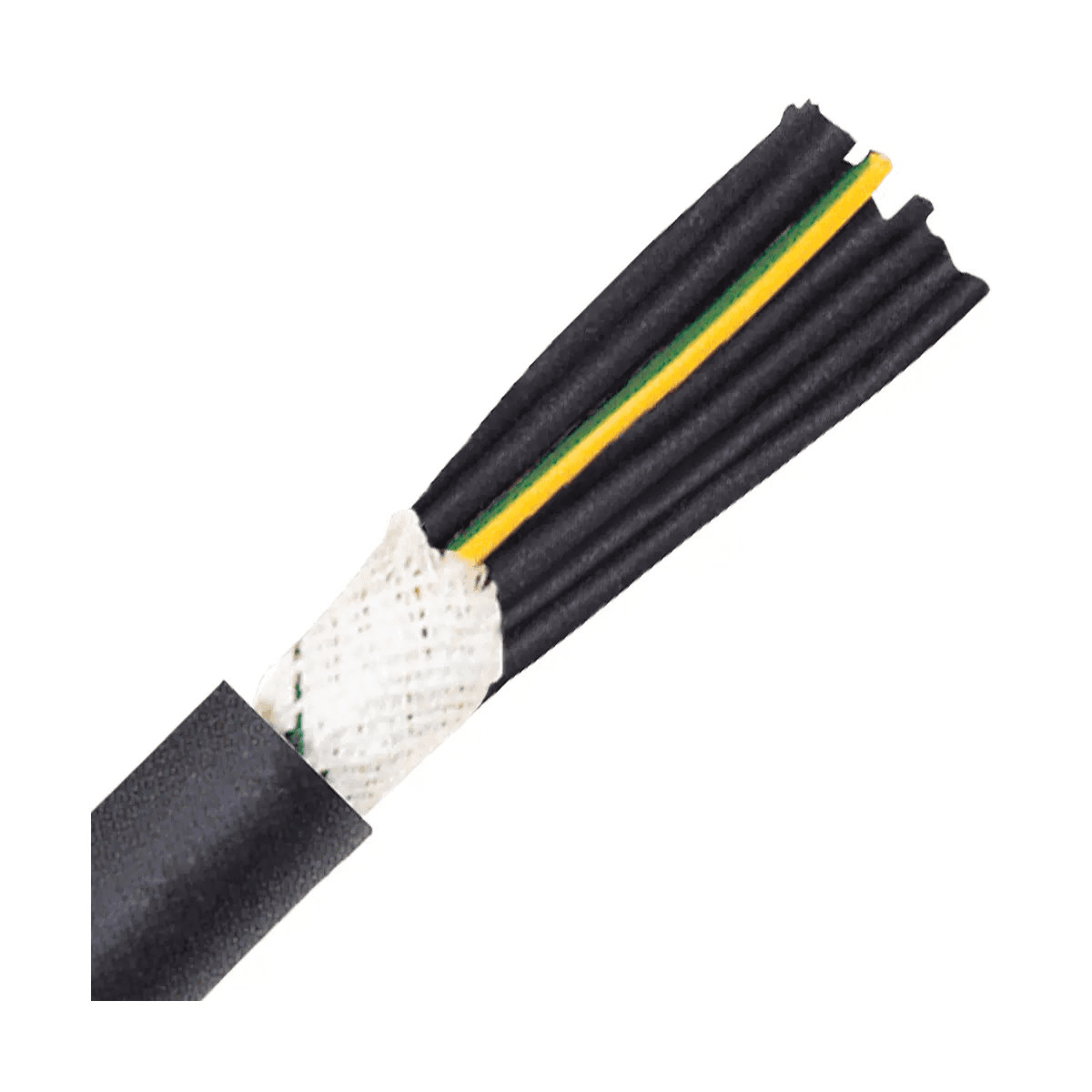

LAPP Group 8910044, OLFLEX FD 890 Continuous Flex Cable 10 AWG 4C 600V

Part Number: 8910044

LAPP Group 8910044 OLFLEX FD 890 Continuous Flex Cable is a flexible, continuous-motion power and Control Cable built for demanding industrial environments. It features 10 AWG Stranded Bare Copper Conductors in a 4 Conductor, Unshielded construction with a durable PVC Jacket for long service life. Rated 600V and designed to meet Oil Res I/II, it also passes UL 1277 impact and crush tests for added mechanical toughness. The pressure-extruded Jacket supports precise connectorization, and the Cable is rated for 23°F to +194°F -5°C to +90°C operation.

Part Number & Type:

• Manufacturer: LAPP
• Manufacturer Part Number: 8910044
• Product Type: Flex cont

Electrical Ratings & Compliance:

• Voltage: 600V
• Standards: UL/CSA/CE
• RoHS Compliant: Yes

Construction:

• Number Of Conductors: 4
• Conductor Size: 10 AWG
• Conductor Stranding: Stranded
• Conductor Material: Bare Copper
• Shield: Unshielded
• Earth/Ground Wires: No

Materials & Dimensions:

• Insulation Material: PVC-polyvinyl chloride
• Jacket Material: PVC
• Nominal OD (in): 0.64

Temperature Range:

• Temperature: 23°F to +194°F -5°C to +90°C

Performance Features:

• Meets Oil Res I/II
• Resistant to harsh environments for extended service life
• Pressure-extruded Jacket supports precision connectorization
• Passes UL 1277 impact and crush tests
