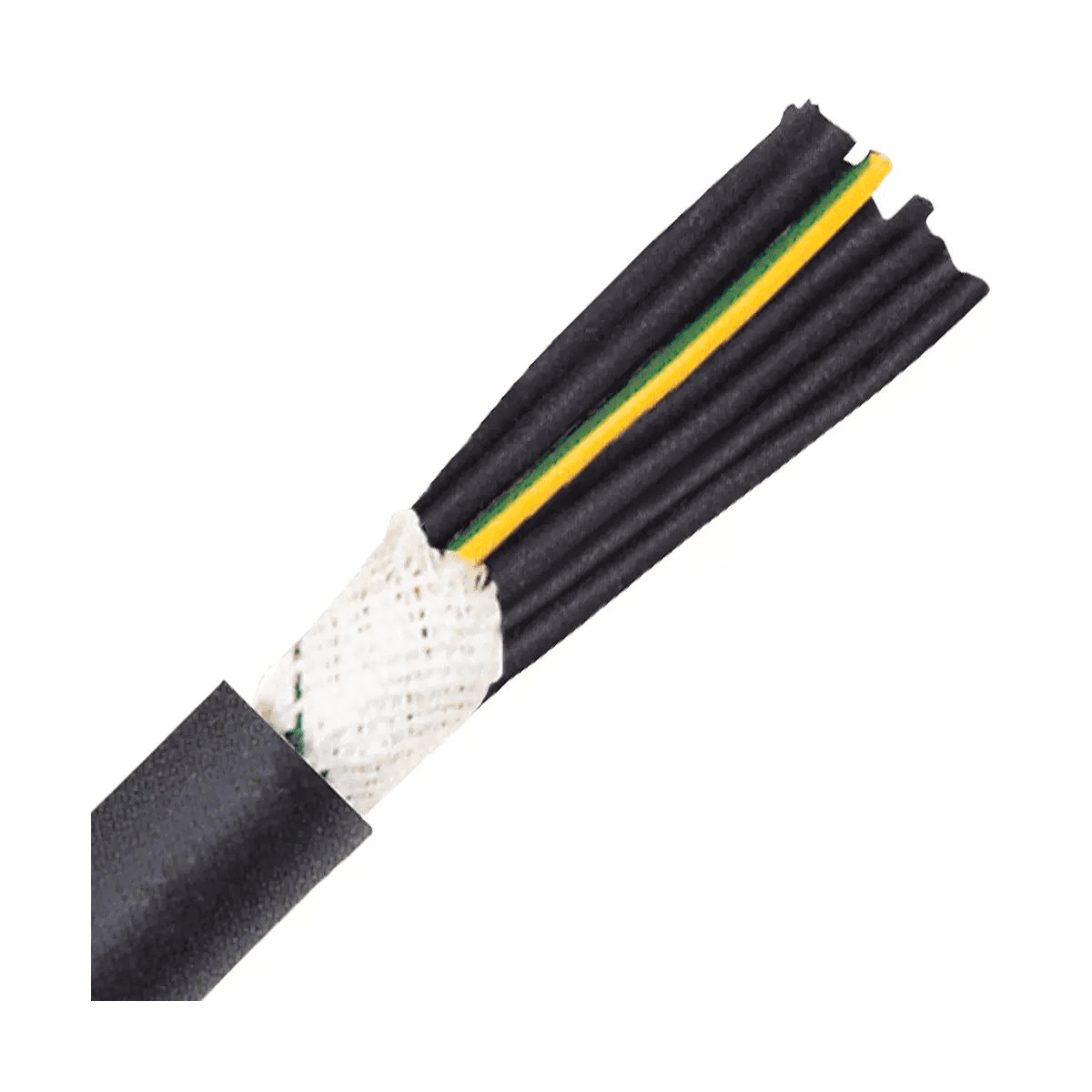

LAPP Group 8914044, OLFLEX FD 890 14 AWG 4C 600V Flex Cable

Part Number: 8914044

LAPP 8914044 OLFLEX FD 890 is a flexible continuous-duty Control Cable built for demanding motion applications and long service life in harsh environments. It features 14 AWG Stranded Bare Copper Conductors in a 4 Conductor, Unshielded construction with a PVC Jacket for reliable performance. Rated 600V and designed to meet Oil Res I/II, it also passes UL 1277 impact and crush tests for added durability. A pressure-extruded Jacket supports precise connectorization, with a nominal OD (IN) of 0.456 and an operating Temperature Range of 23°F to +194°F -5°C to +90°C.

Key Features:

• Meets Oil Res I/II
• Resistant to harsh environments for extended service life
• Pressure-extruded Jacket for precision connectorization
• Passes UL 1277 impact and crush tests

Electrical Ratings & Compliance:

• Voltage: 600V
• Standards: UL/CSA/CE
• RoHS compliant: Yes

Construction:

• AWG/gauge: 14
• Number Of Conductors: 4
• Conductor Size: 14 AWG
• Conductor Type: Stranded
• Conductor Material: Bare Copper
• Shield: Unshielded
• Earth/ground wires: No

Materials:

• Insulation Material: PVC-Polyvinyl Chloride
• Jacket Material: PVC

Dimensions & Temperature:

• Nominal OD (IN): 0.456
• Temperature: 23°F to +194°F -5°C to +90°C

Product Type:

• Product type: Flex cont
