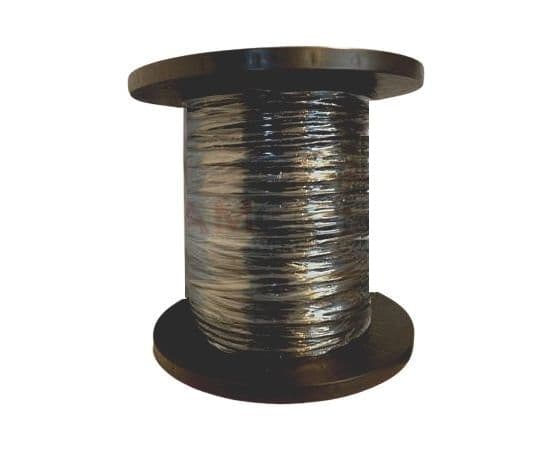

Magnet Crane type W Cable 2 AWG 2C
Description
Magnet Crane type W Cable has 2 conductors, AWG Gauge 2, with a stranded copper conductor, Ethylene-Propylene rubber insulation, and a CPE outer jacket with permanent surface marking. It is rated 600/2000 Volts and is MSHA accepted.
Applications
- Use in magnet cranes where portable electrical equipment is required.
- Use in other temporary or permanent portable electrical equipment installations.
Specifications
| Attribute | Value |
|---|---|
| # of Conductors | 2 |
| Conductor Gauge Size | 2 AWG |
| Conductor Type | Stranded Copper |
| Insulation Material | EPR |
| Jacket Material | CPE |
| Conductor Material | Copper |
| Temperature | 90° C |
| Voltage | 600/2000 Volts |
| Approvals | MSHA - RoHs |
| O.D. (Inches Nom.) | 1.25 |
| Item Type | Magnet Crane type W Cable |
| Weight /LBS per 1000FT | 1015 |
| Strand Count | 133 |
