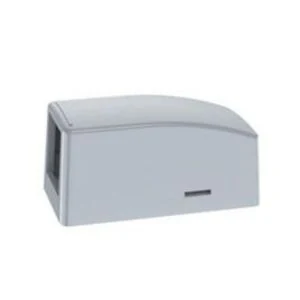

Panduit CBX1IG-A, Surface Mount Box 1 Port International Gray Adhesive Backed

Panduit CBX1IG-A is a Mini-Com surface mount box for a single module, supplied with adhesive backing and finished in international gray. It gives an outlet where there is no wall box available - a desk edge, a furniture panel, a column, a machine enclosure - and accepts any Mini-Com Module for shielded and unshielded twisted pair, fiber optic or audio/video, which snaps in and out from the front so moves, adds and changes never touch the cable. Cable enters through side or rear knockouts or the opening in the center of the base. The box ships unloaded, with modules selected per port, and is listed to UL 1863 and UL 2043.

Panduit CBX1IG-A Technical Specs

Product Classification

Product type	Surface mount box
Number of ports	1
Factory loaded	No
Module compatibility	Mini-Com Modules

Mounting & Cable Entry

Mounting	Surface mount
Adhesive backing	Yes, supplied
Cable entry	Side knockouts, rear knockouts, center base opening
Optional accessory	Magnet (CBM-X)

Color & Finish

Color	International Gray

Identification

Label type	Optional adhesive label
Label included	No

Compliance & Certifications

UL 1863	Yes
UL 2043	Yes
RoHS Compliant	Yes
UNSPSC code	43223300

Packaging

Sold as	Each

Panduit CBX1IG-A Applications

• Adds a single data outlet to desks, benches, casework and partitions with no back box behind them.
• Lands a surface-run drop from raceway or an overhead pathway at a finished, serviceable jack.
• Suits retrofit and tenant work where a finished wall cannot be cut for a flush outlet.
• Matches gray raceway, gray furniture and equipment-room finishes where a white or black box would stand out.
