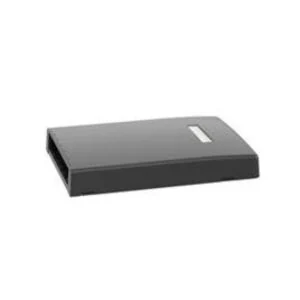

Panduit CBXF6BL-AY, Surface Mount Box 6 Port Black, Fiber Spool

Panduit CBXF6BL-AY is a six-port Mini-Com multimedia surface mount box in black, sized for mixed copper and fiber drops at a single outlet. A built-in fiber spool secures and stores up to 78.8 feet (24 meters) of buffered fiber optic cable inside the box, keeping the service loop at the termination instead of the closet. Cable tie slots dress the cable in, side and rear knockouts plus a bottom opening give entry, and a tamper-resistant screw closes the cover. Mounting screws, adhesive backing, cable ties and a label holder with screw cover are supplied. It ships unloaded.

Panduit CBXF6BL-AY Technical Specs

Product Classification

Product type	Surface mount box
Product line	Mini-Com
Application	Multimedia (copper and fiber)
Number of ports	6
Gang	1
Loaded	No
UNSPSC code	43223300

Fiber Management

Built-in fiber spool	Yes
Buffered fiber storage	Up to 78.8 ft. (24m)
Cable tie slots	Yes

Color & Identification

Color	Black
Label holder / screw cover	Included
Optional adhesive labels	Available

Mounting & Cable Entry

Mounting	Surface mount
Mounting methods	Supplied mounting screws or adhesive tape
Cable entry	Side and rear knockouts; opening in bottom of base
Tamper-resistant screw	Yes

Included Components

Mounting screws	Yes
Adhesive backing	Yes
Cable ties	Yes
Label holder / screw cover	Yes

Panduit CBXF6BL-AY Applications

• Lands a six-port copper and fiber outlet on a wall, column or piece of furniture with no in-wall box available.
• Brings fiber to the desk or zone enclosure, with the spool taking up the buffered service loop on site.
• Blends into black racks, AV walls, studio and stage furniture where an ivory or white box would stand out.
• Secures shared or public-area outlets with the tamper-resistant cover screw.
