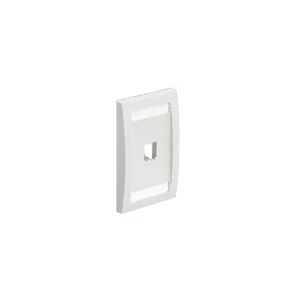

Panduit CFPE1WHY, Mini-Com Executive Faceplate 1 Port Single Gang White

Panduit CFPE1WHY is a single-port Mini-Com Executive Series faceplate in white for a standard single-gang opening. It takes one Mini-Com Module of any type, copper STP or UTP jack, fiber adapter or audio/video module, which snaps in and out from the front for moves, adds and changes. The Executive Series frame carries a raised rail around its outer edge for a finished look in offices and public spaces, and a label pocket with label and label cover is included so the port can be identified at the outlet. The plate ships unloaded; order the module separately.

Panduit CFPE1WHY Technical Specs

Product Classification

Product type	Mini-Com Executive Series faceplate
Number of ports	1
Gang	Single gang
Mounting	Flush mount
Loaded	No

Design & Construction

Frame style	Raised rail outer edge
Wall opening	NEMA standard single gang

Color & Identification

Color	White
Label pocket	Yes
Labels and label covers included	Yes

Compatibility

Accepts	Mini-Com Modules
Module types	STP and UTP copper, fiber optic, audio/video
Front removable modules	Yes

Compliance & Certifications

RoHS Compliant	Yes
UNSPSC code	43223300

Panduit CFPE1WHY Applications

• Puts a single network or voice drop at a desk, reception counter or conference wall where the plate is in plain sight.
• Finishes a one-drop office or classroom outlet that must be labeled by room, circuit or port number.
• Serves as the wall end of a fiber-to-the-desk run when a Mini-Com LC or SC adapter is fitted in place of a copper jack.
• Allows a service change later, since the module releases from the front without disturbing the plate or the wall box.
