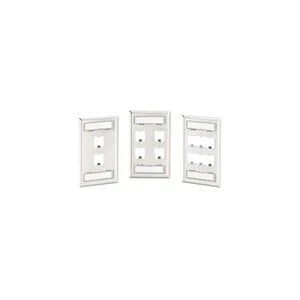

Panduit CFPL6SY, Faceplate 6 Port Single Gang Stainless Steel

Panduit CFPL6SY puts six Mini-Com ports into a single gang opening on an impact resistant 304 stainless steel plate, which is the densest way to finish one standard wall box without moving to a two-gang cut-in. It ships unloaded and accepts any mix of Mini-Com Modules, UTP and STP copper, fiber optic or audio/video, each snapping in from the front and releasing again when the drop changes. Stainless suits light industrial and high-traffic areas, and the included label and label cover give each of the six ports a permanent, readable identifier.

Panduit CFPL6SY Technical Specs

Product Classification

Product type	Faceplate
Series	Mini-Com Classic
Number of ports	6
Loaded	No

Mounting

Mounting	Flush mount
Gang	1 (single gang)

Materials & Construction

Material	304 stainless steel
Impact resistant	Yes

Color & Finish

Color	Stainless steel

Module Compatibility & Identification

Accepts Mini-Com modules	Yes
Module types accepted	UTP and STP copper, fiber optic, audio/video
Module removal	Snap in and out for moves, adds and changes
Label included	Yes
Label cover included	Yes
Replacement label/label covers	Available

Compliance & Certifications

Labeling standard	ANSI/TIA-606-B
RoHS Compliant	Yes
UNSPSC code	43223300

Packaging

Sold as	Each

Panduit CFPL6SY Applications

• Delivers six drops at one single gang box where the wall is already cut and a second gang is not an option.
• Serves shop floors, corridors and equipment rooms where stainless takes the knocks that crack a plastic plate.
• Consolidates voice, data, fiber and AV feeds for a single desk, kiosk or machine into one identified outlet.
• Supports phased fit-out: mount the plate during rough finish, add modules as services are commissioned.
