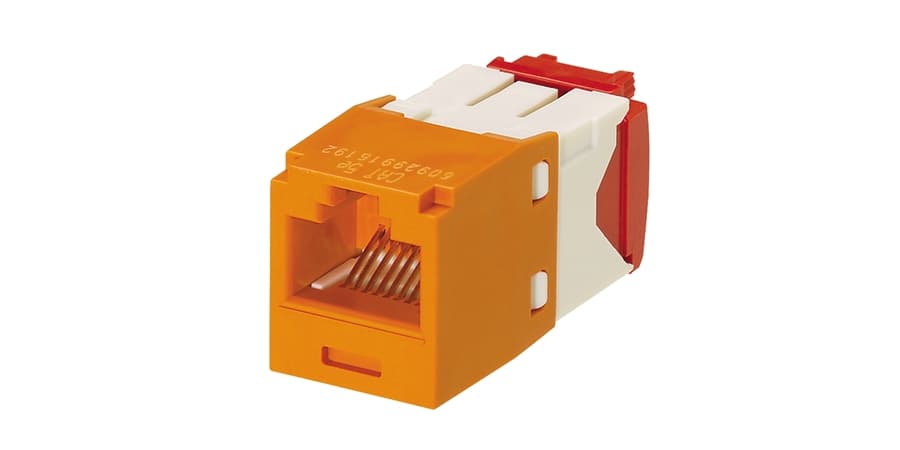

Panduit CJ5E88TGOR, Jack Module Cat 5E Unshielded IDC 1 Port Orange

Panduit CJ5E88TGOR is a Cat 5E unshielded modular UTP jack module designed for clean RJ45 network terminations. This 1 port orange module uses an 8-wire RJ45 configuration with support for T568A and T568B wiring. It features IDC - Press-Fit termination and is built with a polycarbonate body, phosphor bronze contacts, and a gold-plated contact finish. CJ5E88TGOR is suitable for use with the TX5500 4-pair 26 to 22 AWG UTP Copper Cabling System.

Panduit CJ5E88TGOR Technical Specs

Product Identification & Type

Product type	Jack Module
Module type	Modular UTP Jack
Category	Cat 5E
Shield Type	Unshielded
Color	Orange
Brand	Mini-Com TX-5E Jack

Connectivity & Termination

Configuration	8-Wire RJ45
Connection type	8P8W RJ45
Number of ports	1 Port
Wiring	T568A; T568B
Termination	IDC
Connection	IDC - Press-Fit

Materials & Construction

Body material	Polycarbonate
Contact material	Phosphor Bronze
Contact finish	Gold-Plated

Dimensions

Depth	1.5 in.
Length	1-1/2 in.
Height	0.71 in.
Width	0.62 in.

Environmental & Mechanical Ratings

Temperature rating	-10 to +75 C
Operating temperature - minimum	14 Degrees Fahrenheit
Maximum operating temperature	167 Degrees Fahrenheit
Mounting	Faceplate, Adapter, Box

Compliance & Certifications

Special rating	IEEE; UL; IEC

Panduit CJ5E88TGOR Applications

• Install it into a faceplate, adapter, or box to create a finished RJ45 network outlet with a clean, modular appearance.
• Use T568A or T568B wiring schemes to match site standards during network moves, adds, and changes.
• Rely on IDC - Press-Fit termination to streamline field terminations when building or updating network connections.
• Pair it with the TX5500 4-pair 26 to 22 AWG UTP Copper Cabling System for consistent component selection within that cabling system.
