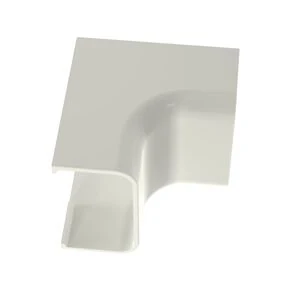

Panduit ICF10IW-X, LD10 Inside Corner Fitting Off White, Pack of 10

Panduit ICF10IW-X is the inside corner fitting for Pan-Way LD10 latching raceway. It carries a run through an inside wall angle while holding a 1 in. bend radius, which is the whole point: a bare corner crushes twisted pair and fiber tighter than their published limits allow, and the fitting will not let that happen. It snaps onto the LD10 base, so no adhesive and no separate fastener is needed at the turn. The body is molded ABS in Off White to match the LD10 system, meets TIA/EIA standards, is UL 5A listed and carries UL94V-0 and FT4 flammability ratings. Ten fittings come in a pack.

Panduit ICF10IW-X Technical Specs

Product Classification

Product type	Inside corner fitting
Product line	Pan-Way LD surface raceway
Compatible raceway	LD10
Latching	Yes
Component category	Fittings
Type	Non-metallic

Performance & Installation

Bend radius maintained	1 in.
Installation	Snap-on

Materials & Construction

Material	ABS plastic
Flammability rating	UL94V-0
FT4	Yes

Color & Finish

Color	Off White
Panduit color code	IW

Compliance & Certifications

TIA/EIA standards	Meets
UL 5A listed	Yes
UL compliant	Yes
RoHS Compliant	Yes
UNSPSC code	39131709

Packaging

Standard package quantity	10 fittings
Sold as	Pack of 10

Panduit ICF10IW-X Applications

• Routes an LD10 run around an inside corner without dropping below the 1 in. bend radius Category cabling needs.
• Finishes perimeter cable paths in schools, hospitals and offices where surface raceway stands in for in-wall conduit.
• Snaps onto latching LD10 base that is already installed, so a corner can be added to a live run.
• Matches Off White LD10 components when extending or repairing an existing installation.
