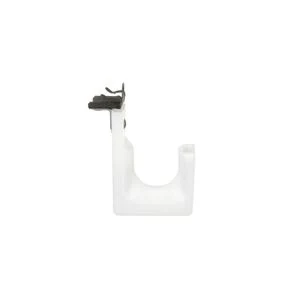

Panduit JP2HBC25RB-L20, J-Hook 2 in. Bundle with Rotating Hammer-On Beam Clamp

Panduit JP2HBC25RB-L20 pairs a J-PRO cable support hook with a hammer-on beam clamp for steel in the 1/8 in. to 1/4 in. (3.2mm to 6.4mm) flange range. The clamp drives on with a hammer, so a run of hooks goes up without drilling, tapping or loose fasteners, and the head rotates a full 360° to line the hook up with the pathway rather than the beam. The hook itself holds 1 in. of bend radius control in both planes and takes a 2.00 in. (50.8mm) bundle, in black Nylon 6.6 with metal attachments.

Panduit JP2HBC25RB-L20 Technical Specs

Product Classification

Product type	J-hook cable support
Product line	J-PRO
Attachment method	Hammer-on beam clamp
Non-metallic hook body	Yes

Capacity & Bend Radius

Maximum bundle capacity	2.00 in. (50.8mm)
Bend radius control	1 in., horizontal and vertical
Wide cable support base	Yes

Beam Clamp & Mounting

Flange thickness range	1/8 in. to 1/4 in. (3.2mm to 6.4mm)
Rotation	360°
Installation	Hammer-on, no drilling or separate fasteners
Pre-riveted assembly	Yes
Cable tie channel	Yes, accepts 3/4 in. Tak-Ty™ cable ties

Materials & Finish

Material	Nylon 6.6
Metal attachments	Yes
Color	Black

Compliance & Certifications

UL 2043	Listed
CAN/ULC S102.2	Listed
Air handling spaces	Suitable
cULus listed	Yes
RoHS Compliant	Yes
UNSPSC code	31162606

Panduit JP2HBC25RB-L20 Applications

• Hangs backbone and horizontal cable from exposed bar joists and purlins in warehouses, gyms and open-ceiling offices.
• Speeds long straight runs where dozens of supports go up per floor and drilling each one is the schedule.
• Angles the hook to the cable path on beams that do not run parallel to the pathway.
• Suits open-plenum spaces above the ceiling where UL 2043 listed supports are called for.
