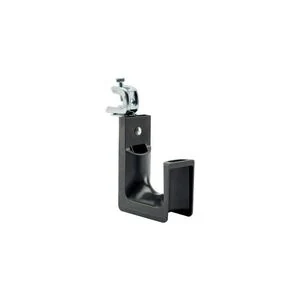

Panduit JP4SBC50RB-X20, J-PRO J-Hook 4 in. Screw-On Beam Clamp, Black

Panduit JP4SBC50RB-X20 is a J-PRO cable support hook that arrives with a screw-on beam clamp already fitted, so a run of communication cable can be hung directly from structural steel with no drilling and no separate mounting kit to specify. The clamp grips flanges up to 1/2 in. (12.7mm) thick and the hook rotates a full 360 degrees on it, so the installer squares the hook to the cable path after the clamp is tightened rather than before. The hook is nylon 6.6 with metal attachments, finished in black, and carries a 4.00 in. (101.6mm) maximum bundle capacity.

Panduit JP4SBC50RB-X20 Technical Specs

Product Classification

Product type	J-hook cable support
Product line	J-PRO cable support system
Type	J-hooks

Capacity & Dimensions

Maximum bundle capacity	4.00 in. (101.6mm)
Beam flange thickness	Up to 1/2 in. (12.7mm)

Mounting & Adjustment

Attachment method	Screw-on beam clamp, supplied fitted
Mounting surface	Structural beam flange
Rotation	360 degrees

Materials & Construction

Hook material	Nylon 6.6
Attachment hardware	Metal
Color	Black

Compliance & Certifications

UL listed	Yes
cULus listed	Yes
RoHS Compliant	Yes
UNSPSC code	31162606

Packaging

Sold as	Each

Panduit JP4SBC50RB-X20 Applications

• Suspends a bundle of communication cable from a structural steel beam flange without drilling the steel.
• Supports cable runs above a ceiling where there is no tray, basket or conduit to follow.
• Lets the installer set the hook angle after the clamp is tight, so the run need not be square to the beam.
• Carries up to a 4 in. bundle on one support point instead of several smaller hangers.
