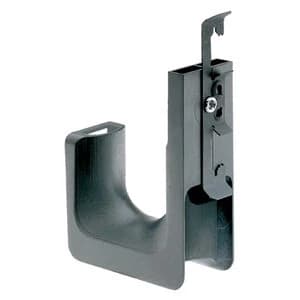

Panduit JP75DW-L20, J-Hook 3/4 in. Bundle with Drop Wire and Rod Clip

Panduit JP75DW-L20 is the small J-PRO cable support hook, sized for a 0.75 in. (19.0mm) bundle, and it ships with the drop wire and threaded rod clip already riveted on. That lets a few Category cables be picked up off existing #12 drop wire or threaded rod up to 3/8 in. (9.5mm) without setting new anchors. The patented profile still gives a full 1 in. of horizontal and vertical bend radius control, and the wide base prevents the pinch points that degrade high-performance cable. Black Nylon 6.6 with metal attachments.

Panduit JP75DW-L20 Technical Specs

Product Classification

Product type	J-hook cable support
Product line	J-PRO
Attachment method	Drop wire and threaded rod clip
Non-metallic hook body	Yes

Capacity & Bend Radius

Maximum bundle capacity	0.75 in. (19.0mm)
Bend radius control	1 in., horizontal and vertical
Wide cable support base	Yes

Mounting & Cable Retention

Drop wire size	#12
Threaded rod diameter	Up to 3/8 in. (9.5mm)
Pre-riveted assembly	Yes
Cable tie channel	Yes, accepts 3/4 in. Tak-Ty™ cable ties

Materials & Finish

Material	Nylon 6.6
Metal attachments	Yes
Color	Black

Compliance & Certifications

UL 2043	Listed
CAN/ULC S102.2	Listed
Air handling spaces	Suitable
cULus listed	Yes
RoHS Compliant	Yes
UNSPSC code	31162606

Panduit JP75DW-L20 Applications

• Supports a small drop of two to four Category cables to a single workstation or camera without a full-size hook.
• Branches off a main pathway where the run splits and the bundle count falls away.
• Hangs from #12 drop wire or threaded rod already installed for the ceiling grid, so no new anchors are set.
• Keeps short plenum runs UL 2043 compliant where tie wire or a bridle ring would not be accepted.
