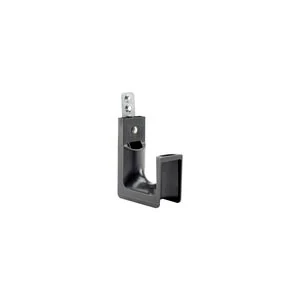

Panduit JP75WP2B-L20, J-Hook 3/4 in. Bundle with Wall Mount Bracket, Black

Panduit JP75WP2B-L20 puts the 0.75 in. (19.0mm) capacity J-PRO hook on a wall mount bracket built for powder-actuated installation, and it will equally take user-supplied fasteners. It is the support to reach for on light wall runs, the last stretch to a single outlet or device where a 2 in. or 4 in. hook is more hardware than the bundle needs. Bend radius control is the same 1 in. in both planes, and the wide support base keeps the cable off a narrow bearing edge. Black Nylon 6.6 with pre-riveted metal attachments.

Panduit JP75WP2B-L20 Technical Specs

Product Classification

Product type	J-hook cable support
Product line	J-PRO
Attachment method	Wall mount bracket
Non-metallic hook body	Yes

Capacity & Bend Radius

Maximum bundle capacity	0.75 in. (19.0mm)
Bend radius control	1 in., horizontal and vertical
Wide cable support base	Yes

Mounting & Cable Retention

Mounting surface	Wall
Installation	Powder actuated, or user-supplied fasteners
Fasteners	Not included, user supplied
Pre-riveted assembly	Yes
Cable tie channel	Yes, accepts 3/4 in. Tak-Ty™ cable ties

Materials & Finish

Material	Nylon 6.6
Metal attachments	Yes
Color	Black

Compliance & Certifications

UL 2043	Listed
CAN/ULC S102.2	Listed
Air handling spaces	Suitable
UNSPSC code	31162606

Panduit JP75WP2B-L20 Applications

• Supports light drops of one to four Category cables along a wall to a workstation, camera or access point.
• Sets quickly on concrete and block with a powder-actuated tool on runs with many supports.
• Finishes a pathway where the bundle has thinned out and a larger hook would be oversized for the work.
• Dresses cable down a telecom closet wall to a backboard or rack entry.
