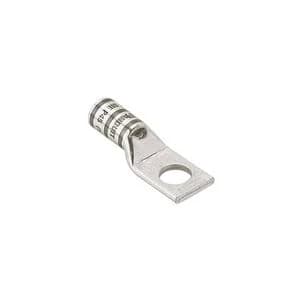

Panduit LCA350-38-X, One-Hole Compression Lug 350 MCM 3/8 in. Stud

Panduit LCA350-38-X is a one-hole standard-barrel compression lug sized for 350 MCM conductor landing on a 3/8 in. stud. At this conductor size the termination is carrying real current, and a crimped barrel spreads the contact over the whole insertion depth instead of concentrating it under a single screw. The inspection window shows the conductor end through the wall of the barrel, so a partial insertion is visible before the crimp is set and cannot be hidden by the finished connection. The lug carries a red color code and is RoHS compliant.

Panduit LCA350-38-X Technical Specs

Product Classification

Product type	Compression lug
Mounting holes	One
Barrel style	Standard barrel
Termination method	Compression (crimp)

Conductor & Stud

Conductor size	350 MCM
Stud hole size	3/8 in.
Inspection window	Yes

Identification & Compliance

Color Code	Red
RoHS Compliant	Yes

Panduit LCA350-38-X Applications

• Terminates 350 MCM service and feeder conductors at a panelboard, disconnect or switchgear stud.
• Lands large-gauge conductors on transformer and generator terminations where a bolted joint is specified.
• Supports utility and industrial distribution work that requires a crimped, inspectable connection on heavy cable.
• Suits equipment grounding conductors at building service entrances where conductor size is set by the feeder.
